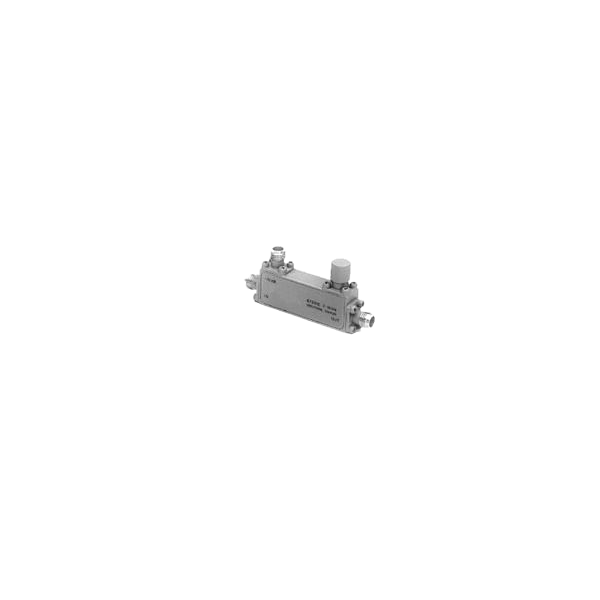

Keysight 87301E | Directional coupler, 2-50 GHz, 2.4 mm sockets

Name: 87301E | Directional coupler, 2-50 GHz, 2.4 mm sockets
Brand: Keysight
SKU: 87301E
Availability: OutOfStock

Manufacturer number: 87301E

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Keysight 87301E | Directional coupler, 2-50 GHz, 2.4 mm sockets

Wide frequency range
High directivity
Compact size
Frequency range: 2 to 50 GHz
Nominal coupling fluctuation: 10 ± 1 dB
Directivity: 13 dB to 26.5 GHz, 10 dB to 50 GHz
Maximum SWR: 1.5 to 26.5 GHz, 1.8 to 50 GHz
Insertion loss: <2.0 dB

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Detaildescription

87301E | Directional coupler, 2-50 GHz, 2.4 mm sockets

The Keysight 87301E is a compact broadband directional sensing coupler for signal monitoring or in combination with a coaxial detector for signal leveling. It is supplied with 2.4 mm sockets.
