Keysight 85520A | Calibration kit, 4-in-1, open, short, load and through,

Name: 85520A | Calibration kit, 4-in-1, open, short, load and through,
Brand: Keysight
SKU: 85520A
Availability: InStock

Manufacturer number: 85520A

1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

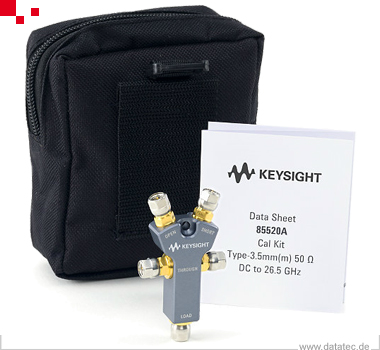

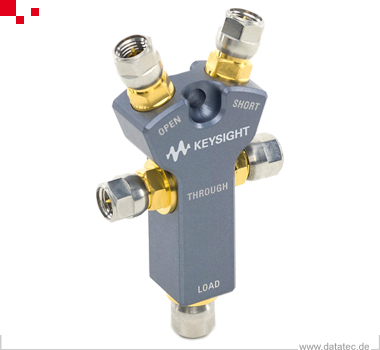

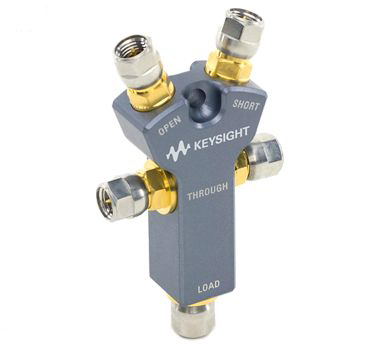

Keysight 85520A | 4 in 1 Open, Short, Load, Through (OSLT) calibration module, 3.5 mm (m), DC to 26.5 GHz, 50 Ω.

4 in 1 Open, Short, Load, Through (OSLT) calibration module DC 26.5 GHz
Plug: 3.5 mm (m)
Resistance: 50 Ω
Open phase inaccuracy: 0… 5 GHz ≤ 1.5 °, 5… 15 GHz ≤ 3.0 °, 15… 26.5 GHz ≤ 4.5 °
Short phase inaccuracy: 0… 5 GHz ≤ 1.0 °, 5… 15 GHz ≤ 2.5 °, 15… 26.5 GHz ≤ 4.0 °
Load return loss: 0… 5 GHz ≥ 42 dB, 5… 15 GHz, ≥ 36 dB, 15… 26.5 GHz, ≥ 32 dB
Dimensions: H 70 mm x W 39 mm x D 14 mm

Description

85520A | Calibration kit, 4-in-1, open, short, load and through,

The Keysight 85520A is a compact 4 in 1 OSLT calibration module.
