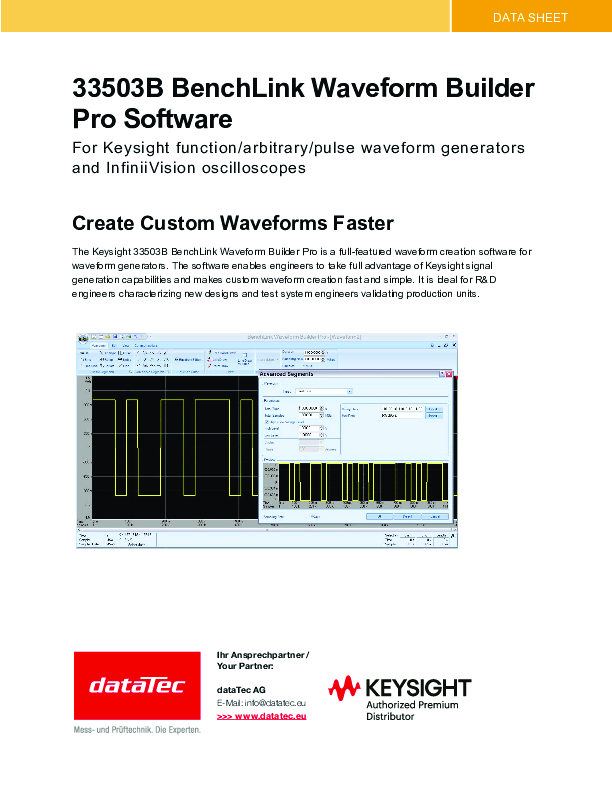

Keysight 33503B BenchLink Waveform Builder Pro software is comprehensive waveform creation software for pulse / function / arbitrary waveform generators. The software enables you to take full advantage of the signal generation capabilities of the Keysight 33200, 33500, and 81100 Series waveform generators, and allows you to create custom signals quickly and easily
The BenchLink Waveform Builder is based on Microsoft Windows and provides user-friendly creation tools such as an equation editor, math and drawing tools to create custom signals with a library of built waveforms from which you can choose. The software also offers a waveform sequencer, filters and window functions that allow you to easily modify and further define your waveform.
- The library offers quick and easy access to common signals (sine, square, triangle, ramp, pulse, exponential) as well as complex signals
- Freehand, dot and line drawing modes for creating your own shapes
- Use the equation editor to create waveforms with exact polynomials
- The Sequencing Editor allows you to create and arrange compound waveforms to optimize your design
- Filter and window functions enable smooth transitions between waveforms
- With the fast Fourier transformation (FFT) you can observe the frequency characteristics of your signals
- With the help of CCDF curves (Cumulative Distribution Function) you can display the performance characteristics of your signals
The BenchLink Waveform Builder Pro software supports the following Keysight instruments:
- 33600A Series Trueform waveform generators, 80 & 120 MHz
- 33500B Series waveform generators, 20 & 30 MHz
- 33210A, 33220A, 33250A function / arbitrary waveform generators
- 33521A, 33522A function / arbitrary waveform generators
- 81150A, 81160A, 81180A pulse / function / arbitrary noise generators
- M8190A arbitrary waveform generator
- 3000 and 4000 X-Series InfiniiVision oscilloscopes
- U2761A USB modular function generator
