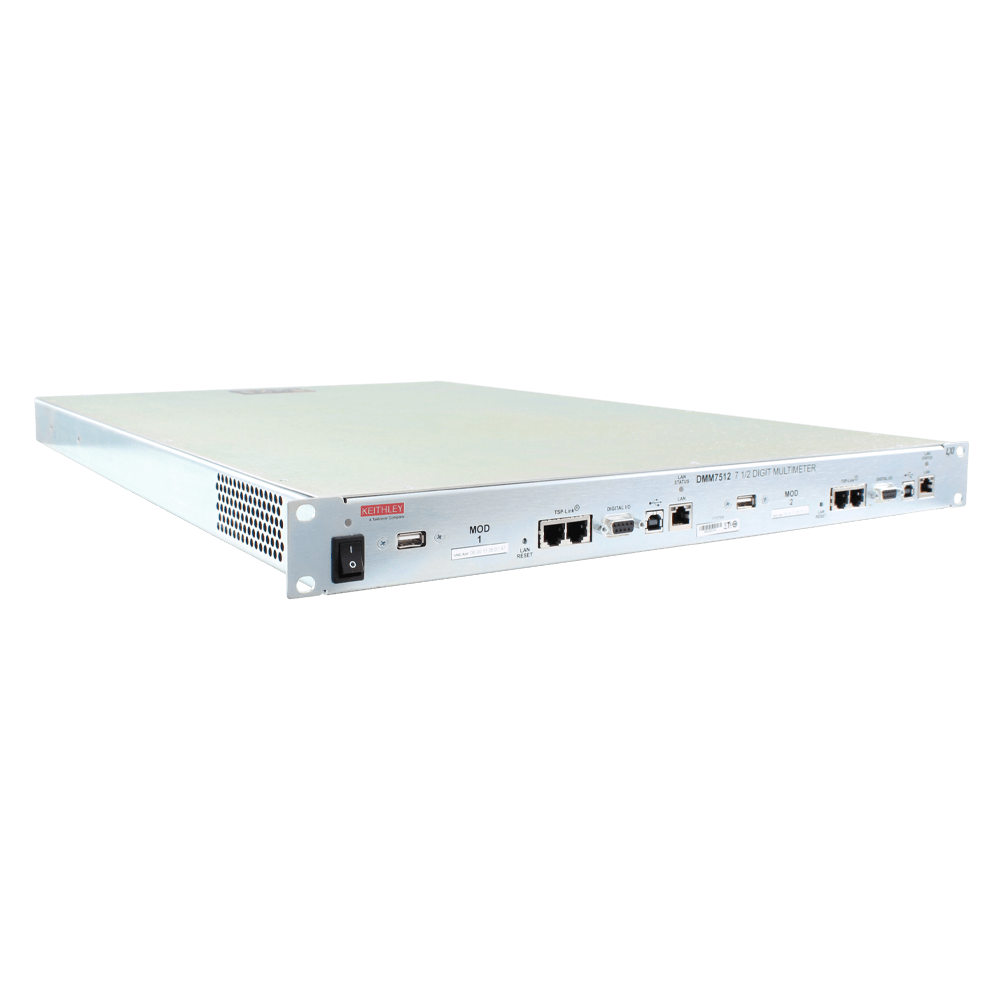

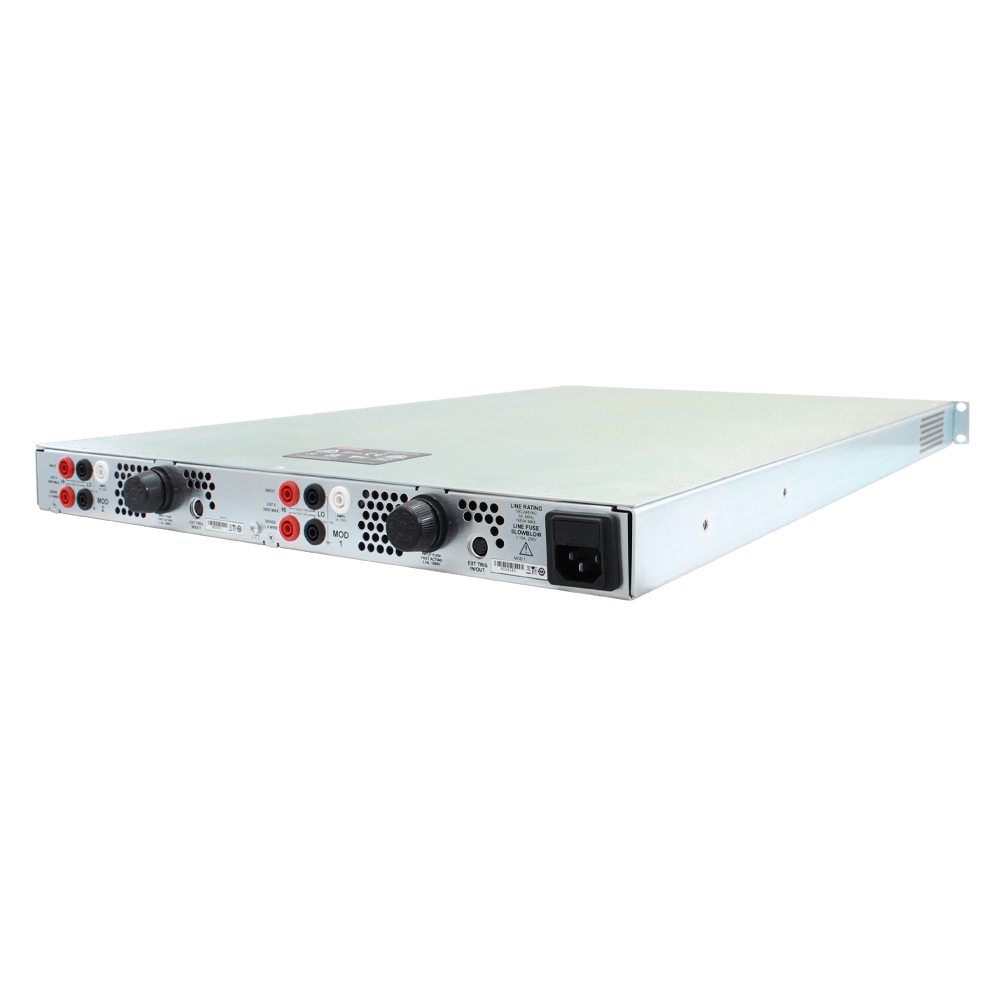

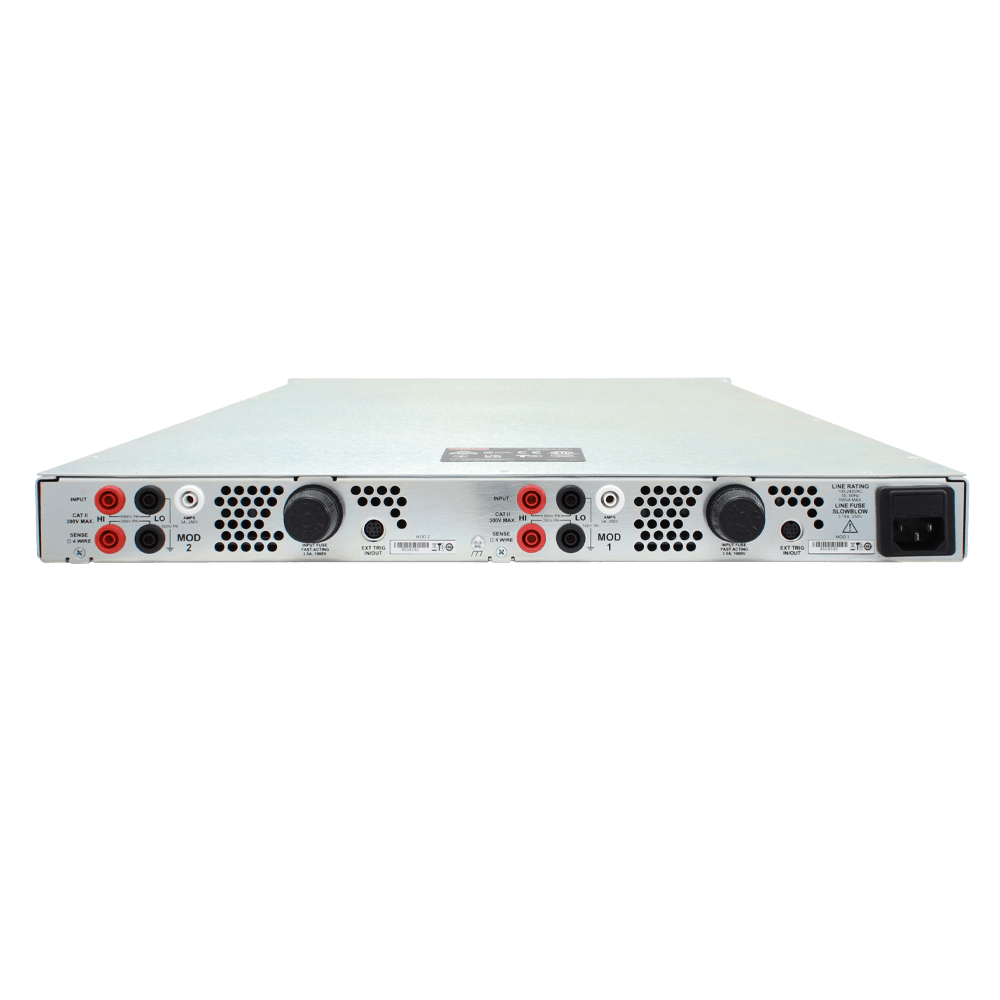

Keithley DMM7512 | 7.5 Digit Sampling Multimeter: 2-Channel

Name: DMM7512 | 7.5 Digit Sampling Multimeter: 2-Channel
Brand: Keithley
SKU: DMM7512
Price: 8020.0 EUR
Availability: InStock

Manufacturer number: DMM7512

3 in stock. Ready to ship in 1 business day

€8,020.00

plus VAT. €9,543.80 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Request educational price

Tektronix DMM7512 | 7.5 Digit Sampling Multimeter: 2-Channel

Sampling complex signal representations at 1 million samples / s, 18-bit digitizer; stores up to 27.5 million measured values
Testing of components used in low-voltage circuits with a sensitivity of 0.1 µΩ and 1 pA
Maximize test quality with high test accuracy ratios thanks to the DC volt display with an accuracy of 14 ppm and a guarantee of one year accuracy
Thanks to the integrated test script processor (TSP ^® ), test sequences can be carried out without controller interaction, so that the test time and communication effort are reduced and at the same time the controller is available for other tasks

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

2-/4-wire:	2-/4
Accuracy voltage measurement DC:	0,0018%
Article number:	DMM7512
Current measuring range AC:	1mA - 10A
Current measuring range DC:	10µA - 3A
Dimensions (L x W x H) (mm):	696 x 483 x 44
Diode test / continuity test:	Ja / Ja
Display:	Built-In via Web Browser
Interfaces:	LAN/LXI, USB Device/Host
Model:	DMM7512
Number of positions:	7.5
Resistance measuring range:	1Ω - 1GΩ
Temperature measurement:	Ja
Voltage measuring range AC:	100mV - 700V
Warranty (years):	2
Weight (kg):	11.3
max. Measuring range DC (V):	1000
min. Measuring range DC (mV):	100

Documents & Downloads

Datasheet

pdf | 0.92 MB

Detaildescription

DMM7512 | 7.5 Digit Sampling Multimeter: 2-Channel

The DMM7512 combines two DMMs with full functionality, high accuracy and high scanning speed in one housing with a height of 1U with the width of a complete frame. The compact housing saves space in test systems with a high device density without compromising on measurement performance. Each DMM has identical functions, but they are completely independent of one another.

Accessoires (1 products )

Accessoires (1 product )

Keithley DMM7510

7.5 Digit Graphical Sampling Multimeter

12 in stock. Ready to ship in 1 business day

€4,770.00

About the Manufacturer

Keithley

The Tektronix company Keithley was founded in a garage in 1946 and quickly became a leading provider of advanced electrical measurement instruments and systems for the specialized needs of manufacturers of electronic devices for high-performance production testing, process monitoring, and product development and research.
