Keithley 2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 20 V, 1 A, 20 W.

Name: 2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 20 V, 1 A, 20 W.
Brand: Keithley
SKU: 2401.
Price: 5850.0 EUR
Availability: InStock

Manufacturer number: 2401.

Reordered - in stock. Delivery time on request

€5,850.00

plus VAT. €6,961.50 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keithley 2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, max. Power up to 20 W, output voltage up to 20 V, output current up to 1 A, integrated digital multimeter with 6½ digits.

5 devices in one: current, voltage source and measurement of current, voltage and resistance
4-quadrant operation: use as source and sink
Integrated digital multimeter: 6½ digits, measurement accuracy: 0.012%
2- and 4-wire measurements as well as 6-wire resistance measurements
Max. Output power: 20 W
Max. Current source / measuring range: 1 A
Max. Voltage source / measuring range: 20 V
Measurement resolution (current / voltage): 1 pA / 100 nV
3 types of sweep for output current / voltage: linear rise, logarithmic rise, freely selectable amplitude sequence
Measuring ranges for resistance measurement: 200 mΩ to 200 MΩ and> 200 MΩ
Memory for up to 100 device configurations (PC-independent)
Interfaces: handler, digital I / O, GPIB, Keithley trigger link
Power supply: 100/240 V AC, 50/60 Hz
Dimensions: W 238 x H 104 x D 370 mm (including handles)
Weight: 3.2 kg

Technical Data

Weight (kg):	4.8

Description

2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 20 V, 1 A, 20 W.

A source measurement unit (SMU) supplies your DUT (Device Under Test) with a defined current or a defined voltage and simultaneously measures the behavior of the test object as a measuring device. Depending on the measuring range and resolution of the integrated digital multimeter down to the µV and pA range, a design in the development stage or the quality in the production environment can be assessed.

Intuitive user interface, intelligent functions:

With the SourceMeter 2401 with integrated 6½-digit digital multimeter, multitouch-capable display and integrated math functions, standard calculations can be carried out and displayed automatically. In addition, histograms can be created to e.g. B. to determine variances. The SMU 2401 can be operated without an external PC, so that your results are available very quickly, which is an important aspect especially when testing in the production environment.

Typical areas of application:

Semiconductors, active and passive components
Integrated circuits such as IC, RFIC, MMIC, MOSFET
Laser diodes and modules, LEDs, photo detectors and sensors
Module fuses such as TVS (Transient Voltage Superessor) and MOV (Metal Oxide Varistor)
Switches, relays, plugs
LIV drives (lithium-ion vehicles)
DC power sources / power supplies / power supplies

Examples of use:

Leakage current measurement
Measurement of small voltages and resistances
IDDQ: Test of CMOS-IC for manufacturing defects by measuring the IC quiescent current with statically assigned inputs
IV characteristic curve recording, e.g. B. of diodes
Insulation resistance and dielectric strength
Measurement of temperature coefficients
Breakdown voltage and current
DC parameter test
Efficiency measurement of photovoltaic components

Scope of Delivery:

8605 test lead
LabVIEW Driver (Download)
LabTracer software (download)

Accessoires

Tektronix
2401-3Y-EW-STD

3 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€524.00

Tektronix
2401-5Y-EW-STD

5 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€839.00

Tektronix
2401-EW

1 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€289.00

Alternate products

Keithley
2410

SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 1,100 V, 1 A, 20 W.

Delivery time upon request

€17,400.00

Keithley
2461

Hi Current Interactive SourceMeter SMU, with 10A Pulse & Digitizer, 200 mV - 100 V, 1 uA - 10 A, 1,000 W.

1 in stock. Ready to ship in 1 business day

€13,200.00

Keithley
2400

SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 200 V, 1 A, 20 W

Delivery time upon request

€9,210.00

Keithley
2460

Hi Current Digital SourceMeter, SMU, 200 mV - 100 V, 1 uA - 7 A, 100 W

3 in stock. Ready to ship in 1 business day

€11,600.00

Keithley
2470

Source meter, SMU, 200 mV - 1,000 V, 10 nA - 1 A, 20W

Reordered - in stock. Delivery time on request

€13,200.00

Keithley
2450

Interactive Digital SourceMeter, SMU, 20 mV - 200 V, 10 nA - 1 A

Reordered - in stock. Delivery time on request

€7,580.00

Options

Tektronix
2401-3Y-EW-STD

3 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€524.00

Tektronix
2401-5Y-EW-STD

5 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€839.00

Tektronix
2401-EW

1 Year Keithleycare Extended Warranty

Ready to ship in 5 to 10 business days

€289.00

About the Manufacturer

Keithley

Keithley Instruments is a renowned manufacturer of high-precision electrical measuring instruments and systems for research, development, and production, particularly in the semiconductor industry, process monitoring, and electronics manufacturing. The portfolio includes Source Measure Units (SMU instruments), multimeters, data loggers, parameter analyzers, and DC power supplies for measurement requirements ranging from nanovolts to gigahertz.

Measurement Tip

Guide for DAQ systems.

Optimizing measurement data acquisition with the data logger. Products are becoming more feature-rich—and as a result, t...

14/12/2022

Reading time 10 Min.

5488

Keithley 2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 20 V, 1 A, 20 W.

Keithley 2401 | SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, max. Power up to 20 W, output voltage up to 20 V, output current up to 1 A, integrated digital multimeter with 6½ digits.

Technical Data

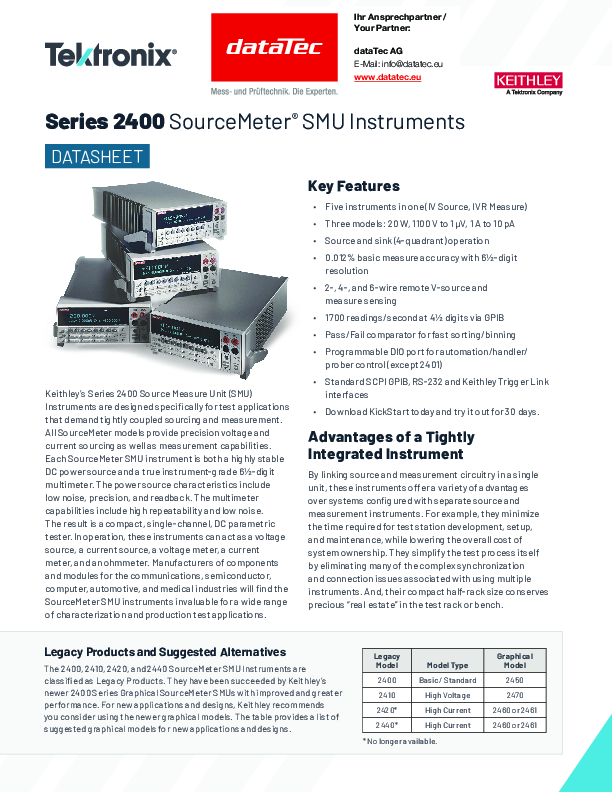

Documents & Downloads
