GW Instek GSM-20H10 | Precision source meter (SMU), DC, 1 channel, 4-quadrant 210V/1.05A, 22W

Name: GSM-20H10 | Precision source meter (SMU), DC, 1 channel, 4-quadrant 210V/1.05A, 22W
Brand: GW Instek
SKU: GSM-20H10
Price: 3943.0 EUR
Availability: InStock

Manufacturer number: GSM-20H10

Delivery time upon request

€3,943.00

plus VAT. €4,692.17 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

GW Instek GSM-20H10 | Precision source meter (SMU), DC, 1 channel, 4-quadrant 210V/1.05A, 22W, RS-232, USBTMC, LAN.

Technical Data

AC input:	100 V - 240 V, 50 Hz / 60 Hz
Additional functions:	SMU: 4-quadrant
Article number:	01SM20H110GS
Autorange:	No
Bidirectional:	No
Dimensions (L x W x H) (mm):	356.5 x 214 x 86
Interfaces:	USB, LAN, RS-232
Model:	GSM-20H10
Number of outputs:	1
Output power (W):	22
Protective devices:	OVP, OTP
Warranty (years):	2
Weight (kg):	4.8
max. Power (A):	1.05
max. voltage (V):	210

Description

GSM-20H10 | Precision source meter (SMU), DC, 1 channel, 4-quadrant 210V/1.05A, 22W

The GW Instek GSM-20H10 is a precision source meter (SMU) that provides highly stable DC and instrument-quality 6½-digit multimeter measurements. During operation, it can be used as a voltage source, current source, voltmeter, ammeter and ohmmeter. Thus, the GSM-20H10 is ideal for component property assessment and production testing applications, including nanomaterials and components, semiconductor architecture, organic materials, high-efficiency lighting, passive components and material property analysis, etc.

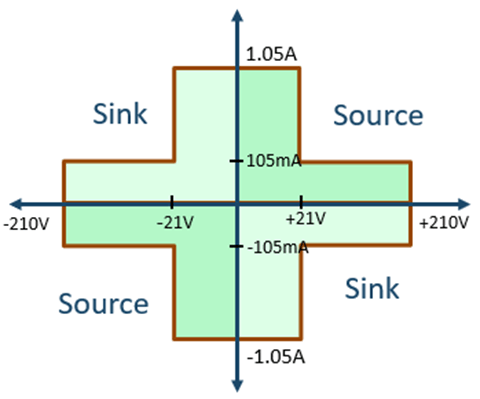

The GSM-20H10 offers four-quadrant operation of ±210V / ±1.05A / 22W. The first and third quadrants work as power supplies to power the load. The second and fourth quadrants act as a load and consume power internally. Voltage, current and resistance value can be measured during the operation of the power supply or load function with an accuracy of 0.012% and a resolution of 1 μV / 10 pA / 10 μΩ.

Regarding the sampling rate, the GSM-20H10 supports a sampling rate of up to 50k points/second, with which the properties of the DUT can be analyzed precisely. With the large 4.3-inch screen, all measurement settings, parameters and results can be fully displayed on the screen. The SDM (Source Delay Measure) function delays sampling when the signal changes to prevent the unstable signal from being caught and causing misjudgment. There are four built-in sequence output modes (Stair, Log, SRC-MEM, Custom) that can output up to 2500 points of sequence variations.

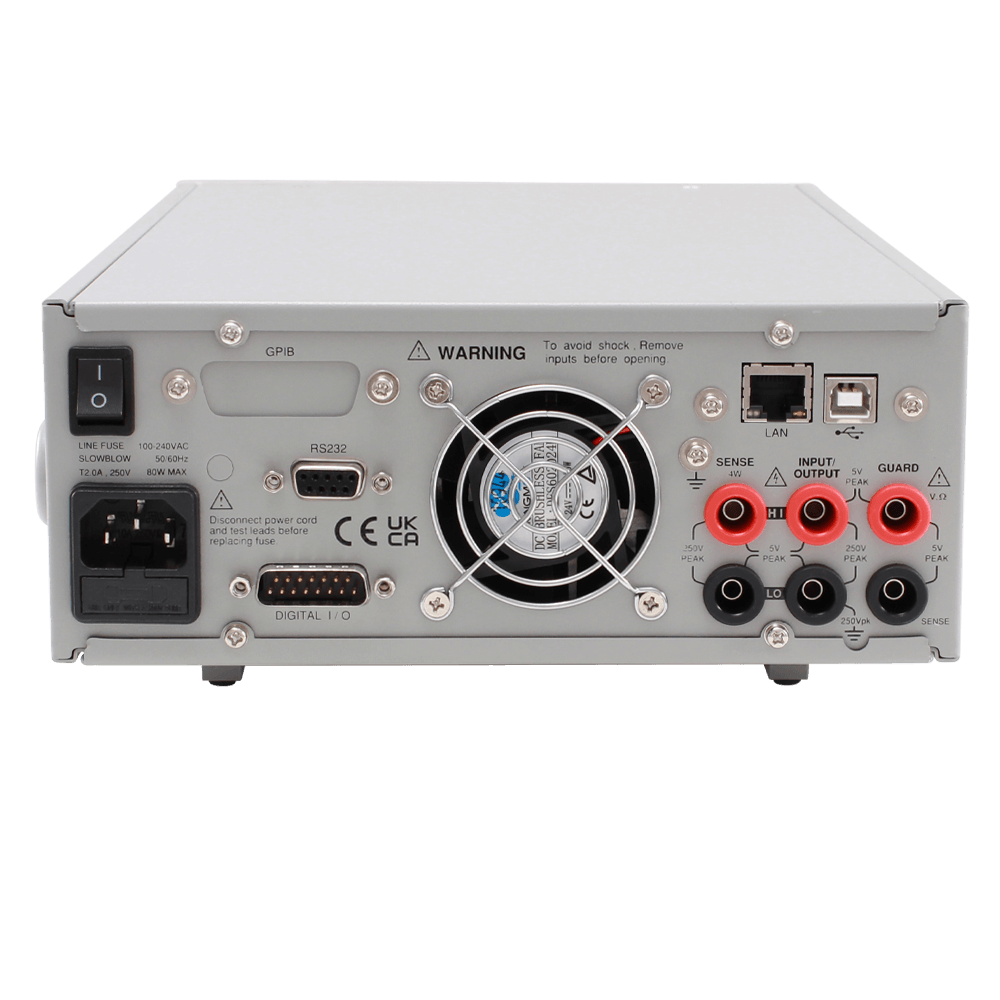

The GW Instek GSM-20H10 has Over Voltage (OVP) and Over Temperature Protection (OTP) protection. The SMU supports standard SCPI commands and offers RS-232, USBTMC, LAN and GPIB interfaces (optional).

Product features:

Maximum power: ±210V/±1.05A/22W
Built-in 4 sequence output modes, up to 2500 points
OVP/OTP protection
0.012% basic measurement accuracy with 6½ digit resolution
Variable sampling rate
SDM (Source Delay Measure) cycle
2-, 4- and 6-wire remote V-source sensing and measurements
Variable display digits
Built-in limit function
Built-in 5 calculation functions
4.3'' LCD, digital numeric keypad
Built-in real time clock
Interfaces: RS-232, USBTMC, LAN, GPIB (optional)

Scope of Delivery:

Source Meter SMU
CD User Manual
Quick Start Manual
Test Lead GTL-207A
2* Alligator Clips
