GW Instek GBM-3100H | Battery Tester (Battery Meter), 1,000 V AC-IR and DC, GBM-3000 Series

Manufacturer number: GBM-3100H

GBM-3100H
GBM-3100H
GBM-3100H
GBM-3100H
GBM-3100H
GBM-3100H
GBM-3100H
GBM-3100H
Delivery time upon request

€4,190.00

plus VAT. €4,986.10 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

GW Instek GBM-3100 | Battery tester - battery voltage up to 1,000 V and internal resistance up to 3.2 kΩ at a glance

  • Clear 3.5-inch TFT display (320 x 240 mm)
  • Two display options: Simple Mode for optimal readability, Standard Mode for simultaneous display of the essential measurement parameters
  • Simple measurement of battery voltage (DC, 1000 V) and internal resistance (AC, 0 mΩ to 3.2 kΩ)
  • Basic accuracy of voltage measurements: 0.01%
  • Basic accuracy of resistance measurements: 0.5%
  • Resolution of measured values: up to 0.1 µΩ and 10 µV, suitable for measuring individual battery cells
  • Objective fail/pass evaluation of the measurement results
  • Automatic detection of the measuring probe for correct connection (contact/disconnected)
  • Interfaces: RS-232C, USB Host/Device, Handler (for external trigger control via PLC)
  • Dimensions: W 264 x H 107 x D 350 mm, weight: approx. 2.8 kg

Technical Data

Documents & Downloads

Datasheet
pdf | 0.70 MB
Datasheet
pdf | 0.70 MB

Description

GBM-3100H | Battery Tester (Battery Meter), 1,000 V AC-IR and DC, GBM-3000 Series

The GBM-3100H battery tester from the GBM-3000 series from GW Instek offers flexible measuring functions for determining the battery voltage (up to 1,000 V) and the internal resistance (up to 3.2 kΩ) in a particularly handy format. The clear display enables quick interpretation of the measurement results so that the battery tests can be optimally integrated into your workflows. With a basic accuracy of 0.01% for voltage measurements and 0.5% for resistance measurements, the battery tester meets the high testing requirements in development and production. Integrated statistical functions provide you with the key figures such as Mean, Min, Max, Cp, CpK, etc. in real time, so that you can evaluate the status of your production at any time.

Simplify your workflows when evaluating batteries - from the individual cell to the finished end product.

  • Two display options: "Simple Mode" for fast measurement results during production thanks to optimal readability, "Standard Mode" for additional control of the measurement parameters in development and technical validation
  • Integrated statistical functions provide key figures for the statistical evaluation of your current production process
  • Pass/Fail evaluation: individual HI/LO settings depending on the measurement requirement for objective assessment of the measurement results
  • High-resolution display of the measured values: 6-digit voltage values and 5-digit resistance values for precise Measurement results

Scope of Delivery:

  • GBM-3100H Battery Tester (1000 V)
  • GBM-01 4-wire test probe
  • Safety data sheet
  • Power cord
  • Operating instructions

Accessoires

GBM-01
GW Instek
GBM-01
4-wire measuring lead, Kelvin clip, 90 V, length 1.1 m
Delivery time upon request
€90.00

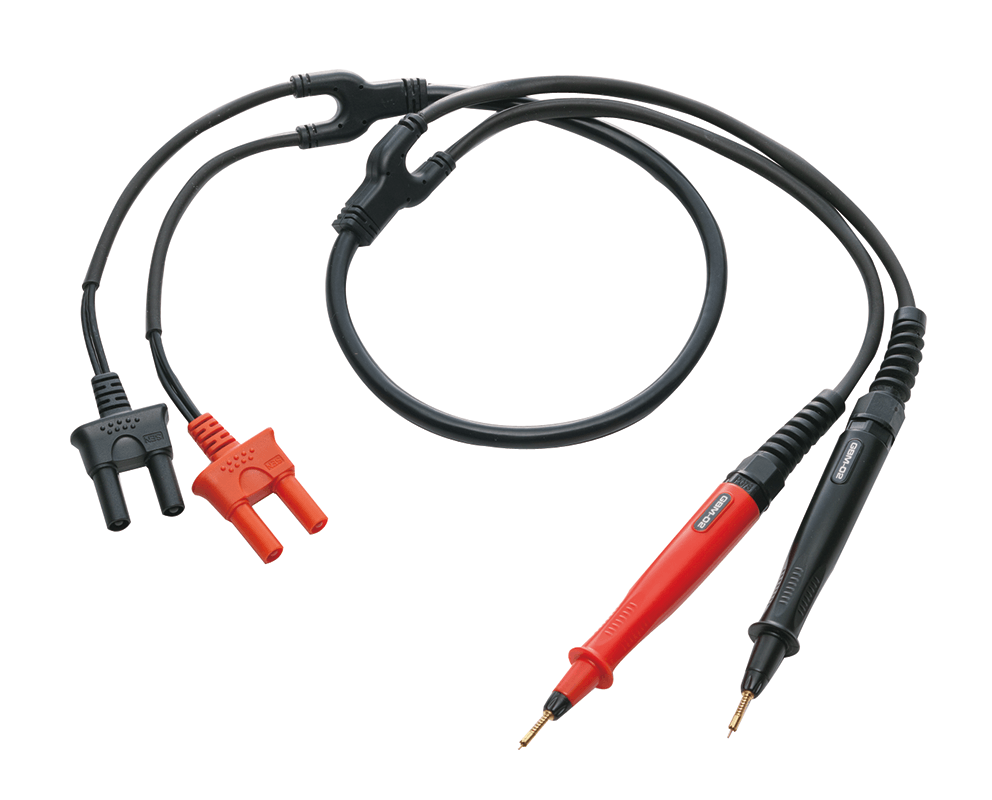

GBM-02
GW Instek
GBM-02
4-wire measuring cable single pin, 80 V, length 1.1 m
Delivery time upon request
€284.00
GBM-03
GW Instek
GBM-03
4-wire measuring cable twin pin, 300 V, length 1.4 m
Delivery time upon request
€318.00

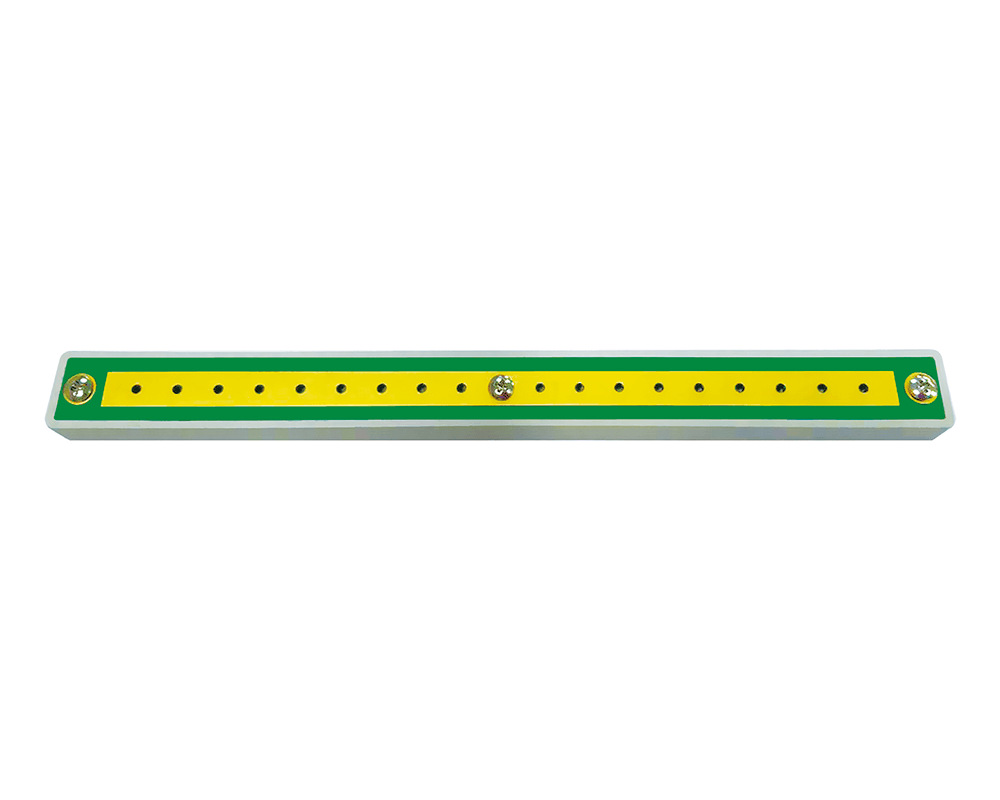

GBM-S1
GW Instek
GBM-S1
Short Bar for measuring lead set GBM-02 and GBM-03
Delivery time upon request
€69.00
GTL-232
GW Instek
GTL-232
Transmission cable RS232 for LCR-6xxx / 81xxG, 9 pin (f) to (f), 2m
Delivery time upon request
€8.00
GTL-246
GW Instek
GTL-246
USB cable type A to type B 1.2m for GDS / GLA / GSP / GPD / GLC9000 / AFG2000 / 3000 / PEL
Delivery time upon request
€10.00
GRA-422
GW Instek
GRA-422
19 inch rack, 2U for GDM-82xxA / 83xx, power meter GPM-8123 and LCR-6000
Delivery time upon request
€41.00
