Graphtec Data logger / PetitLOGGER, 4-channel, 0.5 s, WLAN, incl. 4 GB microSDHC | GL100-WL

Name: Data logger / PetitLOGGER, 4-channel, 0.5 s, WLAN, incl. 4 GB microSDHC | GL100-WL
Brand: Graphtec
SKU: GL100-WL
Price: 402.0 EUR
Availability: BackOrder

Manufacturer number: GL100-WL

Ready to ship in 5 to 10 business days

€402.00

plus VAT. €478.38 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price % Additional offers for this product

Graphtec PetitLOGGER GL100-WL data logger for max. 4 channels

Number of channels: depending on the input module used
LCD display (backlit monochrome, graphic style 128 x 64 dots)
Display of the recorded data on the LCD in real time
Storage of the recorded values / data
Full control of the GL100 from the PC software
Easy control of the GL100 from the Smart Device application software
Dustproof and waterproof
PC interface USB, wireless LAN (IEEE802.11B)
Internal memory 4.9 MB / micro SD
Power supply: Alkaline battery (2xAA) and / or USB bus power (5V, 200 mA)
Dimensions: W 66 x H100 x D27 mm (exclude protrusion)
Weight: GL100-WL: 130 g

Technical Data

Accuracy temperature:	Reference cold junction compensation RJC ±0.5°C
Article number:	GL100-WL
Dimensions (L x W x H) (mm):	100 x 66 x 27
Display:	LCD (backlit, monochrome, graphic)
Interfaces:	USB, WiFi
Measured value memory:	4 GB microSDHC
Model:	GL100-WL
Number of channels:	4
Resolution (bit):	16
Special features:	external data recording via USB to PC, W-LAN
Temperature sensors Types:	K, T
Voltage measuring range:	±20 mV - ±50 V
Warranty (years):	1.5
Weight (kg):	0.29

Description

Data logger / PetitLOGGER, 4-channel, 0.5 s, WLAN, incl. 4 GB microSDHC | GL100-WL

Access your measurements from anywhere in the world.
The GL100 gives you direct access to measurements of temperature, humidity, UV radiation and CO2. With the 3-axis acceleration module you can monitor e.g. B. the data of your delivery on the transport route. The data can be saved on an SD card and then read out. With the port adapter, two sensor modules can be operated in parallel.

Accessoires

Graphtec

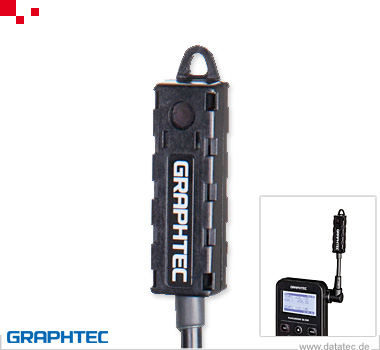

GS-TH

GL100, GL840 sensor temperature and humidity

Delivery time upon request

€147.00

Graphtec
GS-103AT-4P

Delivery time upon request

€140.00

Graphtec

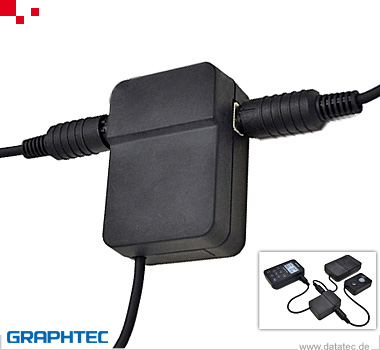

GS-DPA

GL100, GL840 2 port adapter for connecting 2 sensors to one port

Delivery time upon request

€135.00

Graphtec
GS-103JT-4P

GL100, GL840 thermistor -40 ° C to 120 ° C, very thin type

Delivery time upon request

€140.00

Graphtec

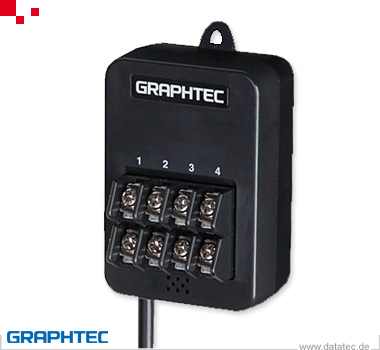

GS-4VT
