FLUKE Networks LIQ-DUO-IE-KIT-H6-EU | LinkIQ Duo cable, Wi-Fi and network tester, checking cable performance up to 10 Gbit / s

Name: LIQ-DUO-IE-KIT-H6-EU | LinkIQ Duo cable, Wi-Fi and network tester, checking cable performance up to 10 Gbit / s
Brand: FLUKE Networks
SKU: LIQ-DUO-IE-KIT-H6-EU
Price: 5024.0 EUR
Availability: BackOrder

Manufacturer number: LIQ-DUO-IE-KIT-H6-EU

Ready to ship in 5 to 10 business days

€5,024.00

plus VAT. €5,978.56 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

FLUKE Networks LIQ-DUO-IE-KIT-H6-EU | LinkIQ Duo cable, Wi-Fi and network tester, checking cable performance up to 10 Gbit/s

Description

LIQ-DUO-IE-KIT-H6-EU | LinkIQ Duo cable, Wi-Fi and network tester, checking cable performance up to 10 Gbit / s

The Fluke Networks LinkIQ Cable and Network Tester is a versatile solution for testing cables up to 10 Gbps and troubleshooting network connectivity issues. Using frequency-based measurements and a detailed cable map, the tester validates cable quality. In addition, it verifies connectivity through ping tests and provides comprehensive switch diagnostics to identify network issues and validate the switch configuration - eliminating the need for a separate device.

The LinkIQ Duo model adds Wi-Fi analysis (if allowed) to Wi-Fi 6E, including network, channel and access point assessment and detection of typical configuration issues. The IE models are designed to detect wiring and split-pair faults on RJ45, M12X, M12D and M8D terminated cables that support EtherNet/IP, PROFINET,
EtherCAT and other Industrial Ethernet protocols.

Other features include analog and digital toning, port blink, remote office locators and management of test results via LinkWare PC. The LinkIQ tester measures cable lengths of up to 305 m (1,000 feet) and indicates distances to fault locations such as breaks, shorts or unassembled cables. With the remote ID, all cable pairs can be fully mapped, reliably detecting miswired or split pairs.

The main function of the tester is to qualify cable performance, covering bandwidths from 10BASE-T to 10GBASE-T (10 Mbps to 10 Gbps). The tests are based on IEEE-compliant frequency-based measurements, which ensures that the connections meet the required performance standards - unlike pure transmission testers, which only test the function between test devices.

Product features:

Cable performance testing up to 10GBASE-T and troubleshooting (distance to fault location, occupancy map, toning)
Testing and troubleshooting of EtherNet/IP, PROFINET and EtherCAT cabling with M12X, M12D and M8D adapters (IE versions)
Network features include: IPv4 and IPv6 ping, nearest switch diagnostics (IP address, name, port/VLAN number and data rates offered)
Ethernet Alliance-certified PoE verification recognizes PoE class (1-8) and power, and performs a load test of available PoE from the connected switch
Wi-Fi analysis up to Wi-Fi 6E, including networks, channels and access points (Duo model) (6 GHz support only in countries where this is allowed)
Manage results and print reports via LinkWare PC

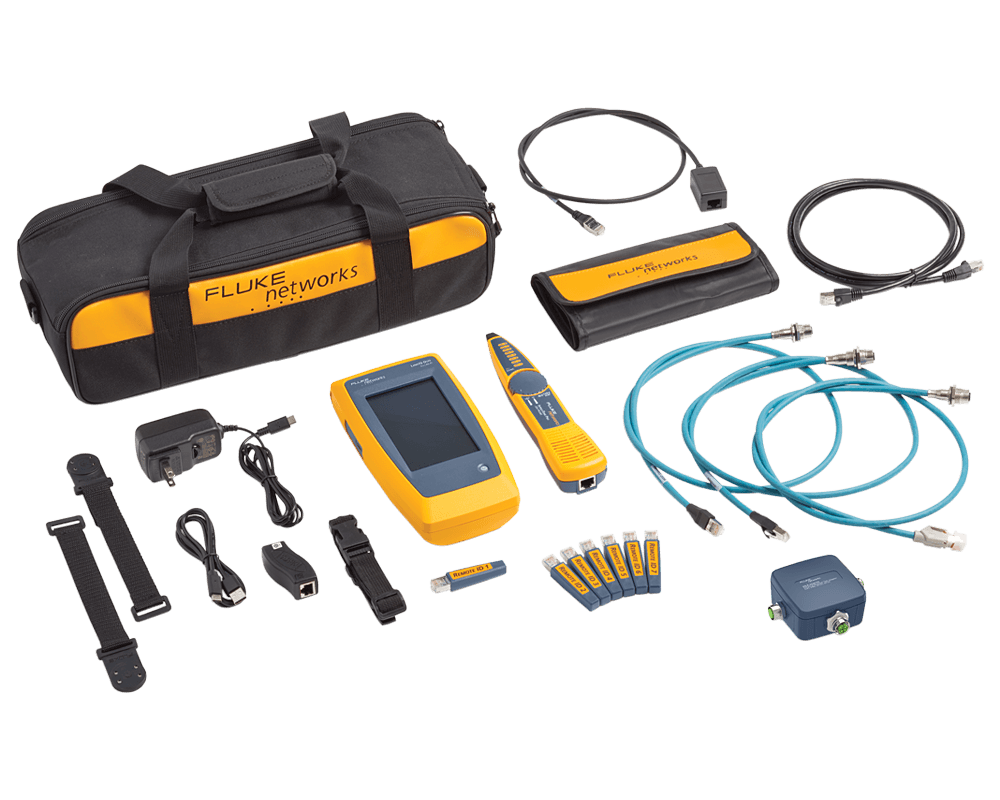

Lieferumfang

LIQ-200-DUO-KIT with LIQ-200-DUO-IE
Remote IDs
IntelliTone Probe

About the Manufacturer

FLUKE Networks

FLUKE Networks is a global leader in providing tools to certify, troubleshoot and install critical network cabling infrastructure. From installing the most advanced data centers to restoring phone service in bad weather conditions, the combination of unbeatable reliability and unparalleled performance ensures jobs get done efficiently.
