FLUKE ii01 | Mobile acoustic camera for leak detection for Android smartphones, 2 kHz to 48 kHz, 0.5 m to > 20 m

Manufacturer number: FLUKE-II01

ii01
ii01
ii01
ii01
ii01
ii01
ii01
ii01
ii01
New
Reordered - in stock. Delivery time on request

€879.00

plus VAT. €1,046.01 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

FLUKE ii01 | Mobile acoustic camera for leak detection for Android smartphones, 2 kHz to 48 kHz, 0.5 m to > 20 m.

Technical Data

Documents & Downloads

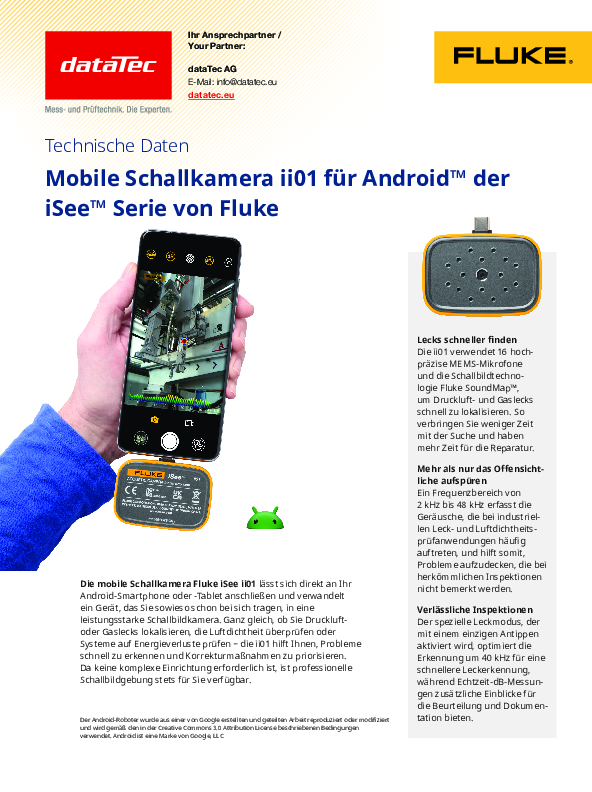

Datasheet
iSee-ii01
pdf | 1.59 MB

Description

ii01 | Mobile acoustic camera for leak detection for Android smartphones, 2 kHz to 48 kHz, 0.5 m to > 20 m

The Fluke ii01 from the iSee series is a compact, portable acoustic camera that connects directly to a compatible Android smartphone or tablet via USB-C. This transforms your existing mobile device into a professional sound imaging tool without the need for additional cables or complicated setup. With 16 high-precision MEMS microphones and Fluke SoundMap technology, the ii01 visually displays acoustic data and enables quick and precise localization of sound sources.

Key applications include the detection of compressed air and gas leaks, airtightness tests, and the inspection of industrial plants and systems for energy losses. The frequency range from 2 kHz to 48 kHz covers typical sounds associated with industrial leak and leak-tightness testing. A special leak mode optimizes detection in the range around 40 kHz, thereby supporting fast and reliable leak detection.

Thanks to a detection range of 0.5 m to over 20 m, the acoustic camera is suitable for inspections both at close range and from a safe working distance. The 50° × 38° field of view enables wide-area coverage, while images and videos can be saved directly to a smartphone and then shared for documentation or communication. Weighing only 50 g, the ii01 is exceptionally portable and designed for daily use in industrial environments.

Product Features:

  • Microphones: 16 MEMS microphones
  • Frequency range: 2 kHz to 48 kHz
  • Detection range: 0.5 m to >20 m
  • Field of view: 50° × 38°
  • Nominal frame rate: 20 frames/s
  • Integrated digital camera: 2 megapixels
  • Focus: 50 cm to infinity
  • Zoom: 3x digital zoom
  • Image format: Combination of live view and SoundMap in JPG format
  • Video format: Combination of live view and SoundMap in MP4 format
  • Maximum video length: up to 5 minutes
  • Automatic gain: Max. dB/Min. dB, Auto
  • Photo mode: Yes
  • Video mode: Yes
  • Leak mode: 37.5 kHz to 42.6 kHz
  • Power supply: via connected smartphone
  • USB interface: USB Type-C
  • Color palettes: Grayscale, Iron, and Blue-Red
  • Overlay transparency: 1–100%
  • Graphical trend displays: Frequency and dB scales
  • Operating temperature: 0 °C to +40 °C
  • Storage temperature: -30 °C to +60 °C
  • Maximum operating altitude: up to 2,000 m
  • Maximum storage altitude: up to 12,000 m
  • Relative humidity: 10% to 90% RH, non-condensing
  • Dimensions (H × W × D): 61 × 50 × 12 mm
  • Weight: 50 g
  • Protection rating: IP54 per EN 60529
  • Supported operating systems: Android 6.0 / HarmonyOS 2.0 and higher; OTG functionality required
  • RoHS compliant: Yes
  • Warranty: 2 years
  • Model: Fluke ii01
  • Model number: 6163245
  • Package contents: Fluke ii01 Sound Camera for Android, packaging, quick start guide, and soft protective case
