FLUKE TI300 + 9HZ | Fluke Ti300 + 9Hz thermal imager

Name: TI300 + 9HZ | Fluke Ti300 + 9Hz thermal imager
Brand: FLUKE
SKU: FLK-TI300+ 9HZ
Availability: OutOfStock

Manufacturer number: FLK-TI300+ 9HZ

Delivery time upon request

On Request

This product cannot be retrofitted!

You would like to request an offer? Please add items to the shopping cart and request an offer there.

FLUKE Ti300 + 9HZ | Thermal imaging camera Ti300 +, -20 ° C to 650 ° C, 76,800 pixels, refresh rate 9 Hz, laser sharp autofocus.

Display: LCD screen in landscape format, 8.9 cm (3.5 "), resolution 640 x 480 pixels
Thermal image resolution: 320 x 240 (76,800) pixels
Temperature measuring range: -20 ° C… 650 ° C
Accuracy: ± 2 ° C or 2%
Spatial resolution (IFOV) with standard lens: 1.85 mRad, D: S 532: 1
Field of view (FOV): 34 ° H x 24 ° V
Minimum focusing distance: 15 cm
Thermal sensitivity (NETD): ≤ 0.075 ° C at 30 ° C
Refresh rate: 9 Hz (variant with 60 Hz available)
Laser beam aiming aid: Yes
LED light (flashlight): Yes
Wireless communication
Fluke Connect compatible
Storage options: Exchangeable micro SD memory card (4 GB), device-internal flash memory (4 GB), data storage on USB stick, uploading data to the Fluke Cloud
Voice memos: A maximum of 60 seconds of recording time per image
Color palettes: 9 color palettes selectable
Dimensions (H x W x D): 277 mm x 122 mm x 167 mm
Weight (with battery): 1.04 kg

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	5127977
Dimensions (L x W x H) (mm):	167 x 122 x 277
Focus:	LaserSharp Autofokus
Frame rate (Hz):	9
Image enhancement technology:	IR-Fusion, SuperResolution
Image memory:	4 GB SD-Karte
Integrated viewfinder:	Nein
Interchangeable lenses:	Ja
Interfaces:	USB, HDMI
Max. field of view (FOV):	34° x 24°
Model:	FLK-TI300+ 9HZ
Resolution in pixels:	320 x 240
Smallest resolution IFOV (mrad):	1.85
Temperature measuring points:	76800
Thermal sensitivity (mK):	75
Warranty (years):	2
Weight (kg):	1.04

Documents & Downloads

Datasheet

pdf | 0.25 MB

Detaildescription

TI300 + 9HZ | Fluke Ti300 + 9Hz thermal imager

The Fluke Ti300 + thermal imager is a robust thermal imager up to 650 ° C with a resolution of 76,800 pixels, which has been specially designed for the requirements of maintenance, diagnosis and maintenance work. Thanks to the intuitive operability and the ergonomically shaped pistol grip, the Ti300 + can be easily operated with one hand.

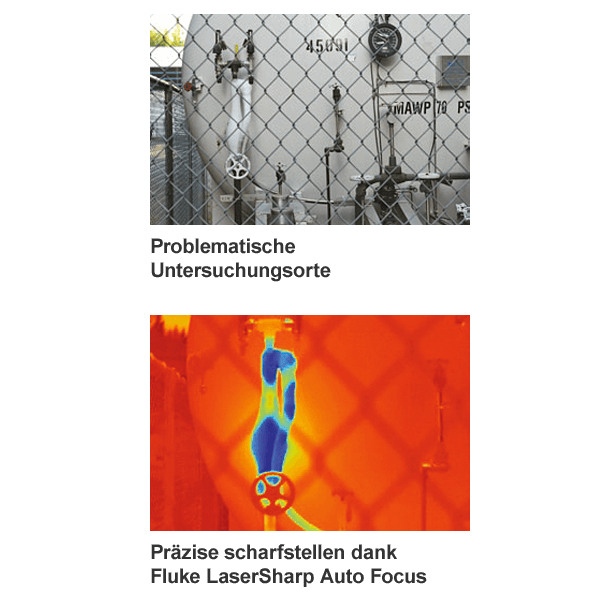

With the Fluke Ti300 +, maintenance teams identify errors before they become real problems. It has the necessary resolution and accuracy to clearly recognize temperature differences or to show progressive changes in temperature over time. With the LaserSharp ™ autofocus system, the Ti300 + ensures sharp images with every measurement. With a push of a button, the integrated laser rangefinder immediately calculates the distance to the measurement object and displays the distance. The focus is then carried out in the shortest possible time. The measured temperature values are only very accurate with precisely focused images.

The thermal imaging camera Ti300 + is alternatively available with a refresh rate of 60 Hz. You can adapt the Ti300 + exactly to your requirements using the optionally available interchangeable lenses.

Product features:

Resolution: 320 x 240 pixels
Drop tests from a height of 2 meters
LaserSharp ™ auto focus
Manual or automatic focusing
Measurement up to 650 ° C

Lieferumfang

Thermal imaging camera Ti300 + with standard infrared lens
Power supply and battery charger (incl. Universal power adapter)
two robust intelligent lithium-ion battery packs
USB cable
HDMI video cable
Micro SD card (4 GB)
robust transport case
padded transport bag
adjustable wrist strap
Fluke Connect Desktop software free download
Operating manual free download
