EXTECH EX820A | Current clamp, TRMS, 1000 A AC, 1000 V AC/DC

Name: EX820A | Current clamp, TRMS, 1000 A AC, 1000 V AC/DC
Brand: EXTECH
SKU: EX820A
Price: 139.4 EUR
Availability: InStock

Manufacturer number: EX820A

Reordered - in stock. Delivery time on request

€139.40

% €164.00 (15% saved)

plus VAT. €165.89 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Extech EX820A | current clamp, TRMS, 1000 A AC, 1000 V AC/DC.

Product features:

Starting current: Yes
Diode test: Yes
Crossover: Yes
True RMS (TRMS): Yes
Frequency: 0.01 Hz to 100 kHz
DC Voltage: 0.1 mV to 1,000 V
Capacitance: 0.001 nF to 40 mF
Temperature (IR) Max. Resolution: -50 °C to 270 °C
Temperature (type K) Max. Resolution: -20 °C to 760 °C
Ac voltage: 0.1 mV to 1,000 V
Ac current: 0.1 µA to 1.000 A
Alternating current basic accuracy: ±(2.5 % + 8 digits)
Resistance: 0.1 Ω to 60 MΩ
Clamp opening: 43 mm
Dimensions: 270 mm × 110 mm × 50 mm
Weight: 362 g
Safety category: CAT IV-600 V
Certifications: CE, ETL

Documents & Downloads

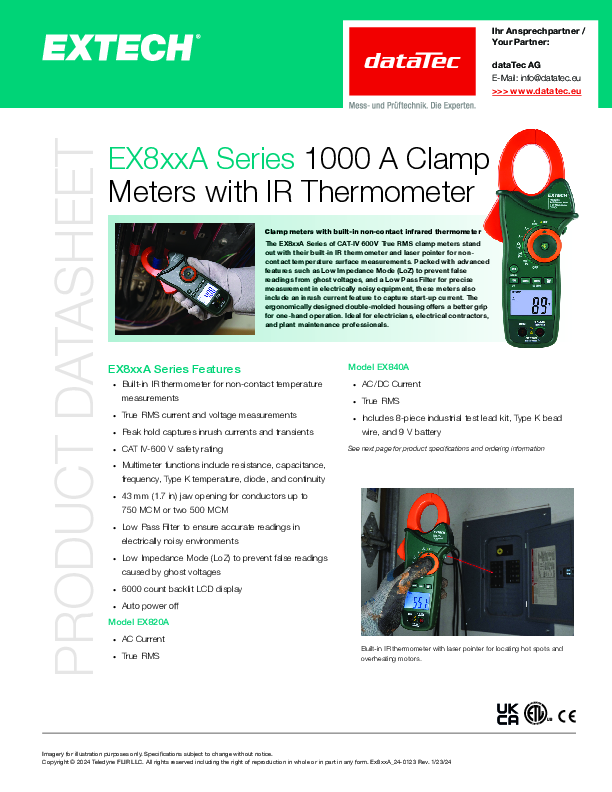

Datasheet

pdf | 0.69 MB

Description

EX820A | Current clamp, TRMS, 1000 A AC, 1000 V AC/DC

The EX820A current clamp meter is equipped with an integrated, non-contact infrared thermometer with laser pointer. This allows temperatures and potential hot spots on motors and electrical systems to be quickly detected and monitored. The large display with 6,000 counts and bright backlighting ensures optimum readability even in poor lighting conditions. The ergonomic, double-molded housing enables safe, single-handed operation. The 43 mm jaw opening is suitable for conductors up to 750 MCM or two conductors with 500 MCM. With true RMS measurements up to 1,000 A and a CAT IV-600 V safety classification, the EX820A model is ideal for electricians, installers and plant maintenance professionals.

About the Manufacturer

EXTECH

Extech Instruments is a leading global manufacturer of innovative handheld test, measurement and inspection tools. Since 1971, the company has provided reliable solutions for professionals, craftsmen and do-it-yourselfers in various fields such as electrical, mechanical, maintenance, safety and environmental. Extech is known for its high quality and is valued in over 100 countries. Since 2007, Extech has been part of Teledyne FLIR, a leading provider of infrared thermal imaging solutions.
