Danisense 1212400004 | DS200ID-CD100, High-Precision Fluxgate Current Transducer with Calibration Winding, DC/AC Measurement up to 370 A

Manufacturer number: 1212400004

1212400004
New
Delivery time upon request

€807.00

plus VAT. €960.33 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

Danisense 1212400004 | DS200ID-CD100, High-precision fluxgate current transformer with calibration winding, DC/AC measurement up to 370 A.

  • 1 × Danisense DS200ID-CD100 Stromwandler

Technical Data

Documents & Downloads

Brochure
Product-Selection-Guide
pdf | 3.07 MB

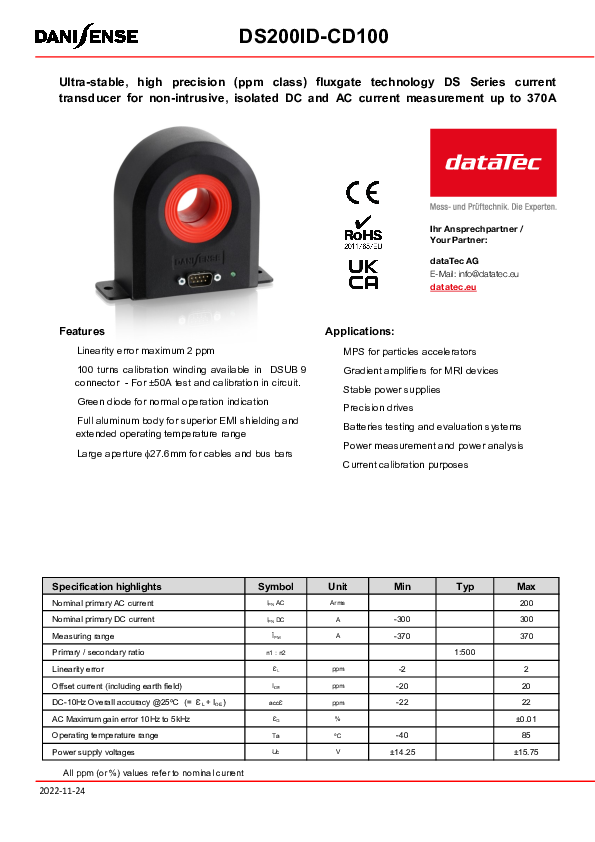

Datasheet
1212400004
pdf | 0.51 MB

Description

1212400004 | DS200ID-CD100, High-Precision Fluxgate Current Transducer with Calibration Winding, DC/AC Measurement up to 370 A

The Danisense DS200ID-CD100 is a fluxgate current transducer with a precise current output for galvanically isolated measurement of DC and AC currents up to 370 A. The compensated sensor technology ensures stable measurement results and low offset drift.

The sensor is suitable for demanding measurements in power electronics, on batteries and inverters, as well as for power analysis. The actual signal processing is performed via the specified output type and a matching power supply or Danisense interface unit.

The integrated calibration winding with 100 turns supports defined test and calibration measurements without requiring a correspondingly high primary current to flow through the main conductor.

About the Manufacturer

Danisense
Danisense

Danisense is a Danish manufacturer of high-precision current sensors and current transformers for measuring direct and alternating currents. The company combines magnetic measurement technologies with modern electronics and develops measurement solutions for applications with high requirements for accuracy, stability, and frequency response.
