CompactDAQ Modules

The CompactDAQ I/O modules from NI (National Instruments) can be connected to numerous sensors and bus systems and support the measurement of variables such as temperature, voltage, resistance or audio frequencies.

Filter products
182 products
781632-01
NI
781632-01
NI 9467, module of the C series for time stamping and synchronization via GPS
  • With case: Yes
€1,190.00
Delivery time upon request
865664-01
Bundle
NI
865664-01
Bundle - 4 channel USB sound and vibration measurement module NI-9234 incl. Chassis cDAQ-9171 at a special price
€2,880.00
Delivery time upon request
783283-01
NI
783283-01
NI 9222, analog input module with simultaneous sampling, 4 channels, 500 kS / s, 16 bit, +/- 10 V, BNC connection
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Samplerate: 500 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.5
  • Max. Number of differential analogue input channels: 4
€2,270.00
2 in stock. Ready to ship in 1 business day
779136-02
NI
779136-02
NI 9421, current sinking digital input module with 8 channels, 24 V, 100 µs, protective coating
  • With case: Yes
  • Logic level of the digital I/O: 24 V, 12 V
  • Number of bidirectional digital channels: 0
  • Number of digital inputs: 8
  • Logic level and range: 24 V, 12 V
  • Number of digital outputs: 0
€505.00
Delivery time upon request
779011-01
NI
779011-01
NI 9215, analog input module with 4 channels, 100 kS / s per channel, 16 bit, +/- 10 V, screw terminals
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Max. Number of differential analogue input channels: 4
  • Samplerate: 100 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1
€1,090.00
5 in stock. Ready to ship in 1 business day
785189-01
NI
785189-01
NI 9226 spring terminals, analog input module, 8 channels for Pt1000-RTD, 24 bit, 50 S / s per channel
  • With case: Yes
  • Samplerate: 400 S/s
  • Max. Number of differential analogue input channels: 8
  • Measurements per second/sampling rate (MS/s): 0.0004
€1,830.00
Delivery time upon request
785045-01
NI
785045-01
NI 9476 C series digital output module, spring clip, 32 channels, 24 V, 500 microseconds, sourcing
  • With case: Yes
  • Logic level of the digital I/O: 24 V, 12 V
  • Number of bidirectional digital channels: 0
  • Logic level and range: 24 V, 12 V, 6.0V - 36.0V
  • Number of digital outputs: 32
  • Number of digital inputs: 0
€710.00
4 in stock. Ready to ship in 1 business day
783362-01
NI
783362-01
NI 9218, universal analog input module, 2 channels, 51.2 kS / s per channel, 24 bit, D-Sub connection
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.0512
  • Samplerate: 51.2 kS/s per channel
  • Max. Number of differential analogue input channels: 2
€1,920.00
Delivery time upon request
780927-01
NI
780927-01
NI 9264, analog output module, 16 channels, 25 kS / s, 16 bit, ± 10 V (D-Sub connection)
  • With case: Yes
  • Max. Update rate (MS/s): 0.025
  • Samplerate: 25 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.025
  • Number of analogue output channels: 16
  • Max. Output current (mA): 4
€1,930.00
Delivery time upon request
783589-01
NI
783589-01
NI 9247, C series analog input module, 3 channels, 50 kS / s per channel, 24 bit, 50 A
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
  • Max. Number of differential analogue input channels: 3
€2,300.00
Delivery time upon request
779785-02
NI
779785-02
NI 9229, analog input module with protective coating, 4 channels, ± 60 V, 50 kS / s per channel, 24 bit, channel-by-channel isolation
  • With case: Yes
  • Max. Number of differential analogue input channels: 4
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
  • Voltage measuring range of the analogue input (V): -60 V to 60 V
€3,040.00
Delivery time upon request
779139-01
NI
779139-01
NI 9425, current sinking digital input module, 32 channels, 24 V, 7 µs
  • With case: Yes
  • Number of bidirectional digital channels: 0
  • Logic level and range: 24 V, 12 V
  • Number of digital outputs: 0
  • Number of digital inputs: 32
  • Logic level of the digital I/O: 12 V, 24 V
€675.00
4 in stock. Ready to ship in 1 business day
782000-01
NI
782000-01
NI 9232, IEPE analog input module, 3 channels, 102.4 kS / s, 24 bit, ± 30 V.
  • With case: Yes
  • Max. Number of differential analogue input channels: 3
  • Samplerate: 102.4 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1024
  • Voltage measuring range of the analogue input (V): -30 V to 30 V
€3,140.00
Delivery time upon request
784397-01
NI
784397-01

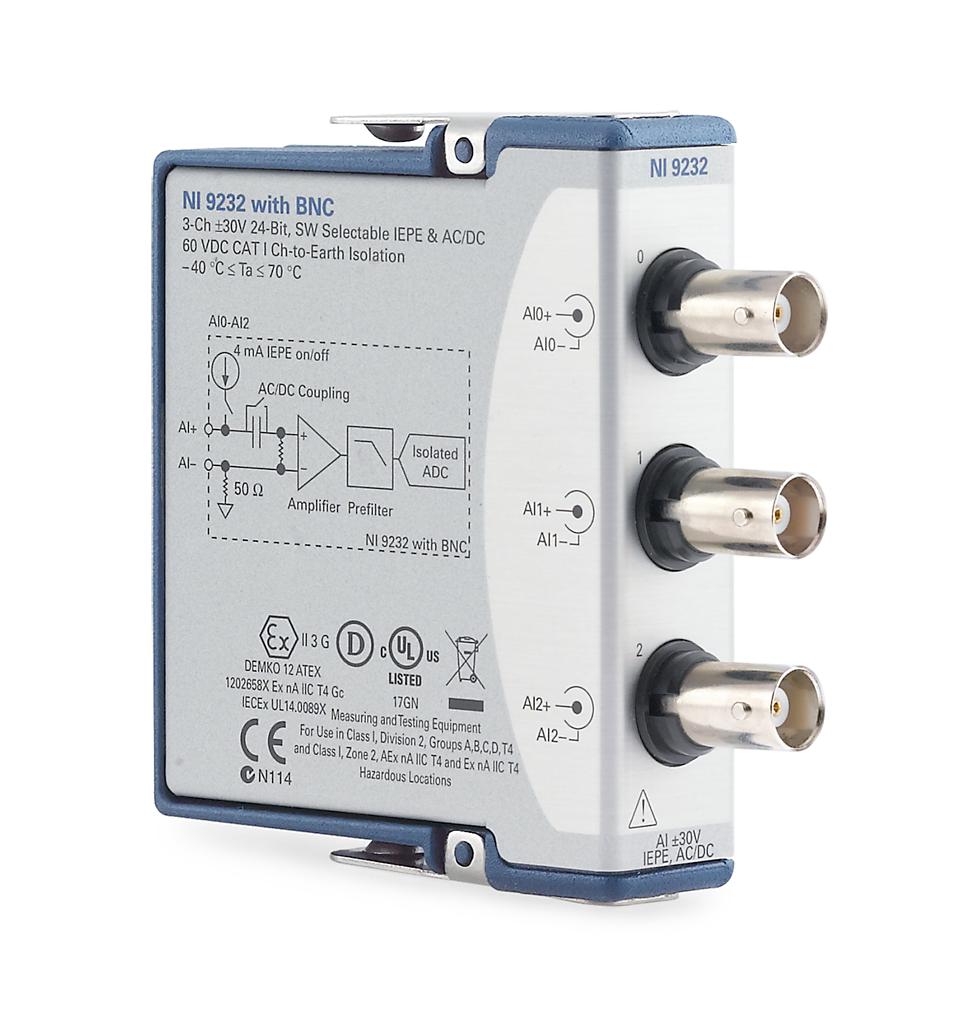

NI 9232 BNC, 3 channels, +/- 30 V, 102.4 kS / s / channel, 24-bit, IEPE-AI-C module
  • With case: Yes
  • Max. Number of differential analogue input channels: 3
  • Samplerate: 102.4 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1024
  • Voltage measuring range of the analogue input (V): -30 V to 30 V
€3,140.00
Delivery time upon request
785965-01
NI
785965-01
sbRIO-9866, LIN interface module of the C series with 1 connection, only circuit board
  • With case: Yes
€1,210.00
Delivery time upon request
781099-02
NI
781099-02
NI 9227 CC, C-Series power input module, with protective coating
  • With case: Yes
  • Max. Number of differential analogue input channels: 4
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
€2,570.00
Delivery time upon request
782615-01
NI
782615-01
NI 9220, analog input module with simultaneous sampling, 16 channels, 100 kS / s, 16 bit, +/- 10 V, D-Sub connection
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Samplerate: 100 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1
  • Max. Number of differential analogue input channels: 16
€3,230.00
Delivery time upon request
785190-02
NI
785190-02
Voltage output module of the C series NI-9264 with clamp connection, protective coating, 16 channels, 24 bit, ± 10 V, 25 kS / s per channel
  • With case: Yes
  • Max. Update rate (MS/s): 0.025
  • Samplerate: 25 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.025
  • Number of analogue output channels: 16
  • Max. Output current (mA): 4
€2,260.00
Delivery time upon request
779781-02
NI
779781-02
NI 9219, universal analog input module, 4 channels, individually isolated, protective coating
  • With case: Yes
  • Max. Number of differential analogue input channels: 4
  • Measurements per second/sampling rate (MS/s): 0.0001
  • Voltage measuring range of the analogue input (V): -125 V to 125 V, -60 V to 60 V, -4 V to 4 V, -15 V to 15 V, -1 V to 1 V
  • Samplerate: 100 S/s per channel
€2,510.00
Delivery time upon request
779516-01
NI
779516-01
NI 9203, analog input module with 8 channels, +/- 20 mA, 200 kS / s, 16 bit (screw connection)
  • With case: Yes
  • Samplerate: 200 kS/s
  • Measurements per second/sampling rate (MS/s): 0.2
  • Max. Number of differential analogue input channels: 0
€1,090.00
1 in stock. Ready to ship in 1 business day
780132-02
NI
780132-02
NI 9475 CC, power-supplying digital output module (with D-Sub, conformal coating)
  • With case: Yes
  • Number of bidirectional digital channels: 0
  • Number of digital inputs: 0
  • Logic level and range: 48 V, 12 V, 0.0V - 60.0V, 24 V
  • Logic level of the digital I/O: 48 V, 24 V, 12 V
  • Number of digital outputs: 8
€1,130.00
Delivery time upon request
779138-01
NI
779138-01
NI 9215, analog input module, 4 channels, 100 kS / s per channel, 16 bit, +/- 10 V (BNC connection)
  • With case: Yes
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Max. Number of differential analogue input channels: 4
  • Samplerate: 100 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1
€1,090.00
5 in stock. Ready to ship in 1 business day
783393-01
NI
783393-01
NI-9437 C Series High Voltage Digital Input Module with 8 Channels
  • With case: Yes
  • Number of bidirectional digital channels: 0
  • Number of digital inputs: 8
  • Number of digital outputs: 0
  • Logic level and range: 24.0V - 250.0V, 120 VDC, 96 V, 48 V, 240 VDC, 72 V, 24 V
  • Logic level of the digital I/O: 120 VDC, 96 V, 48 V, 240 VDC, 72 V, 24 V
€540.00
Delivery time upon request
783107-01
NI
783107-01
NI-9242 voltage measurement module of the C series, 250 Ueff LN, 400 Ueff LL, 50 kS / s per channel, 24 bit, 3 phases
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
  • Max. Number of differential analogue input channels: 0
  • Voltage measuring range of the analogue input (V): 400 Vrms
€2,020.00
Delivery time upon request
