Chauvin Arnoux P01191307 | CA 6611 Rotation field direction and motor rotation direction indicator

Manufacturer number: P01191307

P01191307
P01191307
P01191307
P01191307
P01191307
New
Delivery time upon request

€190.00

plus VAT. €226.10 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Chauvin Arnoux P01191307 | CA 6611 Rotation field direction and motor rotation direction indicator.

Technical Data

Documents & Downloads

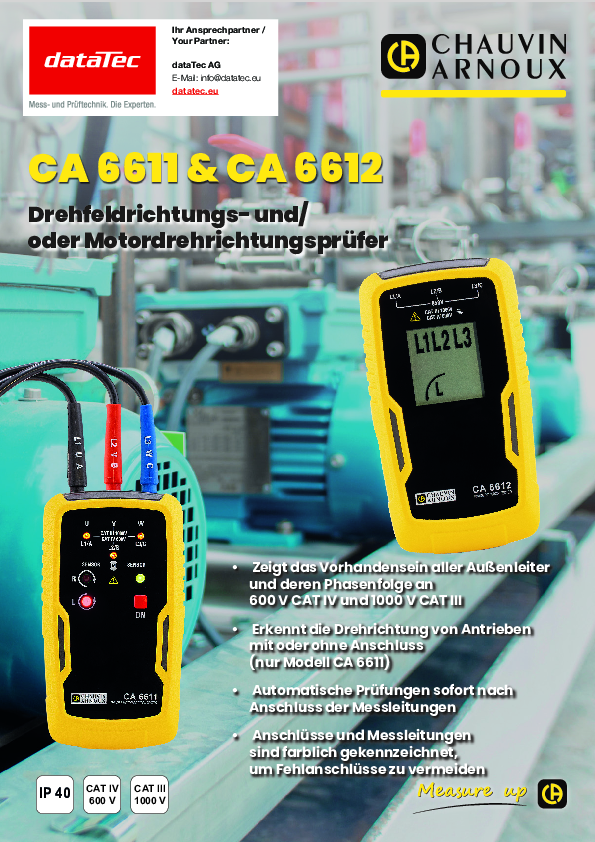

Datasheet
CA6611-CA6612
pdf | 2.41 MB

Description

P01191307 | CA 6611 Rotation field direction and motor rotation direction indicator

The CA 6611 from Chauvin Arnoux is a professional rotating-field direction and motor rotation tester designed for industrial use. The device enables quick and reliable determination of the phase sequence of phase conductors as well as the rotation direction of motors and drives—both with and without direct connection.

Thanks to automatic testing immediately after connecting the test leads, the CA 6611 provides instantly understandable results via the integrated LED display. The color-coded test leads and connection sockets minimize incorrect connections and ensure particularly simple and safe operation.

This robust device was specifically developed for testing and maintenance work in industrial plants, building services, and on electrical machines and pump systems. The magnetic back allows for convenient attachment to metal surfaces during measurement. Thanks to its high electrical safety rating of CAT III 1000 V and CAT IV 600 V, the CA 6611 is ideally suited for professional applications in industrial environments.

Product Features:

  • Product Type: Rotating Field Direction and Motor Rotation Direction Tester
  • Operating Voltage with Connection: 1 VAC to 440 VAC between outer conductors
  • Operating voltage without connection: 120 VAC to 440 VAC between outer conductors
  • Frequency range: 2 Hz to 400 Hz
  • Power supply: 9V battery
  • Electrical safety: IEC 61010-2-030, IEC 61557-7
  • Safety category: 1000 V CAT III / 600 V CAT IV
  • Protection class: IP40
  • Dimensions: 135 x 75 x 31 mm
  • Operating temperature range: 0 °C to 40 °C
  • Weight: 190 g
  • Special features:
    • Detection of rotating field direction without connection
    • Determination of the connection scheme of the outer conductors
    • Automatic tests after connecting the test leads
    • LED display for clear and quick result evaluation
    • Magnetic back for easy mounting

Scope of Delivery:

  • CA 6611 Phase Sequence and Motor Rotation Direction Tester
  • Carrying Case
  • 3 Test Leads
  • 3 Alligator Clip Clips
  • Operating Instructions (multilingual)
