B&K Precision 391B | Digital TRMS handheld multimeter, data logging, 390B series

Technical Data

Analogue segment display:	No
Article number:	BK391B
Backlight:	Yes
Basic precision:	0,03 %
Capacity measuring range:	4 nF - 40 mF
Current measuring range AC/DC:	40mA-10A / 40mA-10A
Data memory / logger:	Yes
Dimensions (L x W x H) (mm):	52 x 95 x 207
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	40,000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	40 Hz - 100 kHz
Interfaces:	IR USB
Min. / Max. Recording:	Yes / Yes
Model:	BK391B
Number of positions:	5
Resistance measuring range:	400 Ω - 40 MΩ
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	40 mV - 1000 V / 40 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.63

Documents & Downloads

Datasheet

pdf | 2.13 MB

Description

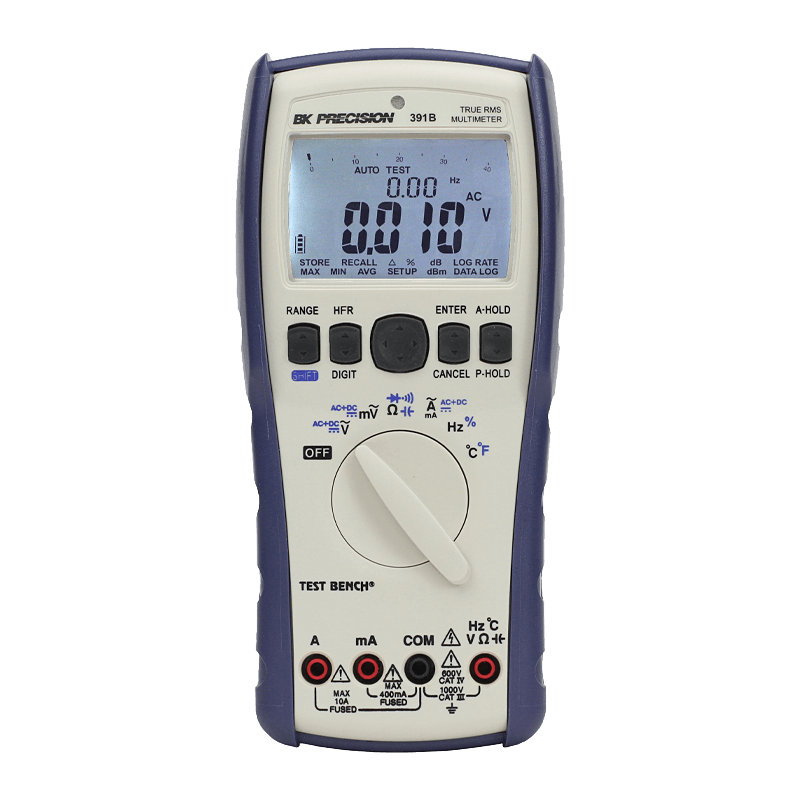

391B | Digital TRMS Handheld Multimeter, 40,000 Digits, Data Logging, 390B Series

The 390B series from B&K Precision includes high quality true RMS handheld digital multimeters specifically designed for accurate measurements in a wide range of applications. This series offers comprehensive measurement functions, including DC and AC voltage (DCV, ACV), DC and AC current (DCI, ACI), resistance, capacitance, frequency, diode test, temperature measurement and continuity testing.

The 390B series multimeters are ideal for technicians and engineers in areas such as electronics development, industrial maintenance, power supply and laboratory use. Thanks to their robust design with a dirt and water-resistant housing and a rubberized protective cover, they are also suitable for use in demanding environments.

Key features of the series:

True RMS AC and AC+DC measurements for precise results
Up to 100.000 counts on a dual display with analog bar graph
Automatic voltage detection (AutoV/LoZ) and high frequency rejection mode (HFR)
Bluetooth connectivity for wireless data logging (model 390B only)
Isolated USBinterface for remote monitoring and data logging
CAT III 1000 V / CAT IV 600 V protection for high safety

The Handheld Multimeter 391B presented here has similar specifications to the Model 390B. The main difference is the integrated Bluetooth connectivity that the 390B offers. The 391B offers a memory capacity for data logging of 20,0000 readings.

Product features:

Display: 40,000 counts
Domain accuracy (DCV): ±0.03 %
Data log capacity: 20.000 measured values
Connectivity: Isolated USB interface
Measurement functions: DCV, ACV, AC+DC, DCI, ACI, resistance, capacitance, frequency, diode test, temperature, continuity test
True RMS measurements: Yes
AutoV/LoZ mode: No
High frequency suppression: Yes (800 Hz cutoff)
Protection category: CAT III 1000 V / CAT IV 600 V
Enclosure: Water and dirt resistant with rubberized protection
Voltage ranges: 40 mV to 1000 V
Current measurement ranges: 40 mA to 10 A
Resistance measurement ranges: 400 O to 40 MO
Temperature measurement: -200 °C to 1200 °C (with K-type thermocouple)
Capacitance measurement: 40 nF to 40 mF
Power supply: 4x 1.5 V AA batteries
Dimensions: 95 mm x 207 mm x 52 mm
Weight: 630 g

Alternate products

Series

B&K Precision
390B

Digital TRMS Handheld Multimeter, 40,000 Digits, Data Logging, Bluetooth, 390B Series

Delivery time upon request

€495.00

Series

B&K Precision
393B

Digital TRMS Handheld Multimeter, 100,000 Digits, Data Logging, 390B Series

Delivery time upon request

€525.00

Series

B&K Precision

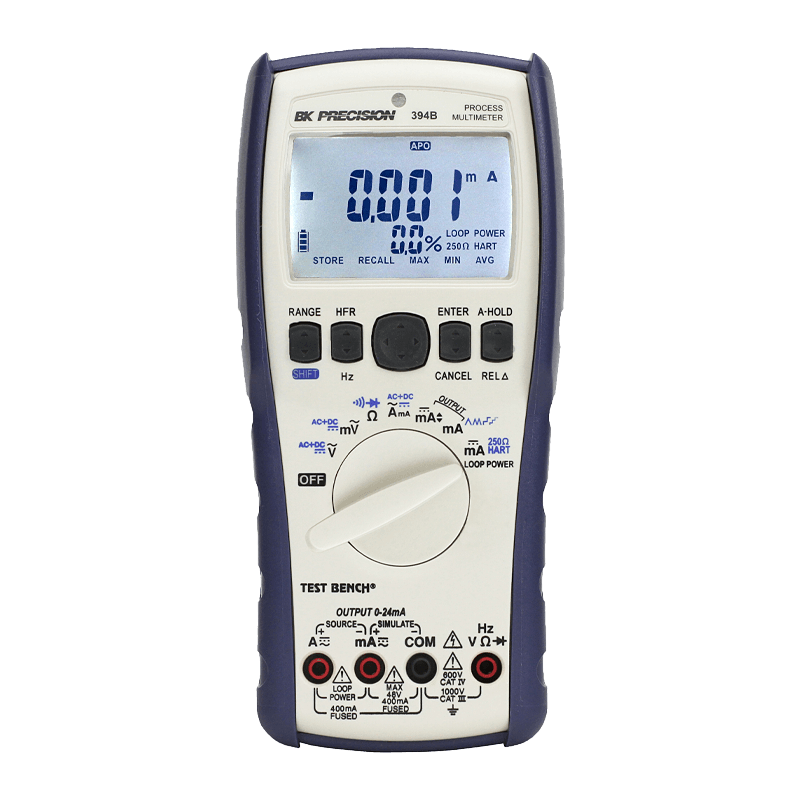

394B
