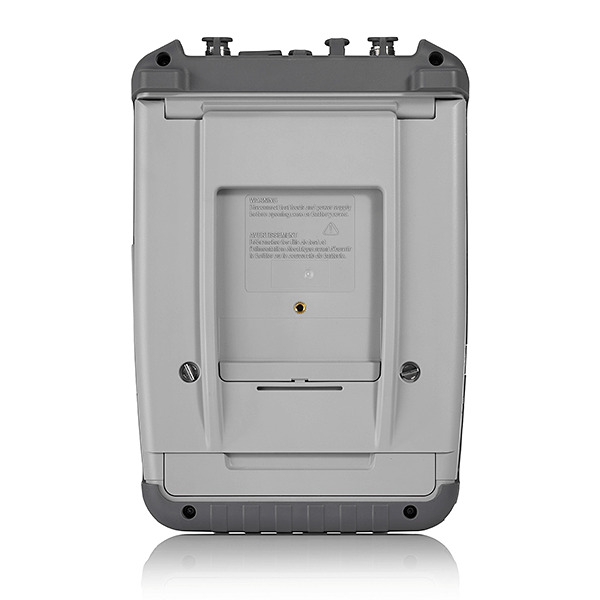

Rohde&Schwarz ZNH18 | Handheld vector network analyzer, 2-port, 30 kHz to 18 GHz, 100 dB typ. (1321.1611.18)

Manufacturer number: 1321.1611.18

ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
ZNH18
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

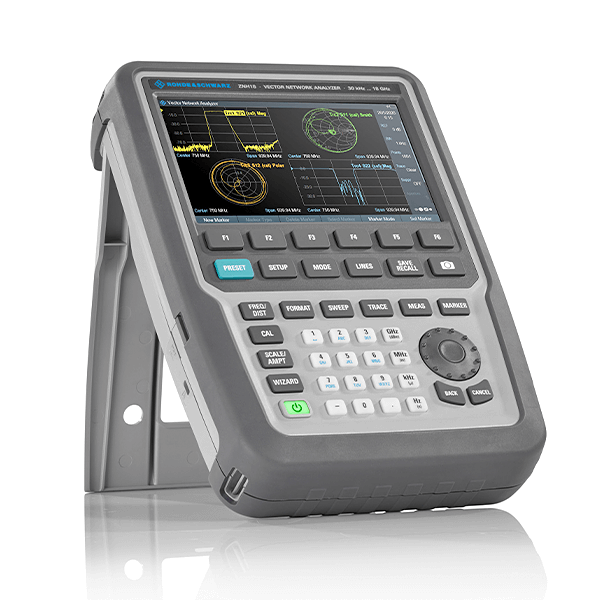

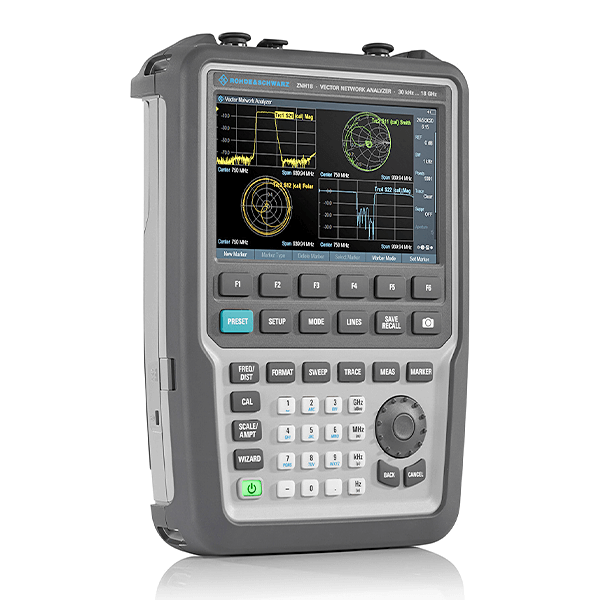

Rohde & Schwarz 1321.1611.18 | ZNH18 handheld vector network analyzer, 2-port, frequency range 30 kHz to 18 GHz, dynamic range up to 100 dB (typ.), With power measurement.

  • Frequency range: 30 kHz to 18 GHz
  • Number of measuring ports: 2
  • Maximum input power (at the test ports): 23 dBm (= 0.2 W)
  • Analysis bandwidth: 10 Hz to 100 kHz in 1/3/10 steps
  • Measurement range: -120 to +30 dB
  • High dynamic range: up to 100 dB (typ.) For antenna isolation and filter measurements
  • Frequency resolution: 1 Hz

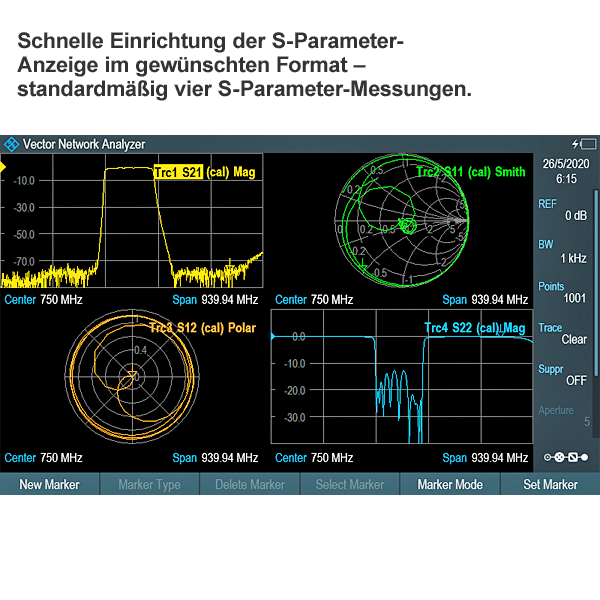

  • Standard measurement functions: 1-port cable and antenna measurement (distance-to-fault, line loss), 2-port vector network analysis of all four S parameters (S 11 , S 21 , S 12 , S 22 )
  • Optional additional functions via software keycodes: power measurement, pulse measurement, wave ratios / sizes, variable DC bias voltage source (+2 to +32 V), vector voltmeter
  • Including lithium-ion battery pack for mobile device use with an operating time of up to 4 hours
  • Display: 7-inch capacitive touchscreen, WVGA resolution (800 x 480 pixels)
  • Calibration types: one-port (OSM) and two-port calibration (TOSM, UOSM), transmission (P1 and P2), transmission (both directions)
  • Data storage: USB stick or micro SD card
  • Interfaces: LAN, Mini-USB, USB (for power probes)
  • Power supply: 100 to 240 V AC, 50/60 Hz; 14.65 to 15.45 V DC external
  • Dimensions: W 202 × H 294 × D 76 mm
  • Weight: 3.1 kg (including battery)

Documents & Downloads

Brochure
pdf | 1.50 MB
Datasheet
pdf | 0.73 MB
Userguide
pdf | 9.36 MB
Start guide
pdf | 2.85 MB

Description

ZNH18 | Handheld vector network analyzer, 2-port, 30 kHz to 18 GHz, 100 dB typ. (1321.1611.18)

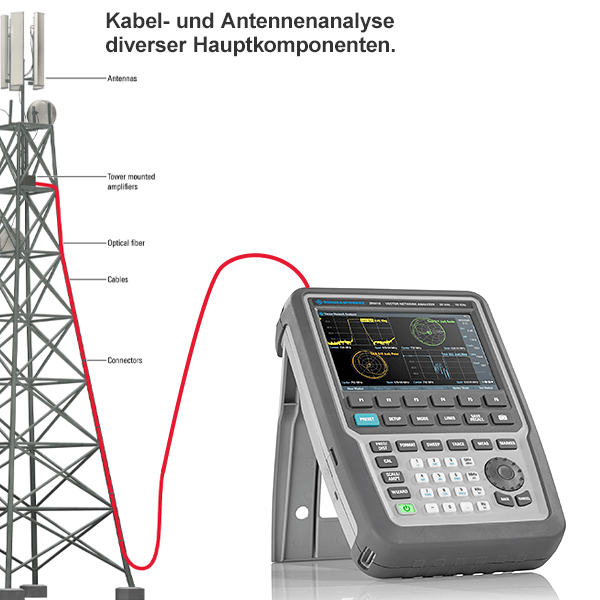

The ZNH from Rohde and Schwarz is a fully-fledged, mobile two-port vector network analyzer (VNA) for cable and antenna measurements and for complete S-parameter measurements. The focus is on simple operation with a clear menu structure, so that you can configure your measurements easily and carry them out efficiently. The handheld analyzer is suitable, for example, for the installation and maintenance of antenna systems, distance-to-fault measurements (DTF) on cables, measurement of line loss or antenna adjustment measurements.

Compact, powerful, full-fledged down to the last detail:

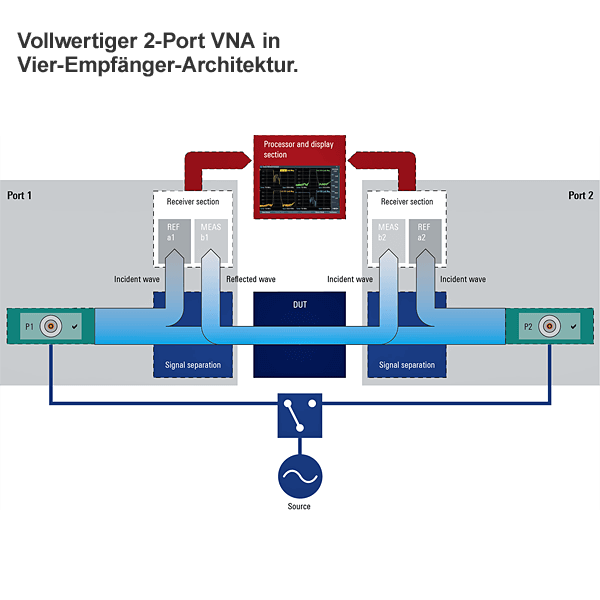

  • Strong RF performance: efficient one-port cable and antenna measurement as well as two-port measurement of all S-parameters, high dynamic range up to 100 dB (typ.) For antenna isolation and filter measurements
  • Strong additional functions: optional software key codes for power measurement, pulse measurement, DC voltage supply (bias) for active components (e.g. amplifiers), vector voltmeters, wave ratios and wave sizes
  • Mobility for on-site use: low weight of only 3.1 kg with battery, illuminated keypad, fast boot time, anti-glare display, robust IP51 housing

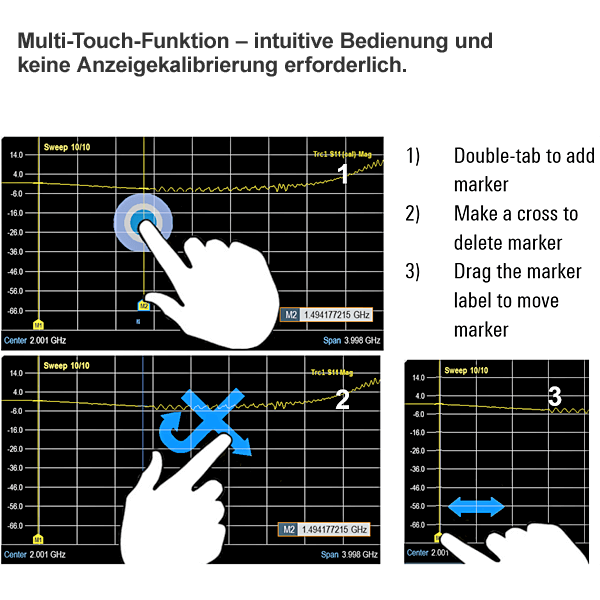

  • Intuitive operation and simple configuration: 7 "color display with touch function, clear menu structure, simplified measurements with measurement assistant, remote control via Android and iOS

The versatile handheld vector network analyzer ZNH supports you in the search for defective components in an HF communication system. The basic version of the ZNH enables one-port cable and antenna measurements as well as two-port S parameter measurements up to 26.5 GHz (ZNH26). With additional functions for power measurement, pulse measurement, wave ratios and wave sizes, radar and satellite systems can be quickly serviced and repaired.

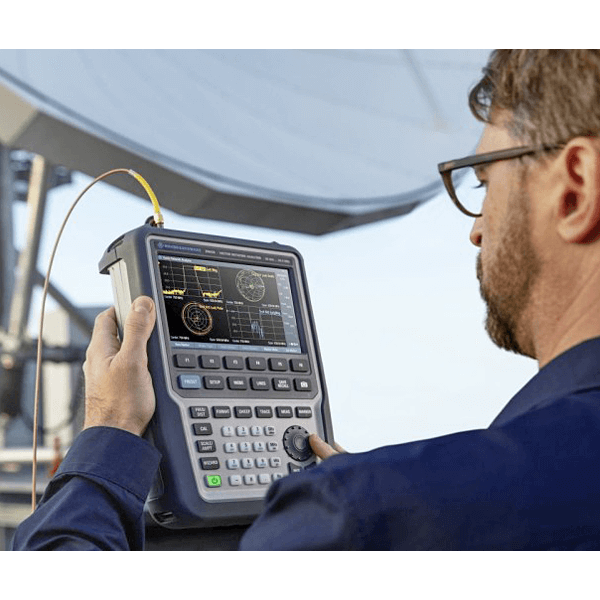

The network analyzer is also used in development, production and service environments, where measuring stations and test requirements can constantly change. Due to the robust housing with the illuminated keypad and the very easily accessible keys, it is suitable for indoor and outdoor use as well as for stationary and mobile environments.
