Tektronix AFG31021 | Arbitrary function generator, sine frequency range 1 µHz to 25 MHz, 1 channel, amplitude resolution 14 bit, advanced mode for complex arbitrary signals, with InstaView technology.

Name: AFG31021 | Arbitrary function generator, sine frequency range 1 µHz to 25 MHz, 1 channel, amplitude resolution 14 bit, advanced mode for complex arbitrary signals, with InstaView technology.
Brand: Tektronix
SKU: AFG31021
Price: 2820.0 EUR
Availability: InStock

Manufacturer number: AFG31021

Delivery time upon request

€2,820.00

plus VAT. €3,355.80 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Tektronix AFG31021 | Arbitrary function generator, sine frequency range 1 µHz to 25 MHz, 1 channel, amplitude resolution 14 bit, advanced mode for complex arbitrary signals, with InstaView technology.

Frequency range: 1 µHz to 25 MHz (sine)
Number of channels: 1
Voltage measuring range: -10 V to +10 V (DC + ACpeak)
Output amplitude voltage range: 10 mVpp to 10 Vpp (at 50 Ω load)
Sampling rate: 250 MSa / s
Vertical amplitude resolution: 14 bits
Frequency stability: ± 1 ppm, 0 to 50 ° C
InstaView technology: display of the actual signal on the DUT in real time (all signal forms except noise)
Execution modes: Continuous, Modulation, Sweep, Burst
Sequence option for programming complex waveforms with up to 256 inputs
Modulation types: AM, FM, PM, FSK, PWM
Integrated waveforms: sine, square, ramp, pulse, noise, DC, Gaussian distribution, Lorentz, exponential, window, arbitrary
Memory: 16 Mpts arbitrary signals (per channel); optional: 128 Mpts
Adjustable output impedance: 50 Ω, 1 Ω to 10 k Ω (with automatic adjustment of the amplitude display)
Outputs with overvoltage and overcurrent protection to prevent device damage
9-inch color display with touch function and intuitive user interface
Integrated ArbBuilder software for generating arbitrary functions without a separate PC
Interfaces: GPIB, Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T, USB 2.0
Dimensions: W 412.8 x H 191.8 x D 143.3 mm
Weight: 4.7 kg

Technical Data

Arbitrary Number of segments:	256
Arbitrary amplitude resolution:	14-bit
Arbitrary function:	Yes
Arbitrary sampling rate:	250 MSa/s
Arbitrary score:	2 - 131.072
Article number:	AFG31021
Burst:	Yes
Dimensions (L x W x H) (mm):	143.3 x 412.8 x 191.8
Display:	9 inch, touchscreen, 800 x 480
Frequency range pulse:	1 mHz - 20 MHz
Frequency range rectangle:	1 µHz - 20 MHz
Frequency range triangle/ramp:	1 µHz - 500 kHz
Interfaces:	LAN, USB, GPIB
Model:	AFG31021
Modulation types:	AM, FM, PM, FSK, PWM
Number of channels:	1
Special features:	optional: bandwidth upgrade, storage upgrade
Sweep:	Yes
Warranty (years):	1
Waveforms:	Sine, square, ramp, pulse, noise
Weight (kg):	4.7
max. Frequency sine (MikroHz):	25
min. Frequency sine (MikroHz):	1

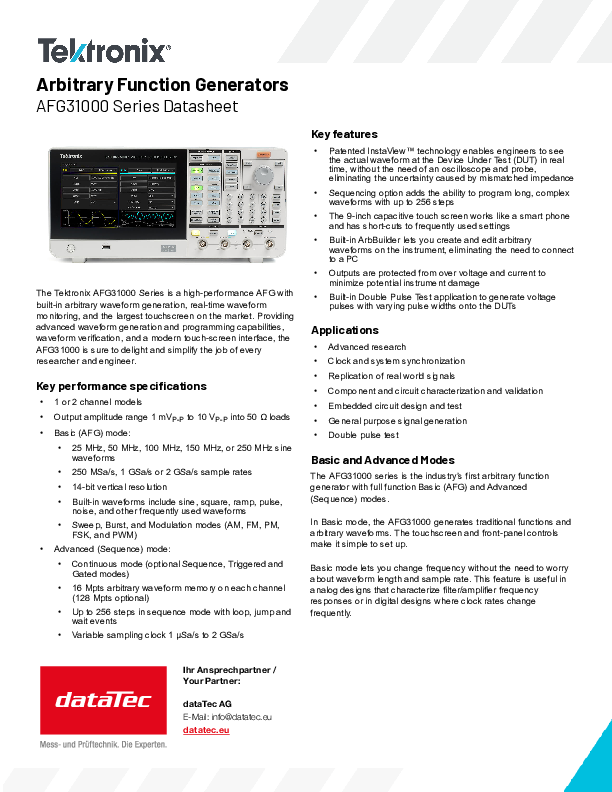

Description

AFG31021 | Arbitrary function generator, sine frequency range 1 µHz to 25 MHz, 1 channel, amplitude resolution 14 bit, advanced mode for complex arbitrary signals, with InstaView technology.

Double pulse test in less than a minute: The AFG31000 series arbitrary function generator has built-in software for double pulse tests. With this you can generate two signal forms with different pulse widths from 20 ns to 150 µs directly on the touch screen. B. measuring switching parameters or evaluating the dynamic behavior of ultra-modern power devices. No external PC applications and no manual programming are required.

With the integrated editor ArbBuilder, you can easily create and edit arbitrary signals, so that you do not need a separate PC and do not have to transfer files. The amplitude and offset parameters are saved in the signal. This means that the settings do not have to be re-parameterized after loading a normalized arbitrary signal.

In Advance Mode you can generate even more complex signals with a length of up to 16 million points per channel (optionally up to 128 million) and flexible timing and define their output sequence. The Advanced Mode supports inputs for branching, repetitions, waiting, jumping, go-to, external trigger-in, manual trigger, timed trigger as well as SCPI functions.

Secure your maximum performance for 30 days now:

Max. Output bandwidth
128Mpts memory
Sequencing mode

Check the real signal on the device under test:

With the patented InstaView technology, you can see the actual signal on your DUT directly on the display - without the need for a separate oscilloscope with probes. This saves time and eliminates potentially incorrect test results due to mismatched impedances.

Protection of investments through online upgrades:

Bandwidth, storage capacity and the sequence option can be easily retrofitted thanks to the software-based architecture, so that you can adapt and update your function generator with your changing measurement tasks.

Examples of use:

Advanced research
System and clock synchronization
Replication of real signals
Characterization and validation of components and circuits
Design and test of embedded circuits
Double pulse test

Lieferumfang

Compliance, installation and security instructions
BNC cable, shielded, 90 cm
USB cable, A to B, 90 cm
50 Ω BNC terminator
Power cord
Calibration certificate
