Rohde&Schwarz 1321.1111.06 | FPH .06 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 6 GHz

Name: 1321.1111.06 | FPH .06 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 6 GHz
Brand: Rohde&Schwarz
SKU: 1321.1111.06
Price: 8420.0 EUR
Availability: OutOfStock

Manufacturer number: 1321.1111.06

Delivery time upon request

€8,420.00

plus VAT. €10,019.80 VAT plus shipping costs

We are there for you!

We would be happy to advice you on which alternative best suites your requirements

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Request educational price

Rohde & Schwarz FPH .06 | Spectrum Rider FPH, portable signal and spectrum analyzer, frequency range 5 kHz to 6 GHz, up to 7 h battery operation (1321.1111.06).

Frequency range: 5 kHz to 6 GHz (optionally expandable)
Resolution bandwidth (-3 dB): 1 Hz to 3 MHz in 1/3 sequence
Phase noise: typically -105 dBc (1 Hz, at 100 kHz carrier spacing
TOI measurement: +10 dBm (f = 2.4 GHz)
DANL self-noise display: typically –162 dBm (20 MHz to 3 GHz, preamplifier on)
Maximum input power: 36 dBm
Marker resolution: 1 Hz
Battery operation: lithium-ion battery pack, operating time up to 7 h
Data storage: internal, USB stick, micro SD
Color display: WVGA, 800 x 480 pixels
Interfaces: 2x USB 2.0 Type A, Mini-USB 2.0 Type B, LAN 10 / 100BASE-T, external trigger / reference
Power supply: 100 to 240 V AC, 50/60 and 400 Hz
Dimensions: W 202 × H 294 × D 76 mm
Weight: 2.5 kg
Warranty: 3 years (1 year on battery and accessories)

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Amplitude range:	-158 dBm bis 33 dBm
Analysis bandwidth (MHz):	2
Article number:	1321.1111.06
DANL Displayed Average Noise:	ca.-158 dBm
Demodulations:	AM/FM optional
Detectors:	max. peak, min. peak, auto peak, sample, RMS
Dimensions (L x W x H) (mm):	76 x 202 x 294
Dynamics:	191 dB
Filter bandwidths:	1 Hz bis 3 MHz in 1/3 Sequenz
Frequency stability:	0,5 ppm
Interfaces:	LAN, USB
Measurement functions:	Sechs Marker absolut oder relativ Rauschmarker Frequenzzähler FPH-K7 Analoge Modulationsanalyse AM/FM FPH-K9 Unterstützung von Leistungsmessköpfen FPH-K15 Störsignalanalyse FPH-K16 Kartierung von Signalstärken FPH-K19 Kanalleistungsmesser FPH-K29 Pulsmess
Model:	FPH (.06)
Resolution bandwidth:	1 Hz
SSB phase noise:	500 MHz (30 kHz carrier offset) <-88 dBc/Hz
Screen size:	7"
Screen type:	WVGA 800px x 480px
Special features:	Geringes Gewicht kleiner Formfaktor und lange Akkulaufzeit reflexionsfreies Display mit SW Update auf bis 8 GHz optional Startfrequenz 100 Hz
Sweep:	linear
Tracking-Generator:	Nein
Warranty (years):	3
Weight (kg):	2.5
max. Frequency range (GHz):	8
min. Frequency range (kHz):	5

Detaildescription

1321.1111.06 | FPH .06 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 6 GHz

The portable Spectrum Rider FPH from Rohe and Schwarz is a versatile spectrum analyzer with a compact, robust design. Users benefit from an economical frequency expansion concept that is based on keycodes and thus adapts to your current requirements. The handheld spectrum analyzers FPH support a wide frequency range up to 31 GHz (option). The FPH .06 model offers you a frequency range from 5 kHz to 6 GHz.

Compact design for big tasks:

Ideal for field use: up to 7 hours of battery life, illuminated keypad, fast boot time, reflection-free display
Easy handling: large, clear color display with intuitive touch and gesture operation
More productivity with the measurement wizard: fast, reproducible measurements through automation, standardization and optimization of measurement sequences
Data processing and remote control: USB or LAN interface for fast data transfer and easy processing and documentation of the measurement results
Diverse spectrum analysis: e.g. B. for mobile communications, radar and satellite communications, broadcasting
Cost-effective and future-proof: simple expansion of all options using a software keycode

Optimal performance for diagnostics in the laboratory:

With a phase noise of –105 dBc (1 Hz, at 100 kHz carrier spacing) and a high sensitivity (DANL –162 dBm typ., 20 MHz to 3 GHz, preamplifier on), the Spectrum Rider FPH .06 is a powerful and very user-friendly spectrum analyzer for HF diagnostics in service and development laboratories, e.g. B. for precise measurements of frequency and amplitude, for adaptation of frequency references, measurements on pulsed signals in the time domain or for measurement of secondary emissions, harmonics and intermodulation products.

Lieferumfang

Handheld spectrum analyzer FPH .06
Lithium-ion battery pack
USB cable
Quick start guide
Power cord
Tether

Accessoires (15 products )

Rohde&Schwarz 1309.6152.00

HA-Z210 replacement Ethernet cable, length: 2 m, for PR100, FSH4 / 8 and ETH

Delivery time upon request

€27.00

Serie

Serie

Rohde&Schwarz 1321.1111.02

FPH .02 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 2 GHz

Delivery time upon request

€5,200.00

Rohde&Schwarz 1321.1370.03

HA-Z322 carrying holster, water-repellent, for FPH, ZPH and RTH

Delivery time upon request

€390.00

Rohde&Schwarz HA-Z220

Carrying bag for RTH100x

Delivery time upon request

€330.00

Rohde&Schwarz HA-Z321

Cases for handhelds and accessories

Delivery time upon request

€435.00

Rohde&Schwarz RTH-Z4

Hard case carrying case for oscilloscope RTH100x (1326.2774.02)

Delivery time upon request

€260.00

Rohde&Schwarz 1145.5838.02

FSH-Z36 replacement headphones for FSH3 / 6/18, FSH 4/8

Delivery time upon request

€35.70

Rohde&Schwarz 1309.6169.00

HA-Z211 replacement USB cable, with standard and mini USB connections, length: 1.8m

Delivery time upon request

€36.00

Rohde&Schwarz 1321.1340.02

HA-Z302 car charger, with connector for cigarette lighter

Delivery time upon request

€140.00

Rohde&Schwarz 1321.1370.02

HA-Z322 carrying holster for FPH, ZPH and RTH

Delivery time upon request

€350.00

Rohde&Schwarz HA-Z306

Lithium-ion battery 6.4Ah

Delivery time upon request

€345.00

Rohde&Schwarz 1321.1328.02

HA-Z303 charger for 6.4 Ah lithium-ion battery

Delivery time upon request

€375.00

Rohde&Schwarz 1321.1386.02

HA-Z301 replacement power supply, incl. Power adapter for EU, GB, CH, AUS and USA

Delivery time upon request

€195.00

Rohde&Schwarz 4104.8402.02

HE400LP Portable directional antenna, frequency range 450 MHz to 8 GHz

Delivery time upon request

On Request

Rohde&Schwarz 1321.1392.02

HA-Z340 GPS receiver for FPH series

Delivery time upon request

€335.00

Alternate products (23 products )

Serie

Rohde&Schwarz 1321.1111.02

FPH .02 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 2 GHz

Delivery time upon request

€5,200.00

Serie

Serie

Rohde&Schwarz 1321.1111.13

FPH .13 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 13.6 GHz

Delivery time upon request

€13,260.00

Serie

Serie

Rohde&Schwarz 1321.1111.26

FPH .26 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 26.5 GHz

Delivery time upon request

€22,440.00

Serie

Serie

Rohde&Schwarz 1321.1111.56

FPH .56 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 6 GHz

Delivery time upon request

€7,860.00

Serie

Serie

Rohde&Schwarz 1321.1111.63

FPH .63 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 13.6 GHz

Delivery time upon request

€12,250.00

Serie

Serie

Rohde&Schwarz 1321.1111.76

FPH .76 Spectrum Rider FPH, handheld spectrum analyzer, 5 kHz to 26 GHz

Delivery time upon request

€20,570.00

Rohde&Schwarz 1309.6000.08

FSH8 spectrum analyzer, handheld, 9 kHz - 8 GHz, preamplifier

Delivery time upon request

€13,160.00

Rohde&Schwarz 1314.2000.23

FSH13 spectrum analyzer, handheld, 9kHz - 13.6GHz preamplifier, tracking generator, VSWR measuring bridge

Delivery time upon request

€21,830.00

Rohde&Schwarz 1309.6000.24

FSH4 spectrum analyzer, handheld, 100kHz - 3.6GHz preamplifier, tracking generator, VSWR measuring bridge

Delivery time upon request

€15,270.00

Rohde&Schwarz 1314.2000.20

FSH20 spectrum analyzer, handheld, 9 kHz - 20 GHz preamplifier

Delivery time upon request

€22,930.00

Rohde&Schwarz 1309.6000.18

FSH8 spectrum analyzer, handheld, 9 kHz - 8 GHz, preamplifier, tracking generator

Delivery time upon request

€14,970.00

Rohde&Schwarz 1309.6800.28

ZVH8 cable and antenna analyzer, handheld 100 kHz - 8 GHz

Delivery time upon request

€9,940.00

Rohde&Schwarz 1309.6000.14

FSH4 spectrum analyzer, handheld, 9 kHz - 3.6 GHz preamplifier, tracking generator

Delivery time upon request

€12,320.00

Rohde&Schwarz 1314.2000.13

FSH13 spectrum analyzer, handheld, 9kHz - 13.6GHz preamplifier

Delivery time upon request

€18,110.00

Rohde&Schwarz 1314.2000.30

FSH20 spectrum analyzer, handheld, 9 kHz - 20 GHz preamplifier, tracking generator, VSWR measuring bridge

Delivery time upon request

€26,120.00

Rohde&Schwarz 1309.6000.28

FSH8 spectrum analyzer, handheld, 100 kHz - 8 GHz preamplifier, tracking generator, VSWR measuring bridge

Delivery time upon request

€20,750.00

Rohde&Schwarz 1309.6800.24

ZVH4 cable and antenna analyzer, handheld 100 kHz - 3.6 GHz

Delivery time upon request

€8,020.00

Serie

Serie

Rohde&Schwarz 1321.1711.23

FPH .23 spectrum analyzer, handheld, spectrum rider, 5 kHz to 13.6 GHz with tracking generator

Delivery time upon request

€18,230.00

Serie

Serie

Rohde&Schwarz 1321.1711.36

FPH .36 spectrum analyzer, handheld, spectrum rider, 5 kHz to 26.5 GHz with tracking generator

Delivery time upon request

€30,390.00

Serie

Serie

Rohde&Schwarz 1321.1711.44

FPH spectrum analyzer, handheld, spectrum rider, 5 kHz to 44 GHz

Delivery time upon request

€38,890.00

Serie

Serie

Rohde&Schwarz 1321.1711.54

FPH spectrum analyzer, handheld, spectrum rider, 5 kHz to 44 GHz with tracking generator

Delivery time upon request

€48,630.00

Rohde&Schwarz HA-Z900

Yagi antenna 824MHz - 960MHz (1328.6283.02)

Delivery time upon request

€865.00

Rohde&Schwarz HA-Z1900

Yagi antenna, 1710MHz to 1990MHz (1328.6825.02)

Delivery time upon request

€865.00

Recommendations (27 products )

Rohde&Schwarz NRP-Z211

2-Pfad USB Leistungsmesskopf für universelle Anwendungen, Kabellänge 1,6 m (1417.0409.02)

Delivery time upon request

€3,120.00

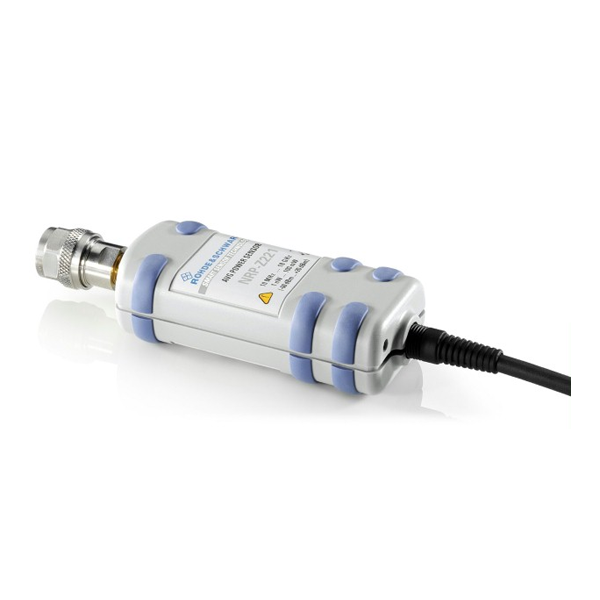

Rohde&Schwarz 1417.0309.02
