BEHA ACD-14-PRO-EUR | True effective AC alternating current clamp, TRMS, dual display, 600 A, opening 30 mm

Name: ACD-14-PRO-EUR | True effective AC alternating current clamp, TRMS, dual display, 600 A, opening 30 mm
Brand: BEHA
SKU: ACD-14-PRO-EUR
Availability: OutOfStock

Manufacturer number: ACD-14-PRO-EUR

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.

BEHA Amprobe ACD-14-PRO-EUR | Truly effective AC alternating current clamp, TRMS, dual display for simultaneous measurement of voltage and current, 600 A, clamp opening 30 mm.

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±1,8 % (AC) / ±1,0 % (DC)
Accuracy voltage measurement AC/DC:	±1 % (AC) / ±1 % (DC)
Article number:	4718989
Current measuring range AC/DC:	0,1A - 600A (AC) / 1uA - 2000uA (DC)
Dimensions (L x W x H) (mm):	219 x 77 x 37
Diode test / continuity test:	Ja / Ja
Direction of rotation:	Nein
Enclosure (mm):	30
Frequency measuring range:	5 Hz - 999,9 Hz
Hold:	Ja
Measurement method:	TRMS
Min. / Max. Measurement:	Nein / Nein
Model:	BEHA ACD-14-PRO-EUR
Number of positions:	3.75
Power factor:	Nein
Power measurement (active / apparent / reactive):	Nein / Nein / Nein
Resistance measuring range:	0 Ohm - 60 kOhm
Resolution current measurement AC/DC:	+ 5 Digits AC/ +5 Digits DC
Resolution voltage measurement AC/DC:	+ 5 Digits AC/ + 5 Digits DC
Temperature measuring range:	- 40°C bis 400°C
Voltage measuring range AC/DC:	0 - 600V (AC) / 0 - 600V (DC)
Weight (kg):	0.208

Documents & Downloads

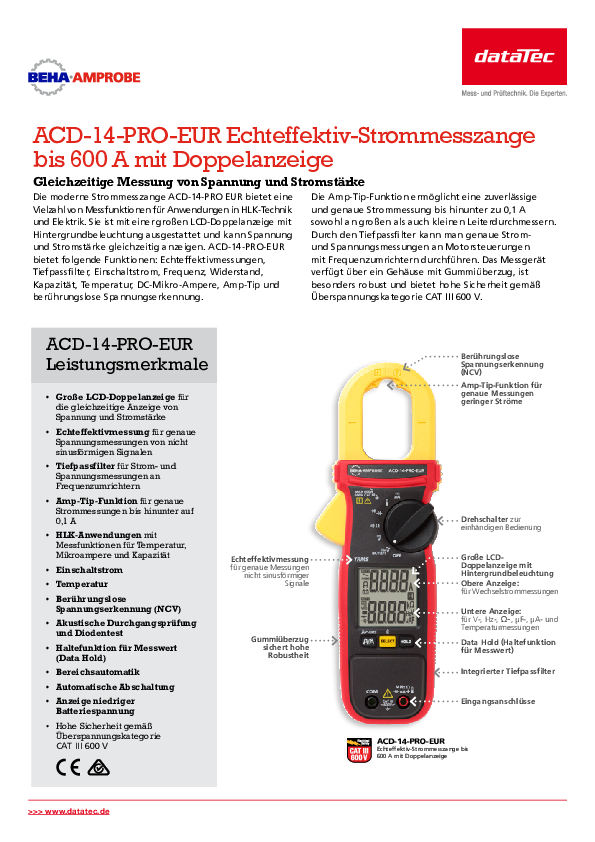

Datasheet

pdf | 0.72 MB

Detaildescription

ACD-14-PRO-EUR | True effective AC alternating current clamp, TRMS, dual display, 600 A, opening 30 mm

The modern clamp meter Beha Amprobe ACD-14-PRO EUR offers a variety of measurement functions for applications in HVAC technology and electronics. It is equipped with a large double LCD display with backlighting and can display voltage and current at the same time.

The ACD-14-PRO offers the following functions: true effective measurements, low-pass filter, inrush current, frequency, resistance, capacitance, temperature, DC micro-amps, amp-tip and contactless voltage detection.

The amp-tip function enables reliable and accurate current measurement down to 0.1 A on both large and small conductor diameters. The low-pass filter enables precise current and voltage measurements to be carried out on motor controls with frequency converters. The measuring device has a housing with a rubber cover, is particularly robust and offers a high level of safety in accordance with overvoltage category CAT III 600 V.

Measurement functions:

Current measurement real effective (TRMS)
Voltage and resistance measurement
Capacity and frequency measurement
Temperature measurement
Acoustic continuity test
Low pass filter
Measurement of the inrush current
Contactless voltage detection

Product features:

Dual display with lighting
Accurate measurement of small alternating currents (amp tip)
Measurement of the ionization current (μA direct current range) in heating systems
Real effective measurement (TRMS)
Automatic measuring range selection
Integrated measured value memory (data hold)
Pliers opening 30mm
Auto power off

Alternate products (3 products )

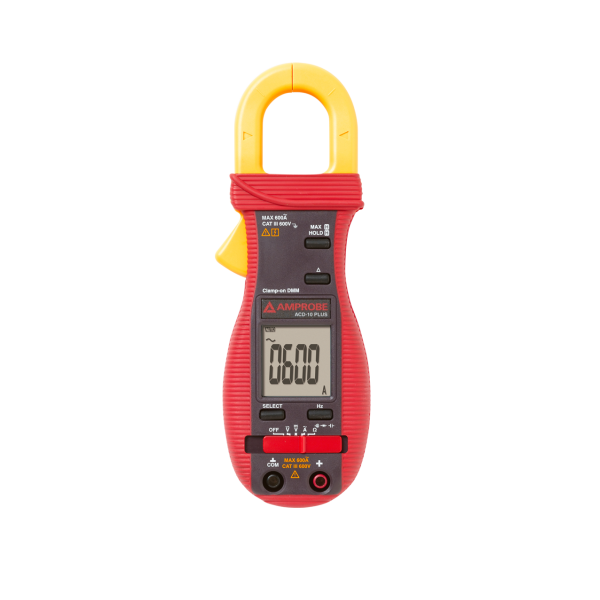

BEHA ACD-10 PLUS

AC current clamp, 600 A, frequency, capacity, diode test, and much more

Delivery time upon request

On Request

BEHA ACD-23SW

Real effective AC current clamp with rotating head, TRMS, 400A, temperature & capacity, opening 30 mm

Delivery time upon request

On Request

BEHA ACD-14 TRMS-D

AC TRMS AC current clamp with dual display, 600 A, clamp opening 26 mm

Delivery time upon request

On Request

About the Manufacturer

BEHA

With a combined experience of more than 100 years, the well-known German brand BEHA and the American brand Amprobe have a track record to be proud of. From multimeters to voltage testers, Beha-Amprobe is constantly improving designs and functionality to bring you the very best quality tools.
