Keysight E8486A | Power Sensor, Waveguide E-Band, 60 to 90 GHz

Manufacturer number: E8486A

Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A
Keysight E8486A

2 in stock. Ready to ship in 1 business day

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Highlights Documents & Downloads Description Related Articles

Keysight E8486A power sensor for waveguides, compatible with Keysights power meters.

  • Frequency range: 60 to 90 GHz
  • Compatible with all Keysight -HF- u. Microwave power measuring devices
  • Best standing wave ratio: 1.06
  • Calibration input: 50 MHz, 50 Ω, N connector
  • High reliability
  • Waveguide flange: UG-387 / U, EIA WR-12
  • Dimensions: 38mm (W) x 199mm (L) x 60mm (H)
  • Weight: 0.4 kg
  • Warranty: 3 years

Options:

E8486A-100: Measuring linearity:

  • -30 to +10 dBm: <± 1% at 200 mW average power
  • +10 to +20 dBm: <± 2% for the series of EPM measuring devices at 40 W peak power with pulse of 10 µs and duty cycle of 0.5%
  • +10 to +20 dBm: <+1, -3% for all other Keysight power measuring devices at 40 W peak power with pulse of 10 µs and duty cycle of 0.5%
  • Standing wave ratio: <1.06

E8486A-200 (optional): measurement linearity:

  • -60 to -30 dBm: <± 1.5% at 200 mW average power
  • -30 to +10 dBm; <± 1% at 1 W peak power with a pulse of 10 µs and a duty cycle of 0.5%
  • +10 to +20 dBm: <1.5% at 1 W peak power with pulse of 10 µs and duty cycle of 0.5%
  • Standing wave ratio: <1.28

E8486A-201 (optional):

  • Supports extended frequency range from 54 GHz to 86 GHz

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

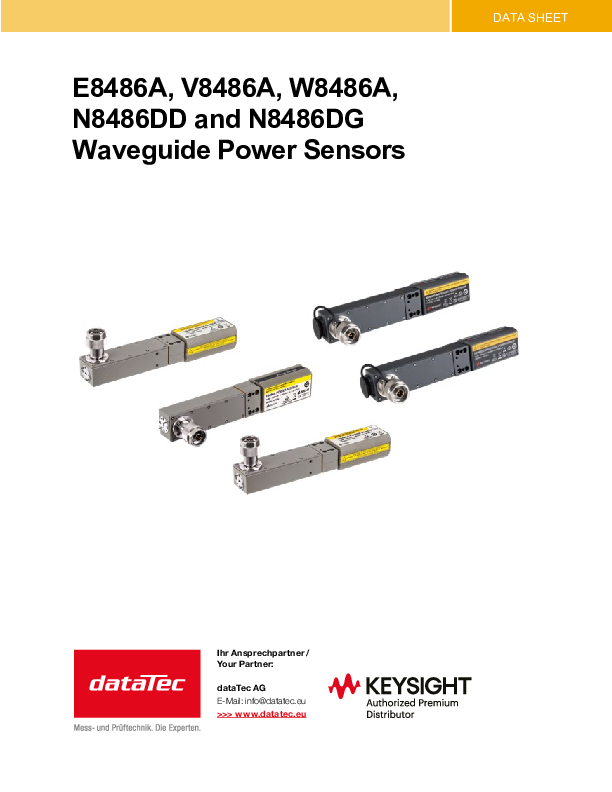

Datasheet
pdf | 1.39 MB

Detaildescription

E8486A | Power Sensor, Waveguide E-Band, 60 to 90 GHz

The Keysight waveguide power sensor E8486A is compatible with the Keysight power meters EPM (E4418B / 19B, N1913A / 14A), EPM-P (E4416A / 17A) and P-Series (N1911A / 12A). and has the best standing wave ratio available on the market.

Best standing wave ratio The most important source of error when measuring power in the HF or microwave range is the mismatch between the measuring head and the signal source. To eliminate this measurement uncertainty, Keysight offers a standing wave ratio of 1.06 (> 30 dB return loss) for its measuring heads.

50 MHz calibration For easy calibration of the power sensors, they have a 50 MHz calibration input. This eliminates the measurement variance when measuring with different measuring heads and at different temperatures. The traceability of the power measurement to the NIST standard (US National Institute of Standard and Technology) for the millimeter wavelength range is also given.

High reliability The waveguide power sensors use the proven MBI diodes (Modified Barrier Integrated Diode), as they are used for all other Keysight sensors. For an exact averaging, these diodes are operated in the characteristic curve area that follows the root law.
