Gossen Metrawatt METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)

Name: METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)
Brand: Gossen Metrawatt
SKU: M227F
Price: 4490.0 EUR
Availability: BackOrder

Manufacturer number: M227F

Ready to ship in 5 to 10 business days

€4,490.00

plus VAT. €5,343.10 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

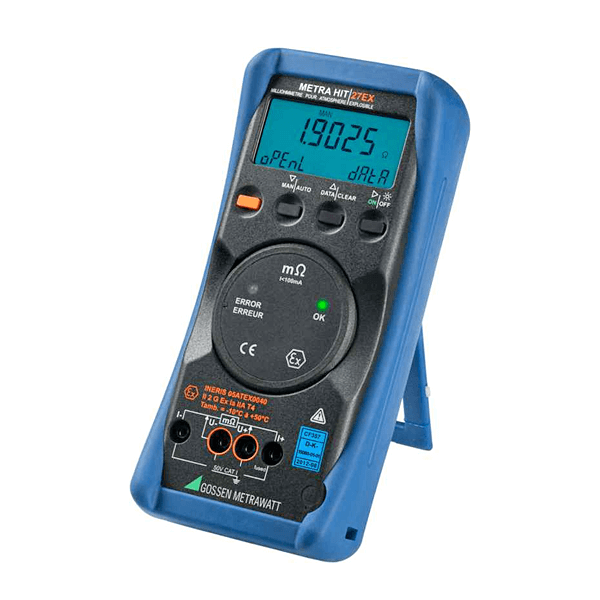

Gossen Metrawatt M227F | 4 ¾ milliohmmeter METRAHIT 27EX for use in hazardous areas.

Measuring ranges: 30 mΩ, 300 mΩ, 3 Ω, 30 Ω
Resolution: 10 μΩ
Measuring method: Kelvin connection (four-wire measurement)
DATA hold memory: 1200 measured values
EX marking: Ex II 2 G EEx ia IIA T4
Type examination certificate: INERIS 05ATEX0040
DAkkS calibration certificate

Technical Data

Analogue segment display:	No
Article number:	M227F
Backlight:	Yes
Capacity measuring range:	No
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	195 x 84 x 35
Diode test / continuity test:	No / No
Display Hold / Auto-Hold:	No / No
Display resolution:	30000
Electrical safety:	CAT I 50 V
Frequency measuring range:	No
Interfaces:	None
Min. / Max. Recording:	No / No
Model:	Metrahit 27EX
Number of positions:	4.75
Resistance measuring range:	30 mΩ - 30 Ω
Special features:	including DakkS calibration certificate, 2-W/4-W measurement
Temperature measurement ( PT100 / Type K / Type J):	No
True effective measurement TRMS:	No
Warranty (years):	3
Weight (kg):	0.38

Documents & Downloads

Datasheet

pdf | 0.65 MB

Description

METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)

Compact 4 ¾ digit milliohmmeter for measuring low-resistance transitions in potentially explosive areas. B. contacts inside the aircraft tank (bonding test) and for general low-ohm measurements inside or outside the Ex area z. B. on the aircraft outer skin (lightning protection, "dissipation test" (Wick test))

Lieferumfang

Milliohmmeter with Kelvin probe KC27, Kelvin clip KC4, 8 NiMH batteries Z206E, rubber protective cover, hard case HC30, operating instructions, DAkkS calibration certificate
