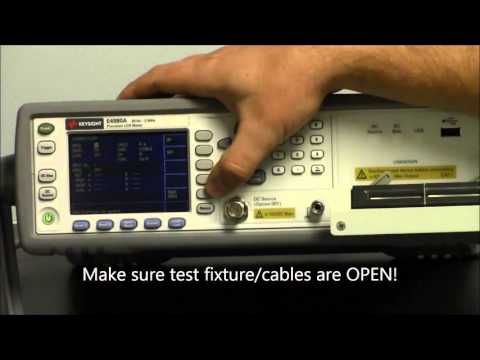

Keysight E4980A | LCR meter / component tester, 20 Hz to 2 MHz, opt. DC bias

Manufacturer number: E4980A

E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
E4980A
Exclusive
3 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight E4980A | Precision LCR component testers with test frequencies from 20 Hz to 2 MHz.

  • Accuracy in impedance measurements due to extremely low noise in both the high and low impedance range
  • 0.05% base accuracy for impedance measurements
  • DC bias 1 m / 2 m / 4 m measuring cable lengths
  • Idle, short circuit and load correction
  • DC voltage source with extremely low noise from 0 to ± 10 V
  • USB interface built-in on the front panel (with option 001) for storing measurement results, settings, measurement sequences and display representations
  • AC characterization of the DUT (device under test) from 100 µVrms to 2 Vrms (optionally 20 Vrms) and a measuring current from 1 µA to 20 mA
  • Standard DC power source of 1.5 V and 2 V (optionally from 0 to ± 40 V including automatic polarity control) for the wafer supply and for measuring material properties
  • Over 30 different measuring adapters with the most diverse test specimen recordings - even for liquid materials
  • Frequency range: 20 Hz to 2 MHz with a 4-digit resolution in each frequency range
  • Basic accuracy: 0.05% with exceptionally good repeatability for high and low impedance measurements with DC power supply for the DUT (test object)
  • 16 impedance parameters can be measured.
  • Measuring options: Z, Y, θ, R, X, G, B, L, C, D, Q, ESR, Rdc, (with option 001: Vdc, Idc), deviation,% of deviation
  • Test signal frequencies 0 to 2 Vrms / 0 to 20 mArms (0 to 20 Vrms / 0 to 100 mArms with option 001)
  • Built-in 40 V DC voltage source, 20 Vrms test signal and resistance measurements with DC voltage levels (these options only in connection with option 001)
  • Shortest measuring time 5.6 ms
  • Measuring times can be set in: short 5.6 ms - medium 88 ms - long 220 ms
  • 201 measuring points with automatic sweep (wobble)
  • Optional handler interface
  • Optional scanner interface
  • PC / network connections: LAN, USB, GPIB
  • Weight 5.3 kg
  • Dimensions W370 x H105 x D390

Areas of application:

  • In the material test to determine the relative dielectric constant or relative permeability
  • When testing electronic components for measuring resistance, inductance and capacitance
  • Production and development as well as for applications in standard laboratories

Technical Data

Documents & Downloads

Datasheet
E4980A
pdf | 1.67 MB
Configuration guide
E4980A
pdf | 0.64 MB

Description

E4980A | LCR meter / component tester, 20 Hz to 2 MHz, opt. DC bias

The standard for impedance measurement of materials and electronic components in the low-frequency range - precise, fast and adaptable to all measurement requirements thanks to 30 different measurement adapters and recordings.

The LCR-Meter E4980A offers the best symbiosis between accuracy and measuring speed to determine the relative permeability and the relative dielectric constant of materials of all kinds or to measure the essential electrical parameters such as resistance, capacitance and inductance - and that with the highest precision in both the high and low impedance range. Appropriate measurement recordings, built-in power supplies, which supply the test specimen with voltage and current, and built-in multimeter functions make work easier and reduce the measurement effort.
