PXI Modules

NI (National Instruments) PXI modules interface to bus standards and can be used to acquire data and images, trigger and synchronize measurement devices, generate and route signals, control motion, and perform a variety of measurements.

355 products

NI
785598-02

PXIe-5745, FlexRIO signal generator with AO filter, 2 channels, 6.4 GS / s, 12 bit, KU060

Max. Update rate (MS/s): 6400
Number of channels: 2
With case: Yes
Samplerate: 6.4 GS/s
Measurements per second/sampling rate (MS/s): 6400

CHF 32,200.00

Delivery time upon request

NI
781052-01

PXIe-6341, X-Series DAQ Module (16 AI, 24 DIO, 2 AO)

With case: Yes
Voltage measuring range of the analogue input (V): -0.2 V to 0.2 V, -10 V to 10 V, -5 V to 5 V, -1 V to 1 V
Number of bidirectional digital channels: 24
Samplerate: 500 kS/s
Number of analogue output channels: 2
Number of counters/timers: 4
Max. Number of differential analogue input channels: 8
Measurements per second/sampling rate (MS/s): 0.5
Max. Update rate (MS/s): 0.9

CHF 2,330.00

3 in stock. Ready to ship in 1 business day

NI
778275-01

NI PCI-4070 Flex digital multimeter with 6 1/2 digits, 1.8 MS/s digitizer, 300 V, 1 A

With case: Yes
Samplerate: 1.8 MS/s
Measurements per second/sampling rate (MS/s): 1.8
min. Measuring range DC (mV): -300000
max. Measuring range DC (V): 300
Number of positions: 6.5

CHF 5,420.00

Delivery time upon request

NI
784483-01

Precision SMU NI PXIe-4163 with 24 channels, 24 V.

With case: Yes
max. Power (A): 0.03
Number of SMU channels: 24
Number of analogue output channels: 24
Max. DC source power (W): 12

CHF 40,500.00

Delivery time upon request

NI
780587-24

PXIe-2524 2 A, 1-wire multibank multiplexer (16 banks of 8x1)

With case: Yes
Relaistyp: Electromechanical

CHF 3,150.00

Delivery time upon request

NI
783591-01

PXIe-5114, 8-bit oscilloscope with 2 channels (125 MHz, 250 MS / s, 8 MB per channel)

Number of channels: 2
With case: Yes
Bandwidth (MHz): 125
Samplerate: 250 MS/s
Voltage measuring range of the analogue input (V): -20 V to 20 V
Measurements per second/sampling rate (MS/s): 250

CHF 5,660.00

Delivery time upon request

NI
780587-40

NI PXIe-2540, RF matrix, 8x9

With case: Yes
Relaistyp: Reed

CHF 4,950.00

Backordered - Incoming goods. Delivery time on request

NI
779967-01

PXIe-5122, 14-bit oscilloscope with 2 channels (100 MHz, 100 MS / s, 8 MB per channel)

Number of channels: 2
With case: Yes
Samplerate: 100 MS/s
Voltage measuring range of the analogue input (V): -10 V to 10 V
Measurements per second/sampling rate (MS/s): 100
Bandwidth (MHz): 100

CHF 16,000.00

Delivery time upon request

NI
780587-48

NI PXIe-2748, 16x1 multiplexer with terminating resistor, 3 GHz

With case: Yes
Relaistyp: Electromechanical

CHF 5,120.00

Delivery time upon request

NI
778834-01

NI PCI-6624, Industrial module for counter/timer-based acquisition, 8 channels, isolated per channel for 48 V, NI-DAQ

With case: Yes
Number of bidirectional digital channels: 0
Logic level of the digital I/O: 48 V
Logic level and range: 48 V
Number of counters/timers: 8

CHF 3,050.00

Delivery time upon request

NI
782110-01

NI PXI-6683H, timing and synchronization module with TCXO (GPS, IRIG-B, IEEE 1588)

With case: Yes

CHF 4,580.00

Delivery time upon request

NI
781742-01

NI PXIe-4140, SMU with 4 channels

With case: Yes
max. Power (A): 0.1
Number of analogue output channels: 4
Max. DC source power (W): 1
Number of SMU channels: 4
Max. Number of differential analogue input channels: 4

CHF 11,500.00

Delivery time upon request

NI
785808-01

PXIe-6349, multifunction I / O module: 32 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO

With case: Yes
Number of bidirectional digital channels: 24
Number of analogue output channels: 2
Number of counters/timers: 4
Measurements per second/sampling rate (MS/s): 0.5
Max. Update rate (MS/s): 0.9
Max. Number of differential analogue input channels: 32
Samplerate: 500 kS/s per channel
Voltage measuring range of the analogue input (V): -5 V to 5 V, -10 V to 10 V, -2 V to 2 V, -1 V to 1 V

CHF 11,500.00

Delivery time upon request

NI
778701-01

NI PCI-6723, analog output card with 32 channels

With case: Yes
Max. Update rate (MS/s): 0.8
Number of analogue output channels: 32

CHF 2,350.00

Delivery time upon request

NI
781744-01

NI PCIe-8432/2, Isolated RS232 serial interface card (2 ports)

With case: Yes
Communication protocol: Serial
Number of serial channels: 2

CHF 970.00

Delivery time upon request

NI

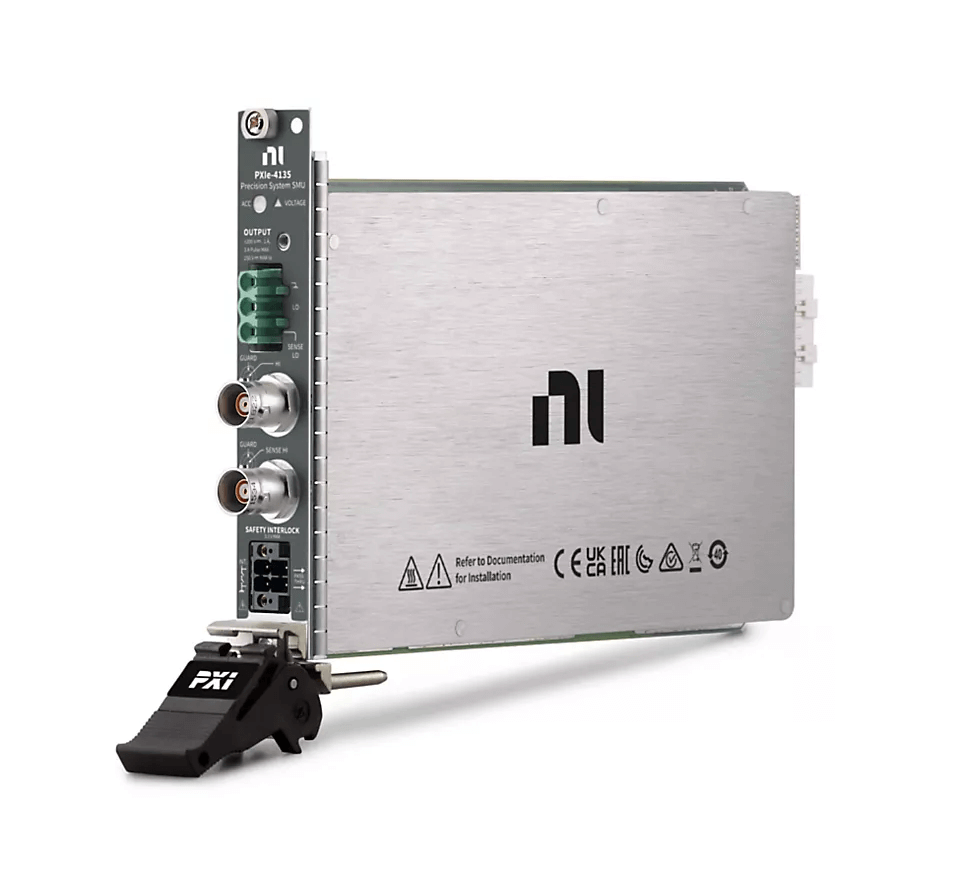

783762-01

NI PXIe-4135 low-power SMU with SourceAdapt technology

With case: Yes
Max. DC source power (W): 20
Number of SMU channels: 1
Number of analogue output channels: 1
Max. Number of differential analogue input channels: 1
max. Power (A): 3

CHF 12,000.00

Delivery time upon request

NI
778572-68

PXI-2568, 31-Channel SPST Relay Module (Open) (150 V, 2 A)

With case: Yes
Relaistyp: Electromechanical

CHF 3,060.00

Delivery time upon request

NI
779632-01

PXI-6259 (32 analog inputs, 48 digital I / O channels, 4 analog outputs)

With case: Yes
Number of analogue output channels: 4
Measurements per second/sampling rate (MS/s): 1.25
Number of bidirectional digital channels: 48
Max. Update rate (MS/s): 2.86
Max. Number of differential analogue input channels: 16
Samplerate: 1.25 MS/s
Voltage measuring range of the analogue input (V): -10 V to 10 V, -2 V to 2 V, -0.1 V to 0.1 V, -0.5 V to 0.5 V, -0.2 V to 0.2 V, -5 V to 5 V, -1 V to 1 V
Number of counters/timers: 2

CHF 4,520.00

Delivery time upon request

NI
PXIe-6351

X-Series Digital I/O Module, 16 AI (16-bit, 1.25 MS/s), 2 AO, 24 DIO, Multifunction I/O Module (790593-01)

CHF 2,300.00

Delivery time upon request

NI
781743-01

NI PXIe-4141, precision SMU with 4 channels

With case: Yes
max. Power (A): 0.1
Number of analogue output channels: 4
Max. DC source power (W): 1
Number of SMU channels: 4
Max. Number of differential analogue input channels: 4

CHF 19,400.00

Delivery time upon request

NI
784147-01

PXIe-7858R, R Series Multifunction I / O Module, Kintex-7 325T, 512MB DRAM, 8 AI with 1 MS / s per channel, 8 AO with 1 MS / s per channel

With case: Yes
Voltage measuring range of the analogue input (V): -5 V to 5 V, -10 V to 10 V, -2 V to 2 V, -1 V to 1 V
Number of bidirectional digital channels: 48
Max. Update rate (MS/s): 1
Number of analogue input channels: 8
Measurements per second/sampling rate (MS/s): 1
Logic level and range: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
Logic level of the digital I/O: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
Samplerate: 1 MS/s
Number of analogue output channels: 8

CHF 15,300.00

Delivery time upon request

NI
782835-39

PXIe-2739, PXI matrix switch with 256 crosspoints, electromechanical relay (2 A, 100 V)

With case: Yes
Relaistyp: Electromechanical

CHF 5,710.00

Delivery time upon request

NI
789565-01

PXIe-4497, module for sound and vibration measurement with 16 inputs, 24 bit, 204.8 kS/s, 2 amplifications, TEDS, AC/DC coupled

CHF 16,600.00

Delivery time upon request

NI
781053-01

Multifunction I / O module PXIe-6356 with 1.25 MS / s per channel (8 AI with simultaneous sampling, 24 DIO, 2 AO)

With case: Yes
Number of bidirectional digital channels: 24
Number of analogue output channels: 2
Number of counters/timers: 4
Max. Number of differential analogue input channels: 8
Voltage measuring range of the analogue input (V): -5 V to 5 V, -10 V to 10 V, -2 V to 2 V, -1 V to 1 V
Measurements per second/sampling rate (MS/s): 1.25
Samplerate: 1.25 MS/s per channel
Max. Update rate (MS/s): 3.3

CHF 7,720.00

Delivery time upon request
