PXI Modules

NI (National Instruments) PXI modules interface to bus standards and can be used to acquire data and images, trigger and synchronize measurement devices, generate and route signals, control motion, and perform a variety of measurements.

362 products

NI
789864-01

PXIe-4311 High-performance DAQ module, flexible resolution up to 22 bit, 4 MS/s sample rate, 32 channels

CHF 15,000.00

Delivery time upon request

NI
780342-01

PXI-7854R, multifunction module of the R series with Virtex-5 LX110, 8 AI, 8 AO, 96 DIO (750 kS / s)

With case: Yes
Logic level of the digital I/O: 3.3 V, 5 V
Voltage measuring range of the analogue input (V): -10 V to 10 V
Number of bidirectional digital channels: 96
Measurements per second/sampling rate (MS/s): 0.75
Samplerate: 750 kS/s
Logic level and range: 3.3 V, 5 V
Max. Update rate (MS/s): 1
Number of analogue input channels: 8
Number of analogue output channels: 8

CHF 20,700.00

Reordered - in stock. Delivery time on request

NI
781205-01

NI PXIe-7961R, NI FlexRIO FPGA Module (Virtex-5-SX50T)

With case: Yes

CHF 10,800.00

4 in stock. Ready to ship in 1 business day

NI
783130-01

PXIe-4081, performance-optimized digital multimeter with 7 1/2 digits and digitizer up to 1000 V.

With case: Yes
Samplerate: 1.8 MS/s
Measurements per second/sampling rate (MS/s): 1.8
Number of positions: 7.5
min. Measuring range DC (mV): -1000000
max. Measuring range DC (V): 1000

CHF 7,210.00

3 in stock. Ready to ship in 1 business day

NI
779629-01

PXI-6221 (16 analog inputs, 24 digital I / O channels, 2 analog outputs)

Samplerate: 250 kS/s
Voltage measuring range of the analogue input (V): -0.2 V to 0.2 V, -10 V to 10 V, -5 V to 5 V, -1 V to 1 V
Number of bidirectional digital channels: 24
Number of analogue output channels: 2
Max. Number of differential analogue input channels: 8
Measurements per second/sampling rate (MS/s): 0.25
With case: Yes
Max. Update rate (MS/s): 0.833
Number of counters/timers: 2

CHF 1,970.00

Delivery time upon request

NI
780587-15

NI PXIe-2515, high-speed switch module with 32 channels for parametric tests

With case: Yes
Relaistyp: Reed

CHF 5,250.00

Delivery time upon request

NI
783485-01

PXIe-7821R, R Series Digital I / O Module, Kintex-7 160T, DRAM

With case: Yes
Number of bidirectional digital channels: 128
Logic level and range: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V
Logic level of the digital I/O: 3.3 V, 1.5 V, 1.2 V, 2.5 V, 1.8 V

CHF 7,850.00

Delivery time upon request

NI
PXIe-6357

208 AI (16-bit, 1.25 MS/s), 2 AO, 24 DIO, Multifunction I/O Module (790595-01)

CHF 5,980.00

Delivery time upon request

NI
781788-01

NI PCIe-7852R with 750 kS/s and Virtex-5 LX50-FPGA

With case: No
Logic level of the digital I/O: 3.3 V, 5 V
Voltage measuring range of the analogue input (V): -10 V to 10 V
Number of bidirectional digital channels: 96
Measurements per second/sampling rate (MS/s): 0.75
Samplerate: 750 kS/s
Logic level and range: 3.3 V, 5 V

CHF 15,500.00

Delivery time upon request

NI
782431-01

NI PXIe-4143, precision SMU with 4 channels: 24 V, 150 mA

With case: Yes
Number of analogue output channels: 4
max. Power (A): 0.15
Max. DC source power (W): 36
Number of SMU channels: 4
Max. Number of differential analogue input channels: 4

CHF 23,400.00

Delivery time upon request

NI
783631-01

PXIe-6345, X series, 80 analog inputs, 500 kS / s, 24 digital I / O, 2 analog outputs

Number of bidirectional digital channels: 24
Number of analogue output channels: 2
With case: Yes
Max. Update rate (MS/s): 2.86
Samplerate: 500 kS/s
Number of counters/timers: 4
Max. Number of differential analogue input channels: 40
Measurements per second/sampling rate (MS/s): 0.5
Voltage measuring range of the analogue input (V): -10 V to 10 V, -2 V to 2 V, -0.1 V to 0.1 V, -0.5 V to 0.5 V, -0.2 V to 0.2 V, -5 V to 5 V, -1 V to 1 V

CHF 3,610.00

Delivery time upon request

NI
779127-01

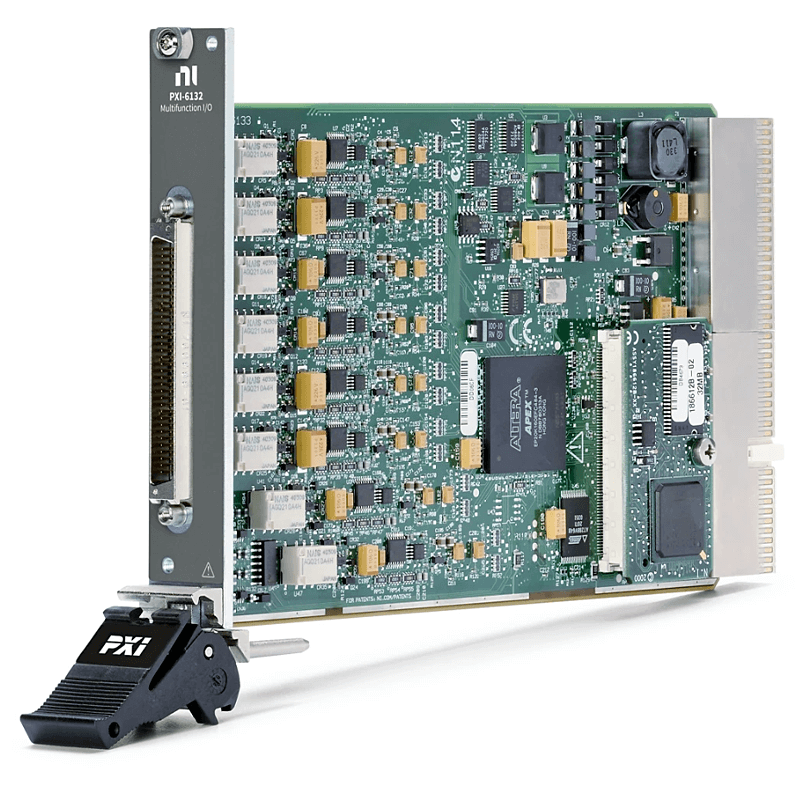

NI PXI-6132, S Series Multifunction Data Acquisition Module

With case: Yes
Number of counters/timers: 2
Max. Number of differential analogue input channels: 4
Samplerate: 2.5 MS/s per channel
Voltage measuring range of the analogue input (V): -1.25 V to 1.25 V, -5 V to 5 V, -2.5 V to 2.5 V, -10 V to 10 V
Measurements per second/sampling rate (MS/s): 2.5
Number of bidirectional digital channels: 8
Number of analogue output channels: 0

CHF 5,090.00

1 in stock. Ready to ship in 1 business day

NI
779153-02

PXI-5922, 24-bit oscilloscope with 2 channels (6 MHz, 15 MS / s, 32 MB per channel)

With case: Yes
Measurements per second/sampling rate (MS/s): 15
Samplerate: 15 MS/s
Voltage measuring range of the analogue input (V): -5 V to 5 V
Number of channels: 2
Bandwidth (MHz): 6

CHF 25,200.00

Delivery time upon request

NI
781420-33

NI 2833A, 4x71 2-wire EMR matrix up to 2 A for NI SwitchBlock

With case: Yes
Relaistyp: Electromechanical

CHF 5,150.00

Delivery time upon request

NI
778572-22

PXI-2522, 53 Channel SPDT Relay Module (100 V, 2 A)

With case: Yes
Relaistyp: Electromechanical

CHF 2,850.00

1 in stock. Ready to ship in 1 business day

NI
782954-01

PXIe-7972R, FlexRIO FPGA module (Kintex-7 K325T, 2 GB RAM)

With case: Yes

CHF 16,100.00

Delivery time upon request

NI
782622-11

PXIe-5162 PXI Oscilloscope with CableSense Technology, 1.5 GHz, 10 bits, 5 GS/s, 2 channels

With case: Yes
Number of channels: 2
Bandwidth (MHz): 1500
Samplerate: 5 GS/s
Measurements per second/sampling rate (MS/s): 5000
Voltage measuring range of the analogue input (V): -25 V to 25 V

CHF 31,600.00

Delivery time upon request

NI
787358-01

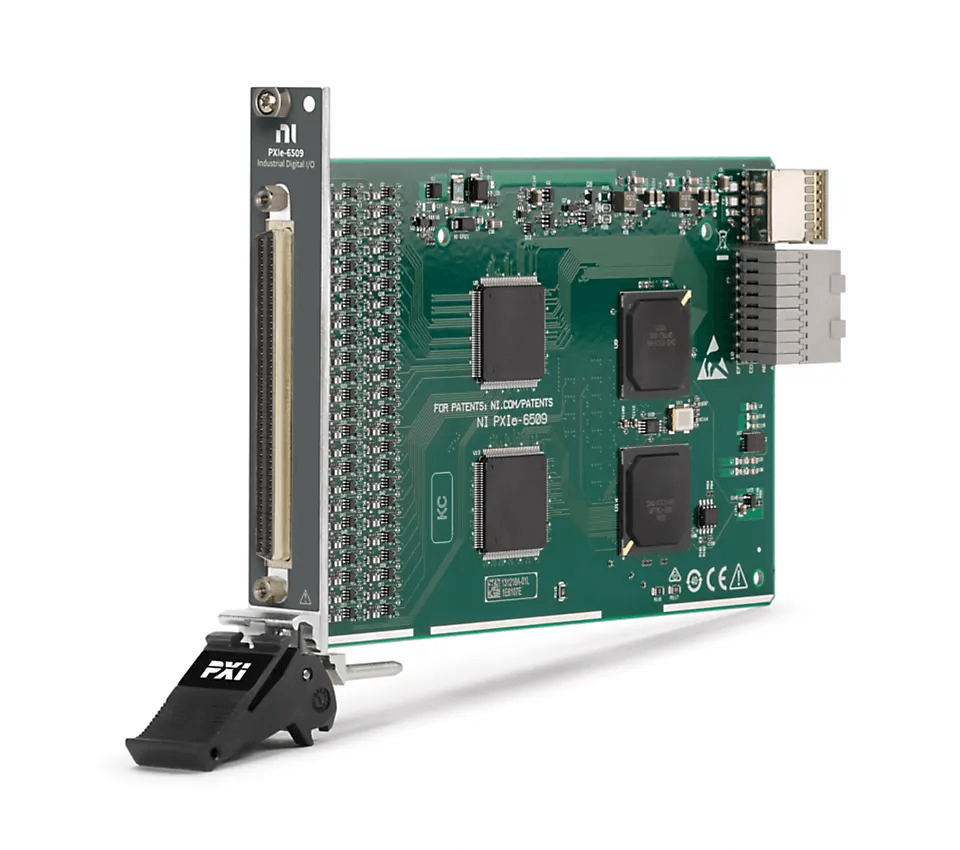

PXIE-6509, 5 V TTL CMOS DIGITAL I / O MODULE (24 MA), 96 CHANNELS

With case: Yes
Number of bidirectional digital channels: 96
Number of digital inputs: 0
Logic level of the digital I/O: 5 V
Number of digital outputs: 0
Logic level and range: 0.0V - 5.0V, 0.0V - 5.5V, 5 V

CHF 935.00

Reordered - in stock. Delivery time on request

NI
784471-01

PXIe-4309, data acquisition module with flexible resolution, 32 channels, 2 MS / s

With case: Yes
Samplerate: 2 MS/s per channel
Measurements per second/sampling rate (MS/s): 2
Max. Number of differential analogue input channels: 32
Voltage measuring range of the analogue input (V): -15 V to 15 V, -0.1 V to 0.1 V, -10 V to 10 V, -1 V to 1 V
