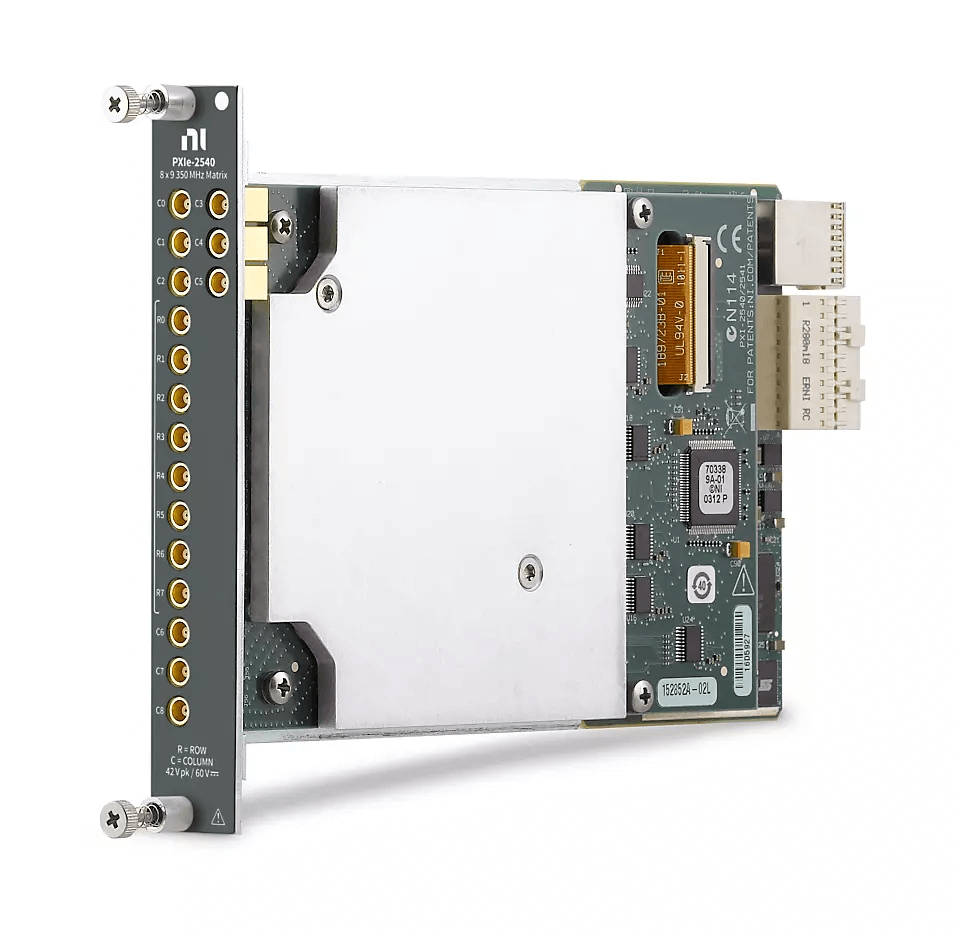

NI 780587-40 | NI PXIe-2540, RF matrix, 8x9

Manufacturer number: 780587-40

780587-40
780587-40
1 in stock. Ready to ship in 1 business day

CHF 4,840.00

plus VAT. CHF 5,232.04 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

780587-40 | NI PXIe-2540, RF matrix, 8x9.

Technical Data

Documents & Downloads

Catalog
PXI-Product-Catalog
pdf | 5.05 MB
Brochure
777696-01
pdf | 1.33 MB
Overview
PXI-Overview
pdf | 2.34 MB
Datasheet
780587-40
pdf | 0.20 MB
Configuration guide
PXI-Overview
pdf | 1.88 MB

Description

780587-40 | NI PXIe-2540, RF matrix, 8x9

The PXI ‑ 2540 is a matrix switch for routing high frequency signals. Thanks to a non-blocking design, each row or column within the switching matrix can be controlled at the same time and the flexibility of the test system can be maximized. Isolation relays on the module separate unused components of the switch matrix to ensure high frequency performance and high isolation. The PXIe ‑ 2540 has high channel density and bandwidth, making it ideal for routing signals between digitizers, function generators, and other RF generators and analyzers.

Product features:

  • Bus type: PXIe
  • Crosspoints: 72
  • Number of rows: 8
  • Number of columns: 9
  • Switching bandwidth: 350 MHz
  • Characteristic impedance: 50 ohms
  • Relay type: reed relay
  • Maximum switching voltage (AC): 42.4 Vs
  • Maximum continuous current (AC): 0.5 A
  • Scanning frequency: 100 cycles / s
