Teledyne FLIR T530 | Thermal imager, 320 x 240 px, 24 °, 42 ° & 14 ° optics (793060101)

Manufacturer number: 793060101

Flir T530 | Thermal imaging camera with 76,800 temperature measuring points (320x240px), with 24 ° + 14 ° + 42 ° lens, with Multi Spectral Dynamic Imaging (MSX) and UltraMax for extremely detailed thermal images, a measuring range from -20 ° C to + 650 ° C and a thermal sensitivity of <0.03 ° C in a complete package.

  • Real temperature measuring points: 76,800 (native resolution 320 x 240 pixels)
  • Temperature measuring points with UltraMax: 307,200
  • Temperature ranges: -20 ° C to +120 ° C / 0 ° C to +650 ° C (optional +300 ° C to +1.200 ° C)
  • Thermal sensitivity: <0.03 ° C
  • Measuring accuracy: +/- 2 ° C, +/- 2%
  • Refresh rate 30 Hz
  • Meets the requirements of DIN 54191 - non -destructive testing - thermographic testing of electrical systems
  • Measuring method: 3 measuring points, 3 areas with min./max.
  • DeltaT temperature difference measurement
  • Emission level individually adjustable from 0.01 to 1.0 or selection from list with materials
  • Degree of reflection automatic, based on input of the reflected temperature
  • Image modes: thermal image, visual image, image in image (PIP), thermal fusion
  • FLIR image in image : overlays your real image with a scalable and movable infrared image area
  • FLIR Thermal Fusion : infrared image overlays digital image over an isothermal threshold for an even better analysis
  • Multi Spectral Dynamic Imaging (MSX) for extremely detailed thermal images
  • UltraMax: Image optimization with 4 times higher image resolution in connection with SW FLIR Tools
  • Automatic GPS tagging / compass
  • Built-in daylight camera with 5 megapixels
  • 24 ° + 14 ° + 42 ° lens
  • Optional intelligent AutoCal ™ interchangeable lenses (wide angle to telephoto) without additional calibration
  • Built-in laser pointer
  • Fast and precise laser-assisted auto focus
  • Laser distance measurement and display-based area calculation
  • Digital 1 - 4x zoom , adjustable via gesture control on multitouch display (like with a smartphone)
  • 180 ° rotatable optical unit and 4-inch, bright, capacitive touchscreen
  • Image display: pallets (iron, rainbow and black / white), level, chip, automatic adjustment (continuous / manual)
  • Settings: date / time, info, LCD intensity, switch off and 21 languages
  • Standard USB outputs and SD card slot
  • MeterLink technology for data exchange via BlueTooth with meter link-capable handheld measuring devices
  • Wi-Fi connection to iPad / iPhone / Android Pad with optional FLIR Tools Mobile APP (via iTunes / Android Market)
  • MicroSD memory card for storing over 2000 images in JPG format with radiometric information per pixel
  • Text and voice recording per picture
  • Real-time radiometric video recording
  • Radiometric IR video streaming
  • Interfaces: USB 2.0, Bluetooth, WLAN
  • Copy to USB (image storage on USB stick)
  • Instant Report: Direct printing of a PDF report including a thermal and real image from the camera without additional software
  • Energy management - automatic switch-off
  • Battery type lithium-ion, battery charge control
  • Operating time about 4 hours
  • Weight: approx.1.3 kg
  • Dimensions: 140 x 201 x 84 mm
  • Degree of protection IP54 - suitable for use in industrial environments
  • Warranty: 2 years / 10 years on the detector

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Detaildescription

T530 | Thermal imager, 320 x 240 px, 24 °, 42 ° &amp; 14 ° optics (793060101)

With its 180 ° rotatable optical unit, its bright touchscreen display and its compact dimensions, the T500 thermal imaging camera series offers thermographers and IR service consultants all the tools they need to carry out extensive inspections under difficult conditions - especially when the view is clear the system under test is prevented or is difficult to access.

Thermography | The T530 thermal imaging camera from FLIR helps to quickly identify thermal problems in electrical and electronic systems, to identify mechanical faults and to carry out preventive maintenance measures.

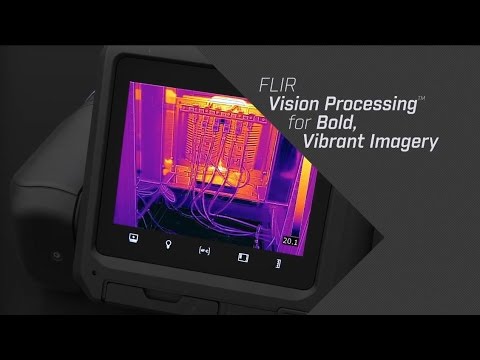

The object is examined holistically pixel by pixel (each pixel with its own temperature information) and delivers the diagnostic results immediately. The fully equipped infrared camera with built-in digital camera combines an infrared and real image with the thermal FUSION picture-in-picture function : a daylight image is overlaid by the radiometric infrared image at the same time. This enables critical problems to be identified even faster and more precisely.

The measurements / thermographic images (standard JPG with fully radiometric measurement data per pixel) are stored on an SD card and are effortlessly evaluated, analyzed and documented with the PC software FLIR Tools included in the scope of delivery.

Lieferumfang

  • Infrared camera with 24 ° + 14 ° + 42 ° lens, 2 batteries, battery charger, hard case, carrying straps, front lens cover, power supply, printed documentation, SD memory card (8 GB), cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)

Flir Tools | Analysis and report software included:

  • simple operation and many functions
  • Organize and analyze the images
  • Reporting
  • Export as PDF document
  • Company-specific company logo can be shown
  • Zoom pan function
  • Measuring points, areas and lines.
  • Emissivity and reflectance adjustable
  • Export to Excel, copy to Word
  • with firmware update function
