The Tektronix MP5000 series has been specially developed for the highest demands in development, validation and production testing. Thanks to its modular design, it combines Source Measure Units (SMUs) and Power Supply Units (PSUs) in a compact 1U rack format. This saves users valuable space and costs in the laboratory or test rack.
Applications
The MP5000 series is suitable for a wide range of applications, including:
- Circuit and semiconductor validation and debugging
- High-channel parallel testing in automated test environments (ATE)
- Precise characterization of components
- Reliability testing with synchronized multimainframe setups

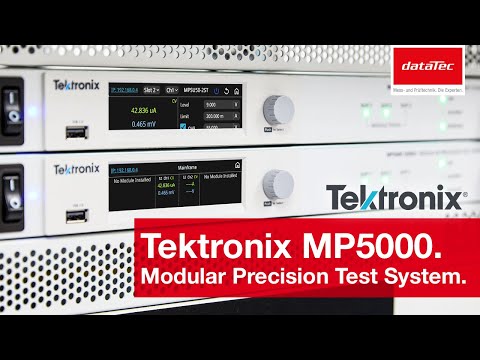

Mainframe MP5103
The MP5103 presented here is the centerpiece of the MP5000 series. This compact 1 U mainframe is highly flexible and can be equipped with up to three modules. By combining PSU and SMU modules, the MP5103 can be adapted precisely to the respective application. The modular design allows modules to be added or removed during operation, minimizing downtimes.
Advantages and strengths
- Compact design (1U) saves valuable rack space
- 3 slots
- Up to 6 channels per mainframe
- High flexibility thanks to free module selection (SMU/PSU)
- Easy scaling via TSP link for synchronized multi-mainframesystems
- Modern interfaces such as 1 Gbps Ethernet and USB-C for fast data transfer
- Integrated touch operation for easy setup and troubleshooting
Available modules
- MSMU60-2 (SMU module) - Precise source measure unit with 2 channels, up to 60 V/1.5 A, 4-quadrant operation, high-resolution measurement up to 100 fA. Ideal for precise I/V characterization.
- MPSU50-2ST (PSU module) - Powerful power supply module with 2 channels, up to 50 V/5 A (expandable to 100 V/10 A with series connection). With OVP/OCP protection and remote sense for precise power supply.
Technical highlights
- 1U mainframe with 3 module slots (up to 6 channels)
- TSP link synchronization < 500 ns
- 18 digital I/O pins for handshake signals
- Hot-swap-capable modules without restart
- SMU module: Up to 60 V / 1.5 A, 6½-digit measurement resolution
- PSU module: Up to 50 V / 5 A, expandable to 100 V / 10 A
- Ethernet (1 Gbps) and USB-C for fast data transfer
- Integrated touch display for setup and diagnostics
- Software options: Web interface, TSP Toolkit, ACS Suite, Python/IVI/LabVIEW driver
