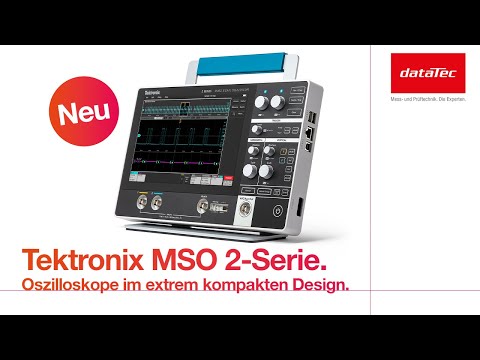

Tektronix MSO24 | Oscilloscope MSO 2 series, 4 channels, up to 2.5 GSa/s, 10 MPts, USB, LAN, basic device

Manufacturer number: MSO24

MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
MSO24
27 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Tektronix MSO24 | Mixed signal oscilloscope MSO 2 series, 4 channels, up to 2.5 GSa/s, 10 MPts, USB, LAN, basic device.

  • Display: 10.1” capacitive TFT touch screen with WXGA (1280 px x 800 px) resolution
  • Analog inputs: 4
  • Optional digital inputs: 16
  • Bandwidths available: 70, 100, 200, 350, 500 MHz
  • Sample Rate: 2.5 GS/s Half channels // 1.25 GS/s All channels
  • Record length: 10M points per channel
  • Vertical Resolution: 8 bits ADC / Up to 16 bits in high-resolution mode
  • Triggers: Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time, and parallel bus
  • Standard analysis functions:
    • Cursors: Waveform, V bars, H bars, and V&H bars
    • Measurements: 36
    • Plots: XY, limit mask
    • Math: Basic waveform arithmetic, FFT, and advanced equation editor
    • Search: Search on any trigger criteria
  • Optional Serial trigger, decode and analysis: I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, and SENT
  • Optional arbitrary generator: 50 MHz waveform generation
  • Connectivity: USB 2.0 Host, USB 2.0 Device (2 ports), LAN (10/100 MB/s Base-T Ethernet)
  • Optional battery pack: With up to 6 hours of battery life
  • Dimensions (H x W x D) (without battery pack): 210 mm x 344 mm x 40.4 mm
  • Weight (without battery pack): 1.8 kg

Technical Data

Documents & Downloads

Datasheet
MSO22
pdf | 3.34 MB
User report
Keithley-KickStart_Applications-Guide
pdf | 4.92 MB
Userguide
MSO2-Serie
pdf | 3.04 MB

Description

MSO24 | Oscilloscope MSO 2 series, 4 channels, up to 2.5 GSa/s, 10 MPts, USB, LAN, basic device

The Tektronix MSO 2 Series oscilloscopes feature up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16-channel MSO (optional), 50 MHz AFG (optional), 4-bit digital pattern generator (optional), advanced triggers (optional), protocol decode (optional), DVM and frequency counter - all in a compact format with a depth of approximately 1.5", making it the ideal oscilloscope for electronic debugging and testing , no matter where you work.

With a capacitive touchscreen and a highly intuitive user interface designed specifically for touch control, the MSO2 joins the family of award-winning Tektronix next-generation oscilloscopes. Edit orientation, vertical & horizontal zoom, adjust scale, swipe to reveal result bar and menu, and much more right on the touchscreen. The common user interface and programming interface of the next-gen series make it easy to use any next-generation Tektronix oscilloscope.

The uncluttered front panel also includes the most important buttons and controls with color-coded LED ring lights for quick access to the most commonly used device settings.

The optional battery pack enables you to use your laboratory oscilloscope quickly, easily and with complete flexibility in the field.

A large selection of compatible probes and the extensive range of accessories make the Tektronix MSO 2 series the most powerful and versatile device in its class.

Choose your model:

This variant of the Series 2 MSO has 4 analog channels. The Series 2 MSO is also available with 2 analog channels (MSO22) and optionally with 16 digital channels. Choose your bandwidth option: you get the 2 Series MSO with 70, 100, 200, 350 and 500 MHz.
