Keithley 2461 | Hi Current Interactive SourceMeter SMU, with 10A Pulse & Digitizer, 200 mV - 100 V, 1 uA - 10 A, 1,000 W.

Manufacturer number: 2461

2461
2461
2461
2461
2461
2461
2461
1 in stock. Ready to ship in 1 business day

€13,200.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keithley 2461 | Hi Current Interactive SourceMeter, SMU, with 10A Pulse & Digitizer, V / I range 200 mV - 100 V / 1 uA - 10 A, 1,000 W.

  • Max. Power envelope: 100 W DC voltage / 1000 W pulsed
  • Max. Output power: 1000 W
  • Max. Current source / measuring range: 10 A
  • Max. Voltage source / measuring range: 100 V
  • Measurement resolution (current / voltage): 1 pA / 100 nV
  • VI range: 100 nV to 200 V, 1pA to 10 A.
  • Best accuracy: 0.02% / 6.5 digits
  • Max. Speed: sampling with 1 MS / s / 100 kS / s in buffer
  • 5-inch touchscreen with well thought-out color combination and sensible screen layout
  • Easy navigation through menus and settings with one level
  • Memory for 27.5 million data with time stamp, all of which can be displayed on the device

Technical Data

Documents & Downloads

Brochure
2400
pdf | 2.98 MB

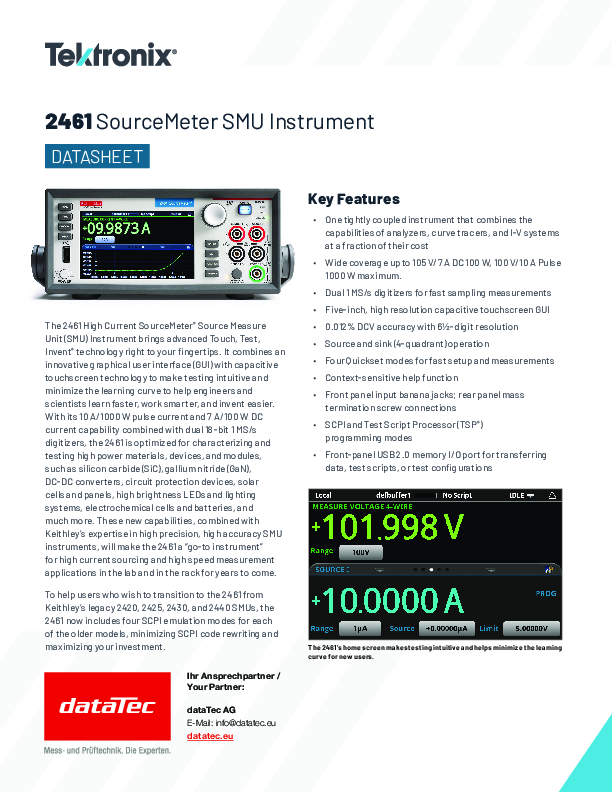

Datasheet
2461
pdf | 0.52 MB
User report
2460
pdf | 2.25 MB

Description

2461 | Hi Current Interactive SourceMeter SMU, with 10A Pulse & Digitizer, 200 mV - 100 V, 1 uA - 10 A, 1,000 W.

Measurements at a whole new level
SMU devices record device behavior with more details and can record the device in extended areas.
This will help you understand your device better and improve its quality and performance.

Intuitive user interface. Smart and fast.
You can measure, see and recognize more on the intuitive, multi-touch enabled user interface -
from unformatted readings to histograms to time-based and voltage / current-based signals - and get answers faster.
