Keysight Oscilloscope, MSO, 4 + 16-channel, 200 MHz, 1 million wfm / s | MSOX3024T

Name: Oscilloscope, MSO, 4 + 16-channel, 200 MHz, 1 million wfm / s | MSOX3024T
Brand: Keysight
SKU: MSOX3024T
Availability: InStock

Manufacturer number: MSOX3024T

1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keysight MSOX3024T | 4- / 16-channel mixed-signal oscilloscope (digital storage oscilloscope and 16-channel logic analyzer) with a bandwidth of 200 MHz, up to 5 GS / s sampling rate and a signal acquisition rate of 1,000,000 [1 million] signals / s.

Technical Data

Article number:	MSOX3024T
Bandwidth (MHz):	200
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	142 x 381 x 204
Function generator:	Optional: AWG 20 MHz (can be activated via license)
Interfaces:	USB optional: Ethernet, GPIB
Model:	MSOX3024T
Number of channels:	4
Number of digital channels:	16
Samplerate:	5 GSa/s
Screen size:	21.6 cm
Screen type:	800 x 480, TFT LCD touchscreen
Segmentable memory:	default
Signal acquisition rate:	1,000,000 wfms/sec
Special features:	optional: Enhanced Security
Storage depth:	4 MPts
Triggertypes:	Zone, Edge, Edge then edge, Pulse width, Runt, Setup and hold, Rise/fall time, Nth edge burst, Pattern, Or, Video Optional: Enhanced Video
Vertical resolution:	8-bit
Warranty (years):	3
Weight (kg):	2.7

Description

Oscilloscope, MSO, 4 + 16-channel, 200 MHz, 1 million wfm / s | MSOX3024T

This Keysight oscilloscope of the 3000T-X series offers more comfort and real productivity increases through the operation via the capacitive touch screen for an even faster display of measurement information on the screen.

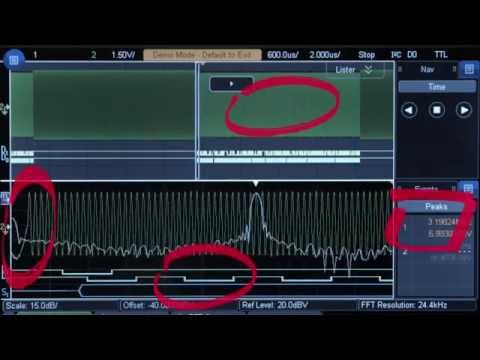

The InfiniiScan Touch Zone Trigger simplifies triggering: just drag a box on the screen with your finger around the signal event of interest and the oscilloscope will trigger on it. Two trigger zones can be selected.

Thanks to the high signal acquisition rate of 1 million wfm / s, the oscilloscope reacts to setting changes at lightning speed even if digital channels, protocol decoding , mathematical functions or automatic measurement functions are activated. This increases the detection probability many times over for random or rare events that slower oscilloscopes often miss.

These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices : oscilloscope, logic analyzer, protocol analyzer, voltmeter, 8 digit counter and 1-channel arbitrary function generator. And your investment is optimally protected, because all models can be upgraded in every respect - including bandwidth - if necessary.

Lieferumfang

1 x oscilloscope
4 x passive probes 500MHz 10: 1 including accessories
16 channel logic probe including accessories for contacting
Documentation (user manual) on CD
Power cord
Traceable calibration certificate
