Keysight Oscilloscope, DSO, 4-channel, 500 MHz, 1 million wfm / s | DSOX4054A

Name: Oscilloscope, DSO, 4-channel, 500 MHz, 1 million wfm / s | DSOX4054A
Brand: Keysight
SKU: DSOX4054A
Availability: InStock

Manufacturer number: DSOX4054A

1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keysight DSOX4054A | 4-channel digital memory signal oscilloscope with a bandwidth of 500 MHz, up to 5 GS / s sampling rate, a signal acquisition rate of 1,000,000 [1 million] signals / s and 30.7 cm touch color screen with touch zone trigger.

Technical Data

Article number:	DSOX4054A
Bandwidth (MHz):	500
Counter:	Yes
DVM:	Yes
Dimensions (L x W x H) (mm):	156 x 454 x 275
Function generator:	Optional: AWG 20 MHz (can be activated via license)
Interfaces:	USB-TMC, USB-CDC (Virtual COM), LAN optional: GPIB
Model:	DSOX4054A
Number of channels:	4
Samplerate:	5 GSa/s
Screen size:	30.7 cm
Screen type:	800 x 600, TFT LCD touchscreen
Segmentable memory:	default
Signal acquisition rate:	1,000,000 wfms/sec
Special features:	optional: Enhanced Security
Storage depth:	4 MPts
Triggertypes:	Zone, Edge, Edge then edge, Pulse width, Pattern, Or, Rise/fall time, Nth edge burst, Runt, Setup and hold, Video Optional: enhanced Video
Vertical resolution:	8-bit
Warranty (years):	3
Weight (kg):	6

Description

Oscilloscope, DSO, 4-channel, 500 MHz, 1 million wfm / s | DSOX4054A

This Keysight (formerly Agilent's electronic measurement technology) oscilloscope of the 4000X series offers more comfort and real productivity increases through the operation via the capacitive touch screen for an even faster display of measurement information on the screen.

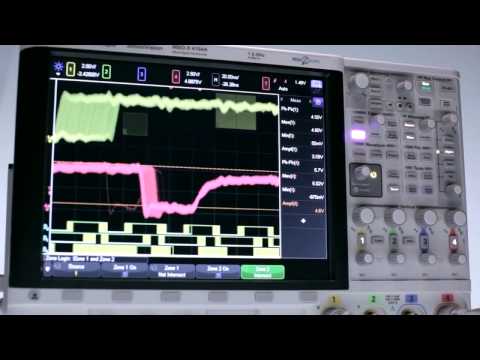

The InfiniiScan Touch Zone Trigger simplifies triggering : just drag a box on the screen with your finger around the signal event of interest and the oscilloscope will trigger on it. Two trigger zones can be selected.

Thanks to the high signal acquisition rate of 1 million wfm / s, the oscilloscope reacts to setting changes at lightning speed even if digital channels, protocol decoding , mathematical functions or automatic measurement functions are activated. This increases the detection probability many times over for random or rare events that slower oscilloscopes often miss.
These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices: oscilloscope, logic analyzer, protocol analyzer, voltmeter and 2-channel arbitrary function generator. And your investment is optimally protected, because all models can be upgraded in every respect - including bandwidth - if necessary.

Note:

When you purchase this new device, you will now receive a “Node-Locked” license for the Keysight measurement and analysis app BenchVue Basic for oscilloscopes BV0004B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Lieferumfang

1 x 4000X oscilloscope
1 passive probe N2894A per channel including accessories
Documentation (user manual) on CD
Power cord
Traceable calibration certificate
