NI 780587-15 | NI PXIe-2515, high-speed switch module with 32 channels for parametric tests

Manufacturer number: 780587-15

780587-15
780587-15
780587-15
Delivery time upon request

CHF 5,250.00

plus VAT. CHF 5,675.25 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

NI 780587-15 | NI PXIe-2515, high-speed switch module with 32 channels for parametric tests.

Technical Data

Documents & Downloads

Catalog
pdf | 2.54 MB

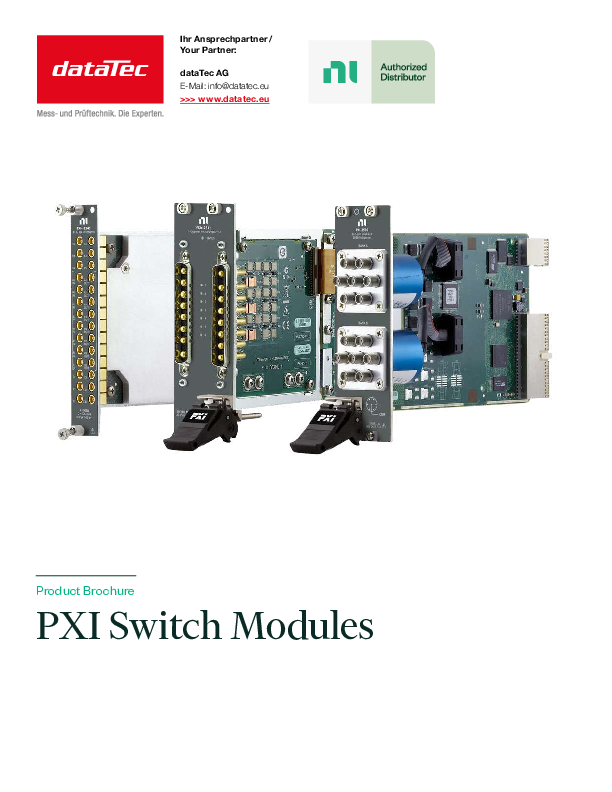

Brochure
pdf | 2.74 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

780587-15 | NI PXIe-2515, high-speed switch module with 32 channels for parametric tests

The PXIe-2515 multiplexer switch module enables high-speed digital I / O signals to be routed between a device under test and a high-speed digital I / O device or device for parametric measurements. Modules such as PXI SMUs and PXI digital multimeters can be used with high speed digital devices. With the PXIe ‑ 2515, parametric tests can be easily performed on digital lines without the need for an external connection or resistance mismatches.

Product features:

  • Bus type: PXIe
  • Number of channels: 32
  • Relay type: reed relay
  • Maximum switching voltage (DC): 30 V.
  • Maximum switching current (DC): 0.25 A.
  • Switching bandwidth: 50 MHz
