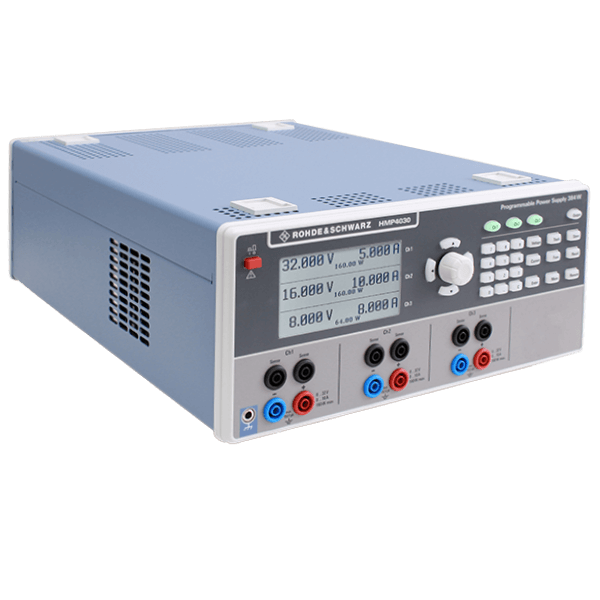

The HMP4030 power supply impresses with its low residual ripple and high output power. With its three freely programmable and galvanically isolated outputs, the HMP40 30 is the ideal power supply for many applications in development, training or production.

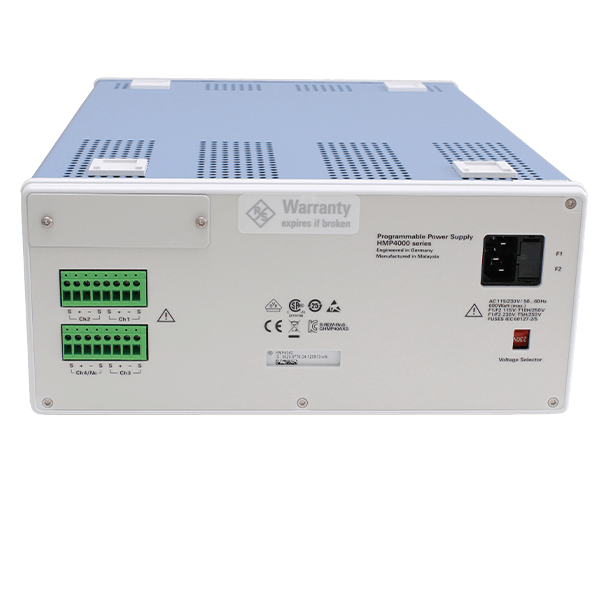

All actual and target values of the HMP4030 can be quickly seen on the large display. Thanks to its front and rear connections, the HMP4030 can be used universally as a table device or in test systems.
Convenient parallel/series operation: active channels can be switched on/off in parallel with the "Output" button, common voltage and current setting in tracking mode (individual channel linking), individual selection of the channels that should be switched off via FuseLink in the event of overcurrent, all of them Channels galvanically separated from each other and from the protective conductor
EasyArb: EasyArb is the time/voltage or time/current curve that can be freely programmed per channel. This can be programmed directly on the device or conveniently and quickly on the PC using remote software. Several EasyArb curves can run next to each other - programmable independently of each other.
FuseLink: Overcurrent or overvoltage protection can be set for each channel. With the devices in the HMP series, you can also combine the overcurrent protection with other channels as desired. For example, a channel with a connected fan can continue to run while all other channels are switched off.
