Gossen Metrawatt MetraHit 2+ | Multimeter, TRMS, 3 6/7, IP40 (M205A)
Manufacturer number: M205A
€274.00
Gossen Metrawatt M205A | 3 6/7 digit TRMS multimeter MetraHit 2+, protection class CAT III / 600 V and DAkkS calibration certificate.
- Resolution: 6000 digits and analog bar graph
- Backlit digital display (switchable)
- RMS measurement of TRMS VAC and IAC
- Automatic socket lock ABS (patented)
- waveform independent TRMS measurement with a bandwidth of 1kHz
- Basic accuracy 0.5% VDC
- Resolution: 100 µV, 100 mΩ, 10 µA
- Voltage measurement range DC: 100μ to 600 V
- Voltage measurement range AC: 100μ to 600 V
- Current measurement range DC: 10μ to 10 A (16 A 30sec)
- Current measurement range AC: 10μ to 10 A (16 A 30sec)
- Resistance measuring range: 100 mΩ to 40 MΩ
- Temperature measuring range: -50 to +400 ° C with opt. Type K thermocouple
- Frequency measurement: 0.1 Hz to 1 kHz
- Continuity and diode test
- Automatic (autorange) or manual measuring range selection
- Min / max measurement value storage and DATA hold
- Power-saving circuit: automatic switch-off after 10 minutes - can also be canceled
- Signaling of overload and defective fuse
- DAkkS (DKD) calibration certificate included
- Measurement category: CAT III / 600 V
- Dimensions: 84x195x35mm including rubber protective cover
- Degree of protection IP40
- Weight: 350g
- 3 year warranty
Technical Data
Analogue segment display: | Yes |
---|---|
Article number: | M205A |
Backlight: | Yes |
Basic precision: | 1 % |
Capacity measuring range: | No |
Current measuring range AC/DC: | 60mA-10A / 60mA-10A |
Data memory / logger: | No / No |
Dimensions (L x W x H) (mm): | 195 x 84 x 35 |
Diode test / continuity test: | Yes / Yes |
Display Hold / Auto-Hold: | Yes / Yes |
Display resolution: | 6000 |
Electrical safety: | CAT III 600 V |
Frequency measuring range: | 100 Hz - 1000 Hz |
Min. / Max. Recording: | Yes / Yes |
Model: | Metrahit 2+ |
Number of positions: | 3.85 |
Resistance measuring range: | 600 Ω - 40 MΩ |
Special features: | including DakkS calibration certificate |
Temperature measurement ( PT100 / Type K / Type J): | -50°C - +400°C |
True effective measurement TRMS: | Yes |
Voltage measuring range AC/DC: | 600 mV - 600 V / 600 mV - 600 V |
Warranty (years): | 3 |
Weight (kg): | 0.35 |

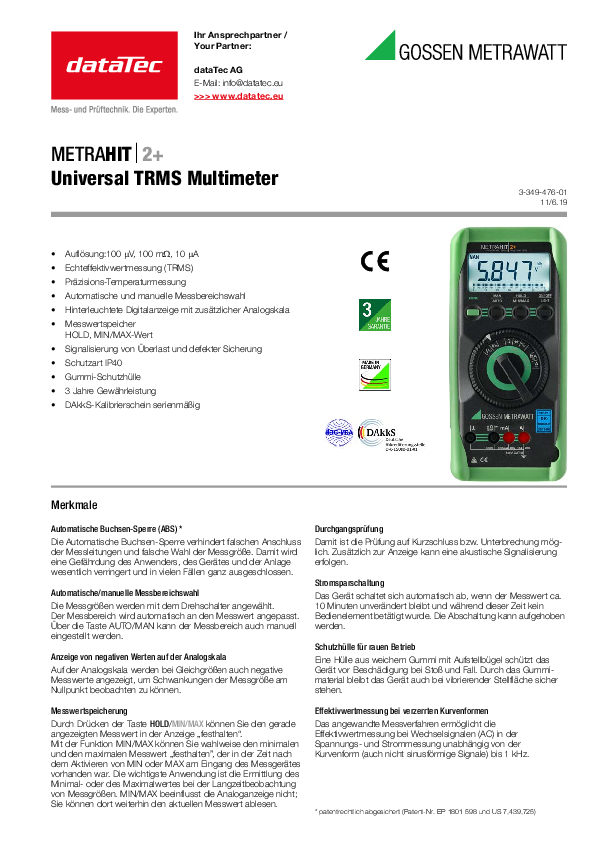

Documents & Downloads
Description
MetraHit 2+ | Multimeter, TRMS, 3 6/7, IP40 (M205A)
The universal autorange multimeter Metrahit2 + from Gossen Metrawatt for use in all areas of electrical engineering. The multimeter offers you all the measurement functions of a versatile multimeter: convincing technology with all voltage, resistance, current and temperature measurement ranges and many other measurement and automatic functions.
Thanks to the patented socket lock and the shock protection cover , the device is particularly recommended for training and service . Accidental switching to another measuring category with inserted measuring lines is not possible.
Lieferumfang
- Multimeter Metrahit 2 +
- Protective rubber cover
- DAkkS (DKD) calibration certificate
- 2 x 1.5V batteries
- Test lead set KS17-2
- quick start Guide
