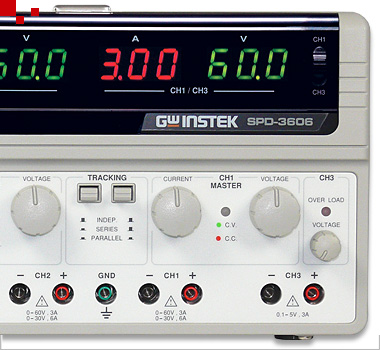

GW Instek SPD-3606 | Power supply unit, DC, 3 channels 2x 30 (60) V / 6 (3) A, 0.1-5V / 3A, 375 watts

Manufacturer number: SPD-3606

SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
SPD-3606
Delivery time upon request

€700.00

or choose one of the following options:
Request a quote Product is already in cart Product inquiries Request education-price
Highlights Technical Data Description Scope Related Articles

3-channel laboratory power supply SPD-3606 from GW Instek with outputs 2x 0-60 V DC / 0-3 A or 2x 0-30 V DC / 0-6 A and 0.1-5 V DC / 3 A.

  • clocked version
  • 4mm safety sockets on the front
  • Power 375 watts
  • 2 independent, switchable outputs 0-30 V / 0-60 V DC, 0-6 A / 0-3 A
    - results in 0-60 V / 0-6 A, 0-120 V / 0-3 A in series operation
    - results in 0-30 V / 0-12 A, 0-60 V / 0-6 A in parallel operation
  • Tracking operation
  • additional output 0.1-5 V DC, 3 A
  • On / off switch for output
  • Remote control of switching the outputs on / off via interface
  • Regulation for continuous and dynamic loads
  • 4-fold LED display 3 digits - switchable
  • OVP surge protection
  • OTP overheating protection
  • Reverse polarity protection
  • Constant U and Constant I
  • Low ripple and low noise (at constant voltage: <5 mVrms 5 Hz ~ 1 MHz)
  • temperature controlled fan
  • Automatically selectable connection voltage: AC 115 V / 230 V +15%, 50/60 Hz
  • Weight 6 kg
  • Dimensions: W 255 mm x H 145 mm x D 265 mm

Technical Data

Description

SPD-3606 | Power supply unit, DC, 3 channels 2x 30 (60) V / 6 (3) A, 0.1-5V / 3A, 375 watts

The laboratory power supply SPD3606 has 3 independent, isolated outputs. The first two outputs can be switched into 2 ranges from 0-30 V or 0-60 V, depending on the requirements of the measurement task. With serial / parallel operation, even higher voltages and currents are possible, such as 120 V / 3 A and 30 V / 12 A, and with less energy consumption and less weight in this performance class. This power supply contains numerous precautions to protect the device under test, such as OVP (overvoltage protection), OTP (overheating protection) and reverse polarity protection. The power supply unit SPD3606 recognizes the input voltage of 115 V / 60 Hz or 230 V / 50 Hz and switches over automatically. With the optional adjustment protection GPS001, the preset output parameters can be mechanically secured, making this power supply ideal for educational institutions.

Lieferumfang

  • Power supply unit SPD-3606
  • Power cord
  • Manual
  • 3 sets of red, black test leads with alligator clips
