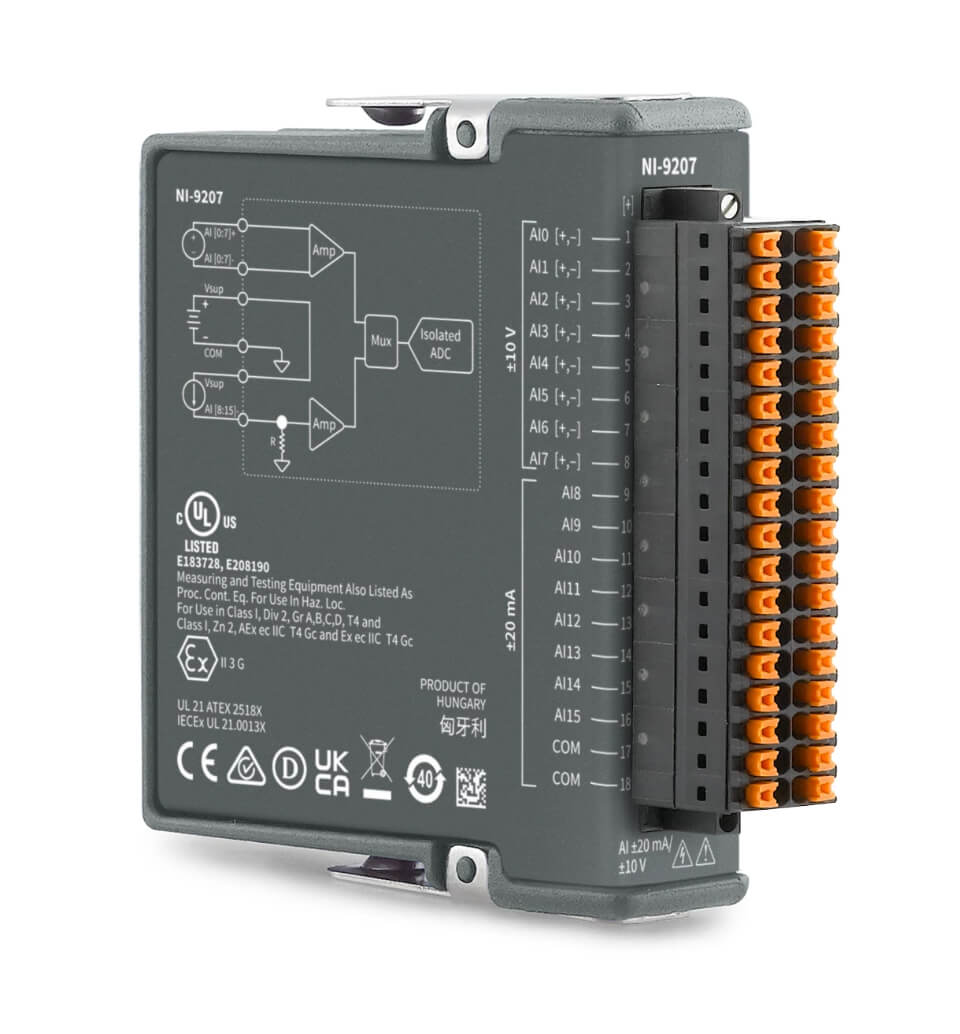

NI 781068-01 | NI 9207, combination module with 8 channels each for current and voltage, 24 bit

Name: 781068-01 | NI 9207, combination module with 8 channels each for current and voltage, 24 bit
Brand: NI
SKU: 781068-01
Price: 1380.0 EUR
Availability: InStock

Manufacturer number: 781068-01

Delivery time upon request

€1,380.00

or choose one of the following options:

Request a quote Product inquiries Request education-price Share

781068-01 | NI 9207, combination module with 8 channels each for current and voltage, 24 bit.

Technical Data

Analogue input isolation:	Bank Isolation, 60 VDC Bankisolierung
Bustype:	C Series
Connection type front:	37-Pin, Männlich D-Sub
Current measurement:	-20 mA bis 20 mA
Filtering:	50/60 Hz Rejection
Max. Number of differential analogue input channels:	8
Max. Number of ground-related analogue input channels:	8
Measured electrical signal:	Voltage
Measurements per second/sampling rate (MS/s):	0
Module width:	1
Protectively coated:	No
Resolution of the analogue input:	24 bit
Samplerate:	500 S/s
Simultaneous scanning:	No
Voltage measuring range of the analogue input (V):	-10 V bis 10 V
Warranty (years):	1
With case:	Yes

Description

781068-01 | NI 9207, combination module with 8 channels each for current and voltage, 24 bit

The NI ‑ 9207 combination module for voltage and current measurements is designed for industrial systems. It has eight voltage and eight current input channels with integrated interference suppression.
