Keithley 7072-HV | 8X12 Hv Semiconductor Card

Manufacturer number: 7072-HV

7072-HV
7072-HV
Delivery time upon request

€18,400.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keithley 7072-HV | 8X12 Hv Semiconductor Card

  • Two 1300 V sub picoamp current paths
  • Six 200 V, 20 pA paths
  • Triaxial connections

Technical Data

Documents & Downloads

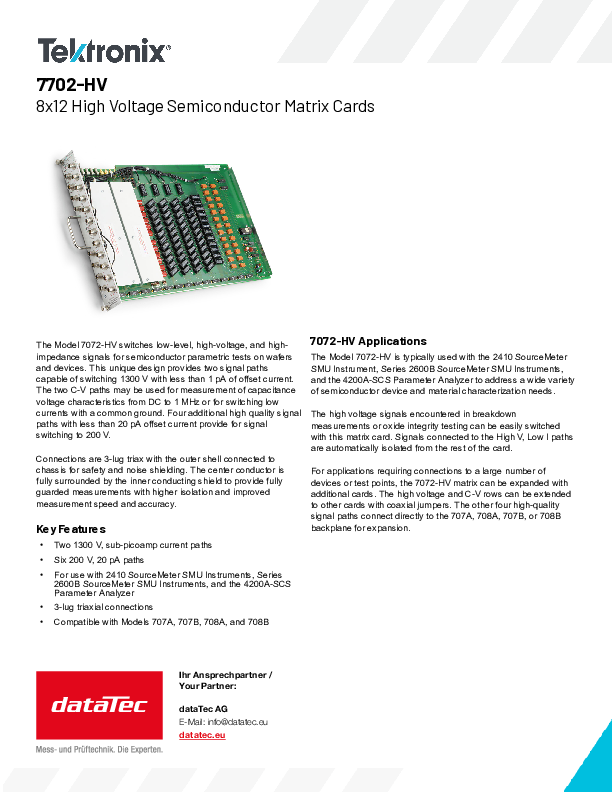

Datasheet
7072
pdf | 0.46 MB

Description

7072-HV | 8X12 Hv Semiconductor Card

The Model 7072-HV is specifically designed for semiconductor parameter testing on wafers and devices to switch low level, high voltage and high impedance signals. It offers two signal paths that can switch up to 1300V at less than 1pA offset current. In addition, four further signal paths with less than 20pA offset current allow switching of signals up to 200V. The connections are 3-lug triax with enhanced shielding for safety and noise suppression. The Model 7072-HV is typically used with the Model 2410 and 2600B SourceMeter SMU instruments and the 4200-SCS Parameter Analyzer for comprehensive semiconductor characterization.

Accessoires

2410
Keithley
2410
SourceMeter SMU, Source Measure Unit, 4-quadrant operation as source and sink, 1,100 V, 1 A, 20 W.
Delivery time upon request
€17,400.00
707B
Keithley
707B
6 slot semiconductor switching mainframe
Delivery time upon request
€13,200.00
708B
Keithley
708B
1 slot semiconductor switching mainframe
Delivery time upon request
€7,360.00

Alternate products

7072
Keithley
7072
8X12 semiconductor matrix card
Delivery time upon request
€12,000.00

About the Manufacturer

Keithley
Keithley

Keithley Instruments is a renowned manufacturer of high-precision electrical measuring instruments and systems for research, development, and production, particularly in the semiconductor industry, process monitoring, and electronics manufacturing. The portfolio includes Source Measure Units (SMU instruments), multimeters, data loggers, parameter analyzers, and DC power supplies for measurement requirements ranging from nanovolts to gigahertz.
