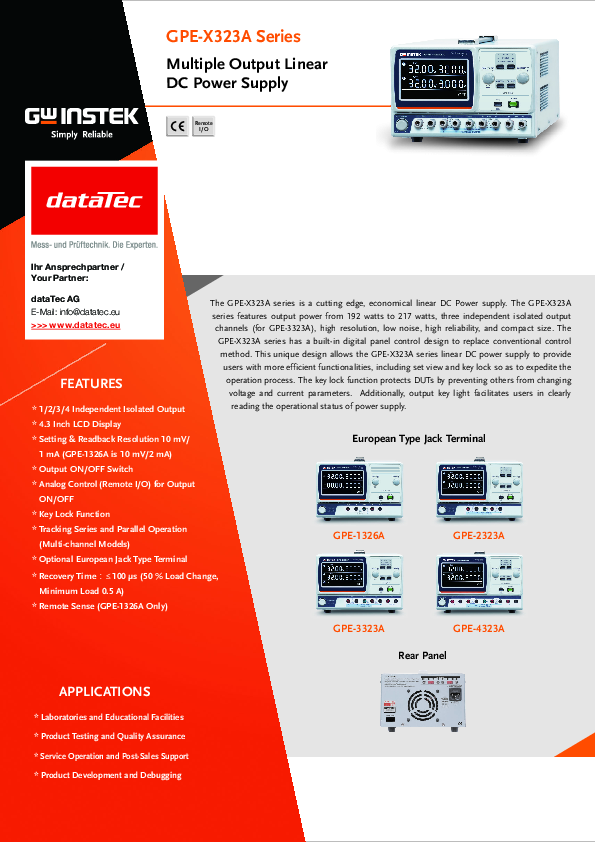

The GPE-x323A series from GW Instek stands for innovation, precision and safety. Depending on the model, these advanced linear DC power supply units offer up to four galvanically isolated outputs and rely on modern operating elements such as encoder rotary encoders, a digital user interface and a 4.3-inch LCD for intuitive control of all parameters.
Thanks to versatile protection functions (OVP, OCP, OTP), fine resolution (10 mV / 1 mA) and automatic series/parallel connection, the GPE-x323A series offers ideal conditions for precise tests in a wide range of applications - from product development to training.
The GPE-2323A model is equipped with two independently isolated outputs, each delivering 0-32 V and 0-3 A - ideal for versatile test and measurement applications. With a total power of 192 W and the ability to connect the channels in series or parallel, it is suitable for tests where higher voltages (up to 64 V) or higher currents (up to 6 A) are required. The other models in the series have 1, 3 or 4 channels.
Typical areas of application:
- Development and testing of electronic devices and circuits
- Research laboratories and technical universities
- Production lines with parallel testing of multiple units
- Test benches with requirements for high voltage or current values
- 3C electronics tests (computers, communication, consumer electronics)
Technical product features GPE-2323A:
- Output power: 2× 0-32 V / 0-3 A (total: 192 W)
- Series/parallel connection: up to 64 V / 3 A resp. 32 V / 6 A
- Measurement resolution: 10 mV / 1 mA for precise adjustment and feedback
- 4.3-inch LCD display: for clear display of all parameters
- Encoder rotary encoder: for simple, precise operation
- OVP, OCP, OTP: protective functions for maximum safety
- Galvanically isolated outputs: interference-free, independent measurements
- Low ripple & noise: ≤ 1 mVrms (5 Hz - 1 MHz)
- Recovery time on load change: ≤ 100 µs
- Panel Lock: against accidental operation
- Power supply: AC 100-230 V ±10 %, 50/60 Hz
- Dimensions: 210 × 155 × 306 mm (W × H × D)
- Weight: approx. 7 kg
