Benning 044087 | Multimeter MM6-2

Name: 044087 | Multimeter MM6-2
Brand: Benning
SKU: 044087
Price: 216.4 EUR
Availability: InStock

Manufacturer number: 044087

Delivery time upon request

€216.40

or choose one of the following options:

Request a quote Product inquiries Request education-price Share

Benning 044087 | 4-digit TRMS digital multimeter MM6-2, CAT IV 600 V, CAT III 1000 V.

4-digit, illuminated LCD display (6,000 points)
Measuring range DC / AC voltage: 0.1 mV - 1000 V
Measuring range direct / alternating current: 1 mA - 10 A
Resistance measuring range: 0.1 Ω - 40 MΩ
Frequency measurement range: 0.01 Hz - 100 kHz
Measuring range capacitance: 1 nF - 10 mF
Continuity test (20 Ω) (red LED / buzzer) / diode test (1.5 V)
Precise thanks to TRUE RMS true RMS measurement method
AutoV function for automatic AC / DC voltage detection and low input impedance (LoZ) to suppress capacitive / inductive stray voltages
Integrated volt sensor signals contactless phase voltages and cable breaks in lines (optical / acoustic), single-pole phase test
Automatic / manual range selection, automatic shutdown, battery undervoltage display
Measured value (HOLD), peak value memory (PEAK), relative measurement (REL)
Measurement category CAT IV 600 V, CAT III 1000 V
Unit dimensions: H163 x W82 x D50 mm with rubber protective frame
Device weight: 410 g with protective rubber frame
Degree of protection: IP 30
Incl. Protective rubber frame with magnetic hanger, bag, battery (1 x 9 V block / LR61), test leads

Technical Data

Analogue segment display:	No
Article number:	044087
Backlight:	Yes
Basic precision:	0,5 %
Capacity measuring range:	1 nF - 10 mF
Current measuring range AC/DC:	20mA-10A / 1mA-10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	163 x 82 x 50
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6
Electrical safety:	CAT IV 600 V
Frequency measuring range:	0,01 Hz - 100 kHz
Min. / Max. Recording:	Yes / Yes
Model:	MM 6-2
Number of positions:	4
Resistance measuring range:	0,1 Ω - 40 MΩ
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	100 µV - 1000 V / 100 µV - 1000 V
Warranty (years):	2
Weight (kg):	0.41

Documents & Downloads

Datasheet

pdf | 0.91 MB

Description

044087 | Multimeter MM6-2

Thanks to protection class TRUE RMS, CAT IV 600 V, it is ideally suited for industry, electrical engineering and service.

The TRUE RMS measurement method and the highest measurement category CAT IV 600 V enable use in an industrial environment and guarantee reproducible measurement results. The measurement functions are designed to meet the diverse requirements of electrical specialists in the trades, industry and service.

Accessoires (6 products)

Benning
044126

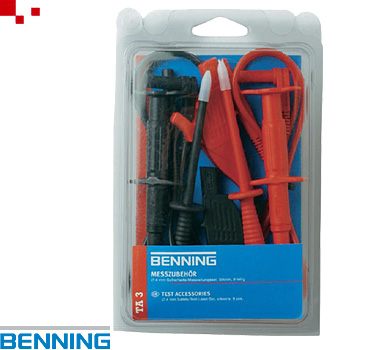

TA 3, safety test lead set 8 piece set, 4mm, CAT III 1000V

Delivery time upon request

€61.60

Benning
044120

TA4 magnetic hanger for Benning Multimeter and Benning IT 101, 3 pieces

Delivery time upon request

€32.50

Benning
10198412

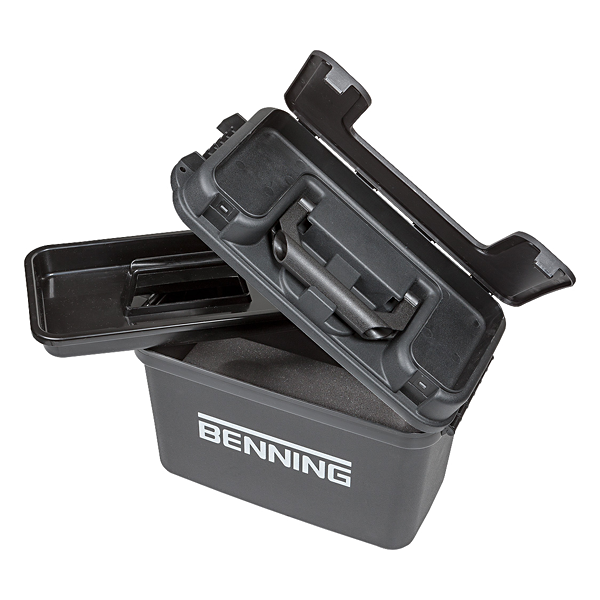

Hard case for BENNING accessories with foam insert, separate shelf
