BEHA PRM-6-EUR | Rotating field direction indicator and motor direction tester, LCD

Manufacturer number: PRM-6-EUR

PRM-6-EUR
PRM-6-EUR
PRM-6-EUR
PRM-6-EUR
PRM-6-EUR
Reordered - in stock. Delivery time on request

€133.63

% €161.00 (17% saved)

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

BEHA Amprobe PRM-6-EUR | Rotating field direction indicator and motor direction tester, LCD.

Technical Data

Documents & Downloads

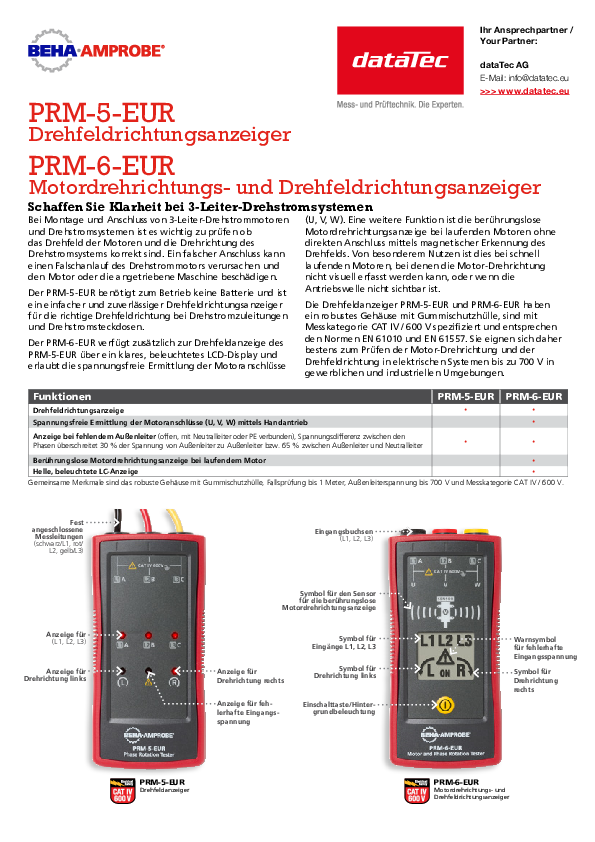

Datasheet
PRM-6-EUR
pdf | 0.90 MB

Description

PRM-6-EUR | Rotating field direction indicator and motor direction tester, LCD

When installing and connecting 3-wire three-phase motors and three-phase systems, it is important to check whether the rotating field of the motors and the direction of rotation of the three-phase system are correct. An incorrect connection can cause the three-phase motor to start incorrectly and damage the motor or the driven machine.

In addition to the rotating field display of the PRM-5-EUR, the Beha Amprobe PRM-6-EUR has a clear, illuminated LCD display and allows the motor connections (U, V, W) to be determined without voltage. Another function is the non-contact indication of the direction of rotation of the motor when the motors are running without a direct connection by means of magnetic detection of the rotating field.

Product features:

  • Rotating field display with LC display
  • Display of a missing or incorrectly connected outer conductor
  • Contactless display of the direction of rotation of the motor while the motors are running
  • Voltage-free determination of the motor connections (U, V, W) by means of a manual drive
  • Fast determination of the phase sequence in the three-phase network
  • Voltage range from 40 to 700 V, frequency range 16 to 400 Hz
  • Robust housing with protective rubber cover
  • Detachable test leads
  • Measurement category CAT IV, 600 V
  • Backlight
  • Rotary field direction test also possible with or without a discharged battery
  • Measurement category CAT IV, 600 V

Alternate products

Alternate products

PRM-5-EUR
BEHA
PRM-5-EUR
Rotary field direction indicator with measuring lines
Delivery time upon request
-17 % €102.09 €123.00

About the Manufacturer

BEHA
BEHA

Beha-Amprobe is a renowned manufacturer of test and measurement instruments for electrical engineering and combines the experience of the German brand Beha with that of the American brand Amprobe. The portfolio includes installation testers, appliance testers for testing in accordance with DIN VDE 0701 / VDE 0702, digital multimeters, clamp meters, continuity testers, and thermometers.
