B&K Precision 1692 | DC Power Supply Unit, 3 - 15 V, 40 A

Name: 1692 | DC Power Supply Unit, 3 - 15 V, 40 A
Brand: B&K Precision
SKU: BK1692
Price: 440.0 EUR
Availability: InStock

Manufacturer number: BK1692

Delivery time upon request

€440.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 1692 | DC switching power supply, 3 - 15 V, 40 A.

Technical Data

AC input:	120 V, 60 Hz
Additional functions:	Variable output voltage 3 V - 15 V or 13.8 V
Article number:	BK1692
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	300 x 220 x 110
Model:	BK1692
Number of outputs:	1
Output power (W):	600
Protective devices:	OVP, OTP
Warranty (years):	1
Weight (kg):	4.6
max. Power (A):	40
max. voltage (V):	15

Description

1692 | DC Power Supply Unit, 3 - 15 V, 40 A

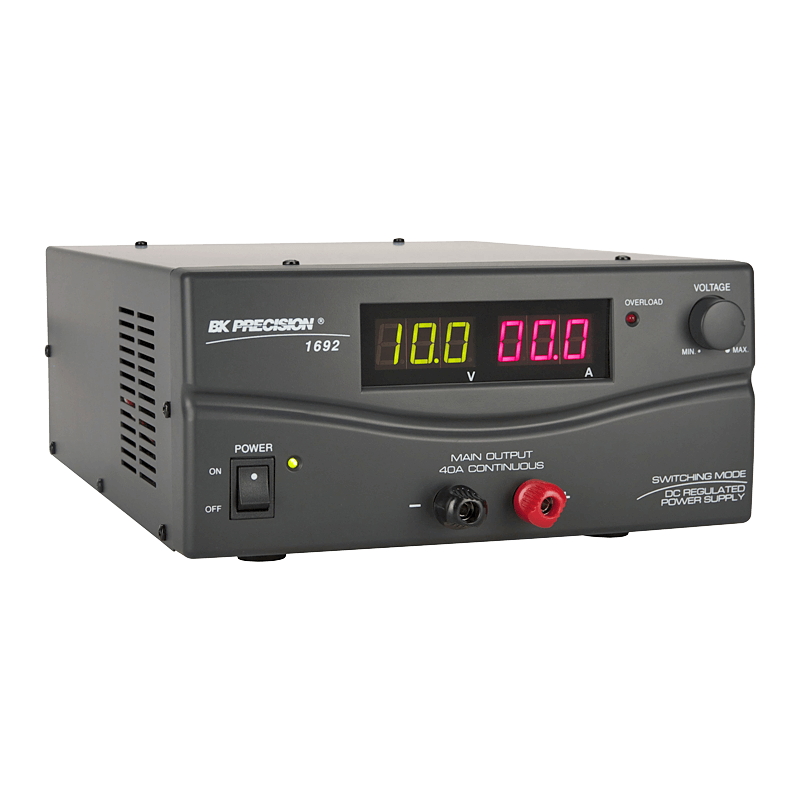

The B&K Precision 1692 is a high performance switching power supply that offers a high output current in a compact and lightweight design. It is ideal for a wide range of applications, especially for powering DC-powered mobile devices in the laboratory. Thanks to the switching power supply technology, it offers high efficiency that can reach over 80% under optimal conditions. Advanced protection circuits reliably prevent any overloads that may occur.

The power supply unit offers a variable output voltage of 3 V to 15 V with a continuous current output of 40 A. It also has a fixed output voltage of 13.8 VDC, which can be selected via a slide switch. The device is equipped with a digital LED display, which provides a precise and easy-to-read display of the settings. Additional protective functions such as overtemperature protection, overvoltage protection and a current feedback circuit ensure maximum safety during operation.

Product features:

Output voltage: 3 - 15 V or fixed 13.8 VDC (switchable)
Output current: 40 A continuous
Ripple and noise: < 10 mVrms
Mains voltage regulation (120V ±10%): 80 mV
Load regulation (0 - 100% load): 230 mV
AC input: 120 VAC, 60 Hz
Display: Two-color LED digital display
Dimensions (H x W x D): 220 x 110 x 300 mm
Weight: 3.5 kg

About the Manufacturer

B&K Precision

B&K Precision is a renowned manufacturer of electronic test and measurement instruments with more than 75 years of experience, developing precise solutions for research, industry, education, and development. The broad portfolio includes oscilloscopes, DC power supplies, electronic DC loads, digital multimeters, LCR meters, function generators, spectrum analyzers, and frequency counters.
