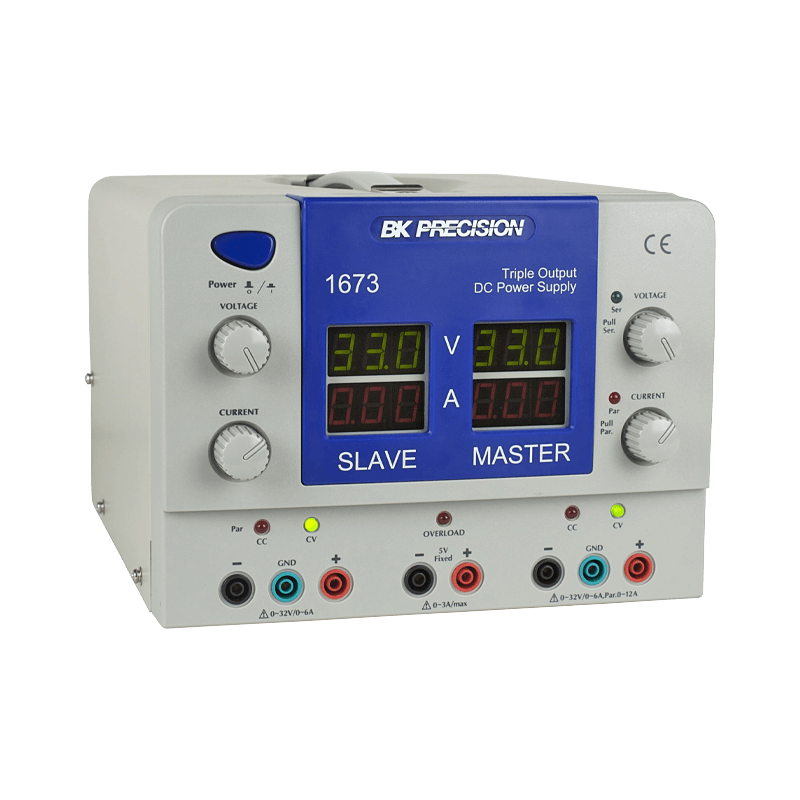

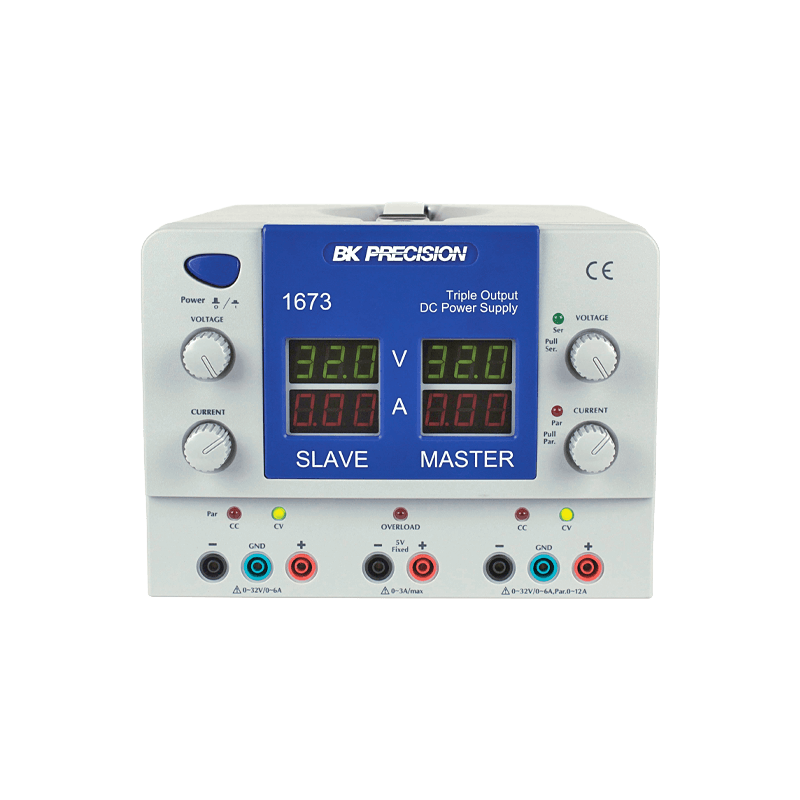

B&K Precision 1673 | DC Power Supply Unit, 3 Channel (2 Variable, 1 Fixed), 0-32 V / 0-6 A // 5 V/3 A

Manufacturer number: BK1673

1673
1673
1673
Series
Delivery time upon request

€1,010.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 1673 | DC power supply unit, 3 channel (2 variable, 1 fixed), 0-32 V / 0-6 A // 5 V/3 A.

Technical Data

Documents & Downloads

Datasheet
BK1672
pdf | 1.63 MB

Description

1673 | DC Power Supply Unit, 3 Channel (2 Variable, 1 Fixed), 0-32 V / 0-6 A // 5 V/3 A

The B&K Precision 1673 is a 3-channel DC power supply that is ideal for applications in electronics testing, production and maintenance. With two variable outputs and one fixed 5 V output, this power supply offers flexibility and precision for a wide range of applications. The B&K Precision 1673 is a reliable and versatile solution for laboratories, repair workshops and production environments that require a precise, stable and safe power supply unit.

The Variant 1673 has a voltage of 0 - 32 V and 0 - 6 A on the two variable channels. Alternatively, choose the Variant 1672, which offers 0 - 32 V and 0 - 3 A on the two adjustable channels.

Product features:

  • Three independent outputs: Two variable outputs (0-32V, 0-6A) and one fixed output (5V, 3A).
  • Individual control: Separate rotary controls for voltage and current of the variable outputs.
  • CV/CC operation: Support for constant voltage (CV) and constant current (CC) mode with automatic switching.
  • LED indicators: 3-digit green LEDs for voltage, red LEDs for current and LEDs to indicate CV/CC mode and overload protection.
  • Series and parallel mode: Possibility to double the output voltage or current via a simple push/pull circuit.
  • Precise regulation:
    • Line regulation: < 0.01% + 5 mV
    • Load regulation: < 0.55% + 10 mV
    • Ripple & Noise: < 1 mVrms (independent/master), < 4 mVrms (slave)
  • Safety: Isolated safety sockets to comply with international safety standards.
  • User-friendly design: Robust construction with dimensions of 230 x 170 x 310 mm and a weight of 9.0 kg.

Alternate products

Alternate products

1672
Series
Series
B&K Precision
1672

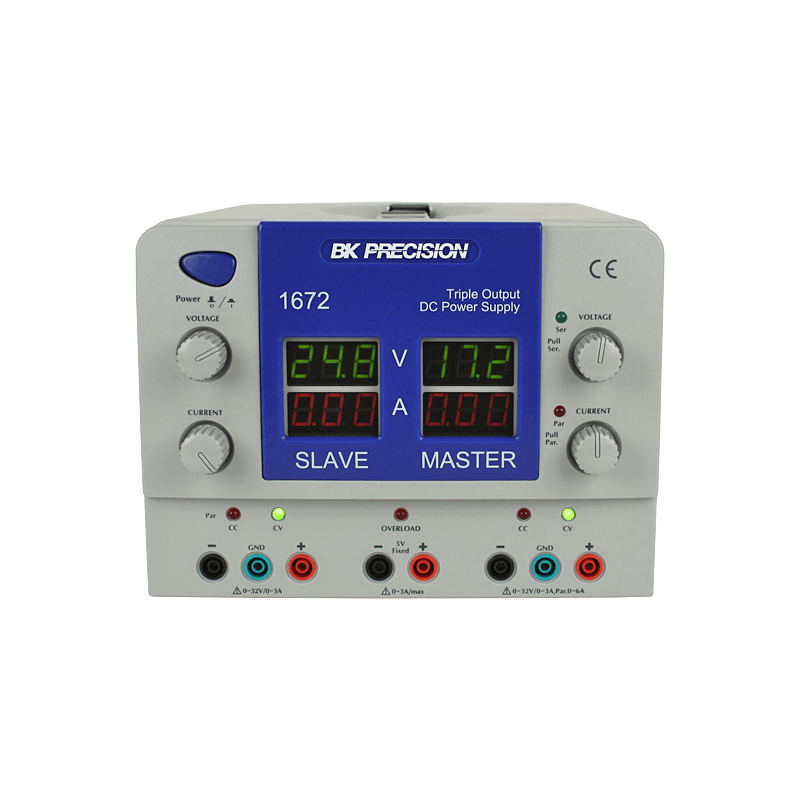

DC power Supply Unit, 3 Channel (2 Variable, 1 Fixed), 0-32 V / 0-3 A // 5 V/3 A
Delivery time upon request
€590.00

About the Manufacturer

B&K Precision
B&K Precision

B&K Precision is a renowned manufacturer of electronic test and measurement instruments with more than 75 years of experience, developing precise solutions for research, industry, education, and development. The broad portfolio includes oscilloscopes, DC power supplies, electronic DC loads, digital multimeters, LCR meters, function generators, spectrum analyzers, and frequency counters.
