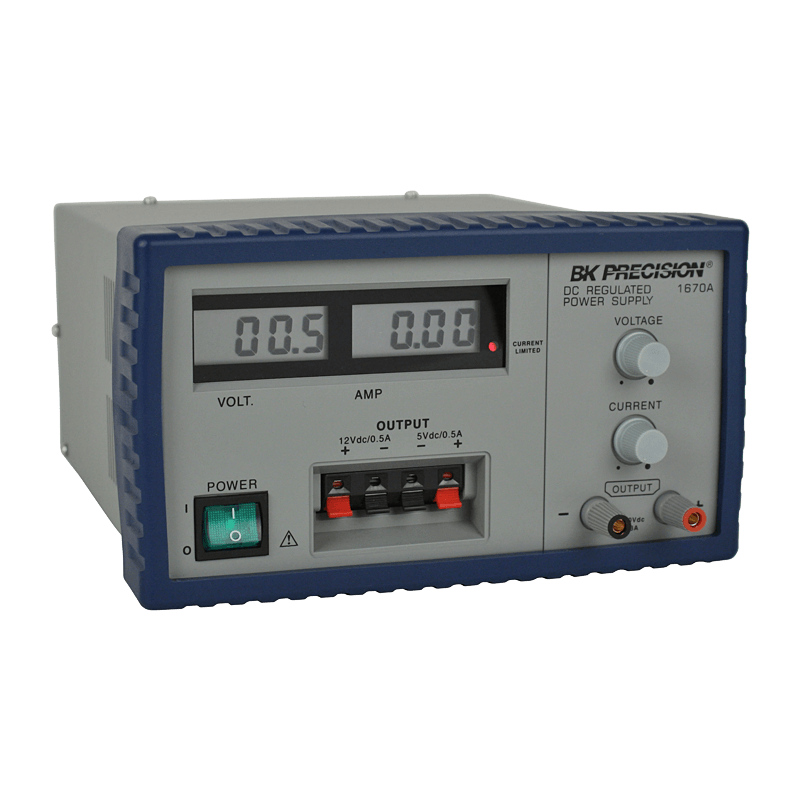

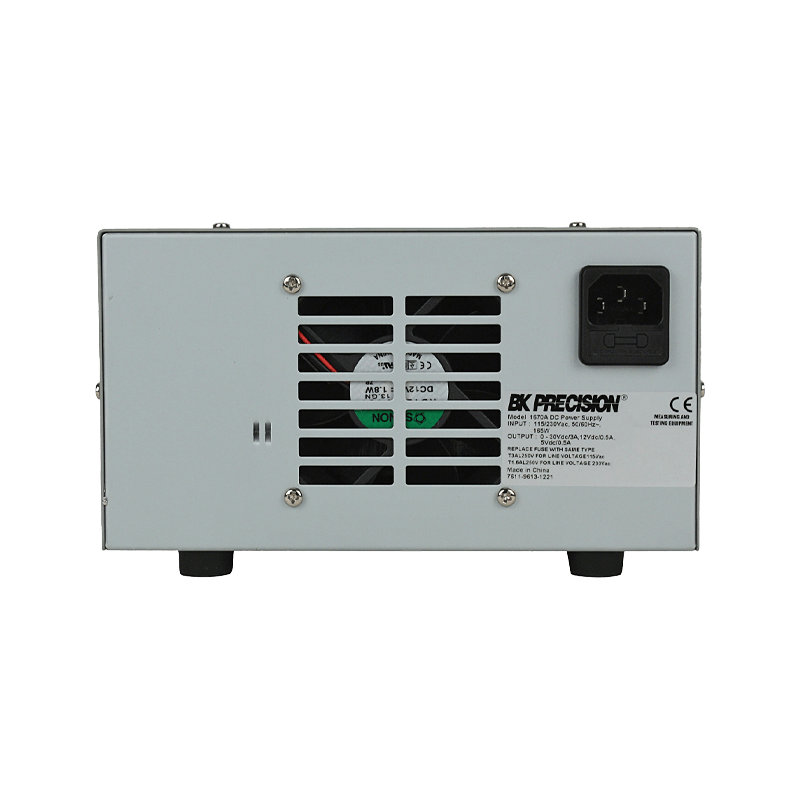

B&K Precision 1670A | DC Power Supply Unit, 3 Channel (1 Variable, 2 Fixed), 0-30 V / 3 A // 5 V/500 mA // 12 V/500 mA

Manufacturer number: BK1670A

1670A
1670A
1670A
Series
Delivery time upon request

€299.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 1670A | DC power supply unit, 3 channel (1 variable, 2 fixed), 0-30 V / 3 A // 5 V/500 mA // 12 V/500 mA.

Technical Data

Documents & Downloads

Datasheet
BK1670A
pdf | 0.43 MB

Description

1670A | DC Power Supply Unit, 3 Channel (1 Variable, 2 Fixed), 0-30 V / 3 A // 5 V/500 mA // 12 V/500 mA

The B&K Precision 1670A is a high quality, 3-channel DC power supply that is ideal for use in general electronics development, laboratories and hobby projects. It offers a combination of one variable output and two fixed outputs with comprehensive protection and precise measurement functions.

The 1670A has one channel with 0 - 30 VDC, 0 - 3 A and two fixed channels (12 VDC & 5 VDC with 500 mA each). The power supply unit has 165 W.

Alternatively, we recommend the more powerful 1671A version. This model has a variable channel of 0 - 30 VDC with 0 - 5 A and an output of 265 W.

Product features:

  • Number of outputs: 3 (1 variable, 2 fixed)
  • Variable output: 0 - 30 VDC, 0 - 3 A
  • Fixed outputs: 12 VDC ±5% / 500 mA, 5 VDC ±5% / 500 mA
  • Operating modes: Constant voltage (CV) and constant current (CC)
  • Control accuracy (CV mode):
    • Line regulation: ≤0.05% + 10 mV
    • Load regulation: ≤0.05% + 10 mV
  • Control accuracy (CC mode):
    • Current range: 5% - 100%
    • Line control: ≤0.4% + 10 mA
    • Load control: ≤0.4% + 10 mA
  • Ripple & noise:
    • CV mode: ≤5 mV rms
    • CC mode: ≤10 mA rms
  • Measurement display: 3-digit LCD displays
  • Voltage resolution: 0.1 V
  • Current resolution: 0.01 A
  • Protective functions: Overcurrent limitation, reverse polarity protection, overvoltage protection, short-circuit protection
  • Mains connection: 115/230 VAC, 50/60 Hz
  • Power consumption: 165 W
  • Dimensions (H x W x D): 124 x 216 x 242 mm
  • Weight: 4.5 kg

Alternate products

Alternate products

1671A
Series
Series
B&K Precision
1671A
DC Power Supply Unit, 3 Channel (1 Variable, 2 Fixed), 0-30 V / 5 A // 5 V/500 mA // 12 V/500 mA
Delivery time upon request
€309.00
