Spectrum Analysis / EMC

Spectrum analyzers for displaying and analyzing the frequencies contained in a signal. Ideal for development, EMC measurements and telecommunications.

277 products

Shieldex
RF-X C

RF Shielding Tent for Pendulum EMV Scanner SCN-500, 1000 x 700 x 1000 mm

CHF 5,201.00

Delivery time upon request

Bundle

Rohde&Schwarz
FPL-EMI3

FPL1003 spectrum analyzer bundle, FPL series, 5 kHz to 3 GHz, 40 MHz (1304.0004P61)

-10 % CHF 15,367.00 CHF 17,082.00

Delivery time upon request

Series

Rohde&Schwarz
FPH series

Spectrum Rider, portable spectrum analyzers

Price depending on choice of model

Select now

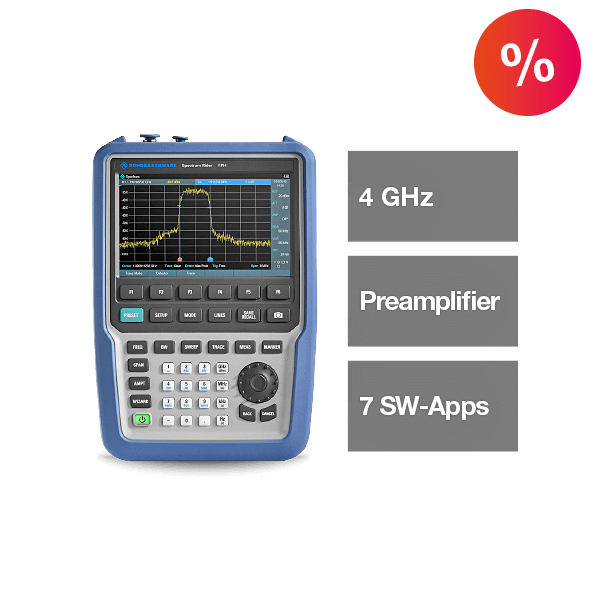

Rohde&Schwarz
1321.1111P99

FPH-COM1 spectrum analyzer, handheld, Spectrum Rider FPH, "All-Inclusive", 5 kHz - 4 GHz

-15 % CHF 11,113.00 CHF 13,076.00

Delivery time upon request

Bundle

Rohde&Schwarz
FPL-EMI7

FPL1007 spectrum analyzer bundle, FPL series, 5 kHz to 7.5 GHz, 40 MHz (1304.0004P62)

-24 % CHF 16,164.00 CHF 21,537.00

Delivery time upon request

Rohde&Schwarz
FSC3

Spectrum analyzer, 9 kHz - 3 GHz, tracking generator, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.13)

Sweep: linear
DANL Displayed Average Noise: -161 dBm
Resolution bandwidth: 1Hz
Filter bandwidths: 1 Hz to 3 MHz in 1/3 sequence
Dynamics: 191 dB
Interfaces: USB, LAN, audio, trigger, IF out, DC in
Detectors: max peak, min peak, auto peak, sample, RMS
max. Frequency range (GHz): 3
SSB phase noise: -95 dBc @ 500 MHz (30 kHz carrier offset)
Measurement functions: Noise marker, Modulation depth of AM-modulated signals, Power of pulsed signals in the time domain with predefined settings for GSM and EDGE mobile radio standards, Channel power measurement in a definable transmission channel with predefined settings for
min. Frequency range (KHz): 9
Amplitude range: -161 dBm to 30 dBm
Tracking-Generator: Yes
Frequency stability: 2.5 ppm

CHF 9,296.00

Delivery time upon request

Rohde&Schwarz
FSH13

Spectrum analyzer, handheld, 9kHz - 13.6GHz preamplifier (1314.2000.13)

min. Frequency range (KHz): 9
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Tracking-Generator: No
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
max. Frequency range (GHz): 13.6
Frequency stability: 1ppm
Sweep: linear, logarithmic

CHF 16,970.00

Delivery time upon request

Series

Rohde&Schwarz
FPL1000 Series

Spectrum analyzer, 5 kHz to 7.5 GHz, 40 MHz, optional battery operation

Price depending on choice of model

Select now

Rohde&Schwarz
FSH20

Spectrum analyzer, handheld, 9 kHz - 20 GHz preamplifier (1314.2000.20)

min. Frequency range (KHz): 9
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Tracking-Generator: No
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
Frequency stability: 1ppm
Sweep: linear, logarithmic
max. Frequency range (GHz): 20

CHF 21,486.00

Delivery time upon request

LANGER
PA203BNC

Preamplifier, 100 kHz to 3 GHz, 20 dB, connection BNC, box, power supply

CHF 499.00

Delivery time upon request

Rohde&Schwarz
FSH8

Spectrum analyzer, handheld, 100 kHz - 8 GHz preamplifier, tracking generator, VSWR bridge (1309.6000.28)

Tracking-Generator: Yes
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
Frequency stability: 1ppm
Sweep: linear, logarithmic
max. Frequency range (GHz): 8
min. Frequency range (KHz): 100

CHF 19,443.00

Delivery time upon request

Rohde&Schwarz
FSH13

Spectrum analyzer, handheld, 9kHz - 13.6GHz preamplifier, tracking generator, VSWR measuring bridge (1314.2000.23)

min. Frequency range (KHz): 9
Tracking-Generator: Yes
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
max. Frequency range (GHz): 13.6
Frequency stability: 1ppm
Sweep: linear, logarithmic

CHF 20,455.00

Delivery time upon request

Rohde&Schwarz
FSC6

Spectrum analyzer, 9 kHz - 6 GHz, tracking generator, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.16)

Sweep: linear
DANL Displayed Average Noise: -161 dBm
Resolution bandwidth: 1Hz
Filter bandwidths: 1 Hz to 3 MHz in 1/3 sequence
Dynamics: 191 dB
Interfaces: USB, LAN, audio, trigger, IF out, DC in
Detectors: max peak, min peak, auto peak, sample, RMS
SSB phase noise: -95 dBc @ 500 MHz (30 kHz carrier offset)
Measurement functions: Noise marker, Modulation depth of AM-modulated signals, Power of pulsed signals in the time domain with predefined settings for GSM and EDGE mobile radio standards, Channel power measurement in a definable transmission channel with predefined settings for
min. Frequency range (KHz): 9
Amplitude range: -161 dBm to 30 dBm
Tracking-Generator: Yes
Frequency stability: 2.5 ppm
max. Frequency range (GHz): 6

CHF 11,619.00

Delivery time upon request

Rohde&Schwarz
FSH20

Spectrum analyzer, handheld, 9 kHz - 20 GHz preamplifier, tracking generator, VSWR bridge (1314.2000.30)

min. Frequency range (KHz): 9
Tracking-Generator: Yes
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
Frequency stability: 1ppm
Sweep: linear, logarithmic
max. Frequency range (GHz): 20

CHF 24,475.00

Delivery time upon request

LANGER
PA303SMA

Preamplifier, 100 kHz to 3 GHz, 30 dB, connection SMA, box, power supply

CHF 553.00

Delivery time upon request

LANGER
PA303BNC

Preamplifier, 100 kHz to 3 GHz, 30 dB, connection BNC, box, power supply

CHF 499.00

Delivery time upon request

Rohde&Schwarz
FSC3

Spectrum analyzer, 9 kHz - 3 GHz, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.03)

Sweep: linear
DANL Displayed Average Noise: -161 dBm
Resolution bandwidth: 1Hz
Filter bandwidths: 1 Hz to 3 MHz in 1/3 sequence
Dynamics: 191 dB
Interfaces: USB, LAN, audio, trigger, IF out, DC in
Detectors: max peak, min peak, auto peak, sample, RMS
max. Frequency range (GHz): 3
SSB phase noise: -95 dBc @ 500 MHz (30 kHz carrier offset)
min. Frequency range (KHz): 9
Amplitude range: -161 dBm to 30 dBm
Frequency stability: 2.5 ppm
Tracking-Generator: No
Measurement functions: Noise marker, Modulation depth of AM-modulated signals, Power of pulsed signals in the time domain with predefined settings for GSM and EDGE mobile radio standards, Channel power measurement in a definable transmission channel with predefined settings for

CHF 7,506.00

Delivery time upon request

Rohde&Schwarz
HZ-17

Near-field probe set, for H-field, 30 MHz - 3 GHz (1339.4141.02)

CHF 1,125.00

Delivery time upon request

LANGER
PA303N

Preamplifier, 100 kHz to 3 GHz, 30 dB, Type-N connector, box, power supply

CHF 653.00

Delivery time upon request

Rohde&Schwarz
FSH8

Spectrum analyzer, handheld, 9 kHz - 8 GHz, preamplifier, tracking generator (1309.6000.18)

min. Frequency range (KHz): 9
Tracking-Generator: Yes
Filter bandwidths: 1 Hz to 5 MHz in 1/3 sequence, EMI bandwidth optional
Measurement functions: Vector transmission (S12) and reflection (S22) measurement One-port cable attenuation measurement TDMA power measurement Channel power measurement Field strength measurement/measurement with isotropic antenna Measurement of the occupied bandwidth Frequenc
Detectors: max. peak, min. peak, auto peak, sample, RMS
Amplitude range: up to +30 dBm
Resolution bandwidth: 1 Hz to 5 MHz
Dynamics: 185 dB
DANL Displayed Average Noise: -155 dBm
Analysis bandwidth (MHz): 20
Interfaces: USB, LAN, IF out
SSB phase noise: < -95 dBc/Hz @ 500 MHz (30 kHz carrier offset)
Frequency stability: 1ppm
Sweep: linear, logarithmic
max. Frequency range (GHz): 8

CHF 14,027.00

Delivery time upon request

Pendulum
SCN-522 / 3G

Detectus near field scanner 2D, EMV, 3 GHz, scanning area 200 mm x 100 mm

Scanning area (X,Y,Z) (mm): 200 x 100
Interfaces: USB
min. Step size (mm): 0.1
Scan type: 2D
Bandwidth (GHz): 3

On Request

Delivery time upon request

Pendulum
SCN-564 / 6G

Detectus near field scanner 4D, EMV, 6 GHz, scanning area 600 mm x 400 mm x 300 mm

Interfaces: USB
min. Step size (mm): 0.1
Scanning area (X,Y,Z) (mm): 600 x 400 x 300
Scan type: 4D
Bandwidth (GHz): 6

On Request

Delivery time upon request

Pendulum
SCN-524 / 3G

Detectus near field scanner 4D, EMV, 3 GHz, scanning area 200 mm x 100 mm x 100 mm

Interfaces: USB
min. Step size (mm): 0.1
Bandwidth (GHz): 3
Scan type: 4D
Scanning area (X,Y,Z) (mm): 200 x 100 x 100

On Request

Delivery time upon request

Rohde&Schwarz
FSC6

Spectrum analyzer, 9 kHz - 6 GHz, -141 dBm - +20 dBm, RBW 10 Hz - 3 MHz (1314.3006.06)

Sweep: linear
DANL Displayed Average Noise: -161 dBm
Resolution bandwidth: 1Hz
Filter bandwidths: 1 Hz to 3 MHz in 1/3 sequence
Dynamics: 191 dB
Interfaces: USB, LAN, audio, trigger, IF out, DC in
Detectors: max peak, min peak, auto peak, sample, RMS
SSB phase noise: -95 dBc @ 500 MHz (30 kHz carrier offset)
min. Frequency range (KHz): 9
Amplitude range: -161 dBm to 30 dBm
Frequency stability: 2.5 ppm
Tracking-Generator: No
max. Frequency range (GHz): 6
Measurement functions: Noise marker, Modulation depth of AM-modulated signals, Power of pulsed signals in the time domain with predefined settings for GSM and EDGE mobile radio standards, Channel power measurement in a definable transmission channel with predefined settings for

CHF 9,698.00

Delivery time upon request
