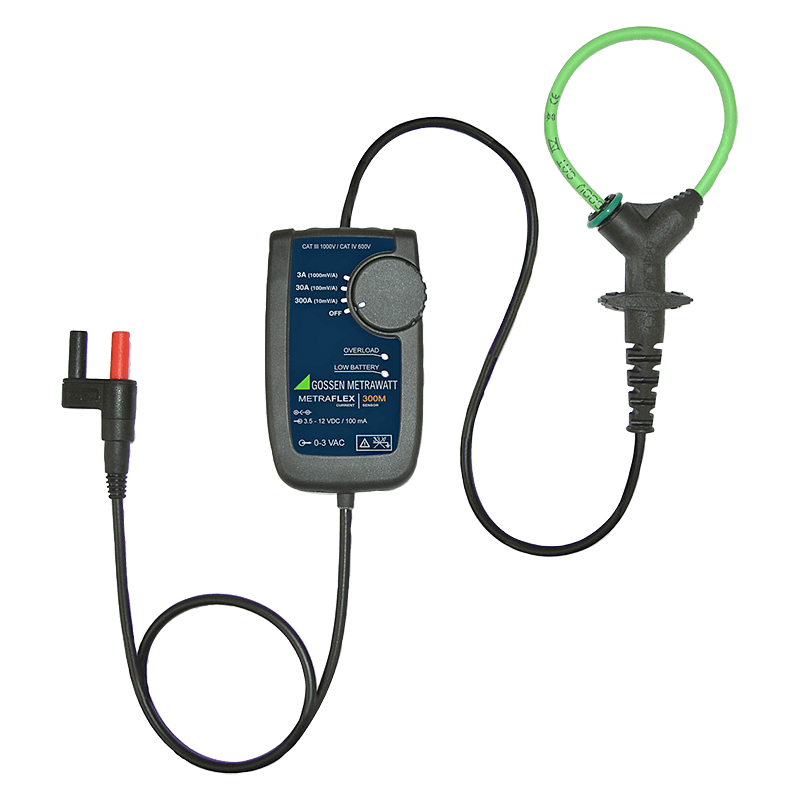

Gossen Metrawatt Z207M | Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Manufacturer number: Z207M

Z207M
Ready to ship in 5 to 10 business days

CHF 653.00

plus VAT. CHF 705.89 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product inquiries Request education-price
Highlights Technical Data Description Related Articles

Gossen Metrawatt Z207M | METRAFLEX 300M Flexible current sensor 3/30/300 A, 1000-10mV / A, loop length 160mm with 4 mm safety plug for multimeter.

  • Wide range of applications, 3 measuring ranges 3/30/300 A AC and high bandwidth 20 Hz ... 100 kHz (± 1dB / 50 Hz) for harmonic analysis
  • Output sensitivity: 1000 mV / A, 100 mV / A, 10 mV / A
  • Accurate measurement even at low currents, thanks to the large dynamic range and high sensor sensitivity
  • Low position influence of the conductor and minimal external field influence
  • Easy to use in confined spaces thanks to the small sensor cross-section of 6 mm
  • Safe handling even with protective gloves, opening the sensor and measuring range setting in one-hand operation
  • Current sensor with protection class IP50, measuring amplifier with IP40
  • High level of safety for the user, measurement category 1000V @CAT III, 600V @CAT IV and unlimited overload capacity, designed for continuous operation
  • Output connection: 1 pair of 4 mm safety plugs for connection to a Metrahit multimeter

Technical Data

Description

Z207M | Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

With the micro-Rogowski current sensor, you can measure safely, precisely and flexibly in connection with your multimeter, both on busbars and in power distribution.

The coil is particularly suitable for difficult to access and tight spaces. The current sensor can be operated by an external power supply for long-term measurements.
