Gossen Metrawatt

Gossen Metrawatt GmbH is a leading company with a long tradition that specializes in the development of innovative solutions in the field of precision test and measurement technology. With an extensive product portfolio, it provides reliable tools that ensure the safety and efficiency of electrical systems – both on the international and the Swiss markets.

  • The company's history dates back to the early 1900s, when Metrawatt AG and Paul Gossen GmbH were founded. In 1993, these two industry pioneers merged to form today's Gossen Metrawatt GmbH.
  • Gossen Metrawatt products are used in a wide variety of areas, e.g. in the electrical trade, in industry and the medical sector.
  • The portfolio includes appliance testers in accordance with the VDE 0701 / VDE 0702 / VDE 0751-1 standards and more, installation testers, machine testers, digital multimeters, current clamps, insulation measuring devices and photovoltaic measuring devices.

Product highlights:

Filter products
350 products
M311H
Gossen Metrawatt
M311H
Metraclip 64 current clamp AC / DC, 999mA, 4 digits
  • Enclosure (mm): 30
  • Measurement method: TRMS
  • Diode test / continuity test: No / No
  • Resolution current measurement AC/DC: 0.01 mA
  • Number of positions: 3.5
  • Resistance measuring range: No
  • Hold: Yes
  • Accuracy current measurement AC/DC: ±1 % / ±1 % - ±3 %
  • Power factor: Nein
  • Direction of rotation: No
  • Min. / Max. Measurement: No / No
  • Frequency measuring range: No
  • Temperature measuring range: No
  • Current measuring range AC/DC: 0 A - 19 A / 0.1 mA - 1000 mA
  • Power measurement (active / apparent / reactive): No / No / No
CHF 1,406.00
Ready to ship in 5 to 10 business days
M234D
Gossen Metrawatt
M234D
Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate
  • Current measuring range AC/DC: 300µA - 10A / 300µA - 10A
  • Temperature measurement ( PT100 / Type K / Type J): Pt100 / Type K
  • Backlight: Yes
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Diode test / continuity test: Yes / Yes
  • Data memory / logger: No / No
  • Frequency measuring range: 300 Hz - 1000 kHz
  • Interfaces: USB
  • Number of positions: 4.75
  • Voltage measuring range AC/DC: 300 mV - 600 V / 30 mV - 600 V
  • Basic precision: 0,05 %
  • Resistance measuring range: 30 Ω - 30 MΩ
  • Electrical safety: CAT II 300 V
  • Display resolution: 31000
CHF 1,018.00
Ready to ship in 5 to 10 business days
PROFITEST Prime Master Package
Bundle
Gossen Metrawatt
PROFITEST Prime Master Package
Machine tester including case, trolley, probe & measuring clamp (M516L)
CHF 6,809.00
Delivery time upon request
MetraHit 2+
Gossen Metrawatt
MetraHit 2+
Multimeter, TRMS, 3 6/7, IP40 (M205A)
  • Backlight: Yes
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Diode test / continuity test: Yes / Yes
  • Data memory / logger: No / No
  • Number of positions: 3.85
  • Display resolution: 6000
  • Resistance measuring range: 600 Ω - 40 MΩ
  • Current measuring range AC/DC: 60mA-10A / 60mA-10A
  • Temperature measurement ( PT100 / Type K / Type J): -50°C - +400°C
  • Electrical safety: CAT III 600 V
  • Frequency measuring range: 100 Hz - 1000 Hz
  • Voltage measuring range AC/DC: 600 mV - 600 V / 600 mV - 600 V
  • Basic precision: 1 %
CHF 328.00
10 in stock. Ready to ship in 1 business day
M240A
Gossen Metrawatt
M240A
Metrahit X-TRA Multimeter, Hand 4 ½ Digits, 12,000 Digits, IR Interface, DAkkS
  • Data memory / logger: Yes / Yes
  • Backlight: Yes
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Diode test / continuity test: Yes / Yes
  • Electrical safety: CAT III 1000 V, CAT IV 600 V
  • Resistance measuring range: 100 Ω - 40 MΩ
  • Basic precision: AC 1 % / DC 0.09 %
  • Device type: Multimeter
  • Temperature measurement ( PT100 / Type K / Type J): Pt 100 / Pt 1000 / Type K
  • Number of positions: 4.5
  • Display resolution: 11999
  • Promotion valid until: While stocks last
  • Voltage measuring range AC/DC: 100 mV - 1000 V / 100 mV - 1000 V
  • Current measuring range AC/DC: 10mA-10A / 10mA-10A
  • Frequency measuring range: 100 Hz - 1 MHz
CHF 834.00
6 in stock. Ready to ship in 1 business day
METRAHITE ENERGY
Gossen Metrawatt
METRAHITE ENERGY
Multimeter, TRMS, 4 6/7, power & energy measurement (M249A)
  • Data memory / logger: Yes / Yes
  • Backlight: Yes
  • Basic precision: 0,02 %
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Interfaces: None
  • Diode test / continuity test: Yes / Yes
  • Electrical safety: CAT III 1000 V, CAT IV 600 V
  • Temperature measurement ( PT100 / Type K / Type J): Pt 100 / Pt 1000 / Type K
  • Resistance measuring range: 600 Ω - 60 MΩ
  • Number of positions: 4.85
  • Display resolution: 59999
  • Current measuring range AC/DC: 600µA - 10A / 600µA - 10A
  • Frequency measuring range: 600 Hz - 1 MHz
  • Voltage measuring range AC/DC: 60 mV - 600 V / 60 mV - 600 V
CHF 1,437.00
Reordered - in stock. Delivery time on request
PROFITEST Prime AC professional package
Bundle
Gossen Metrawatt
PROFITEST Prime AC professional package
Machine tester including case, trolley, HV gun & more (M516M)
CHF 7,746.00
Reordered - in stock. Delivery time on request
METRAHITE IN THE Xtra BT
Gossen Metrawatt
METRAHITE IN THE Xtra BT
TRMS multimeter, 4 3/4, milliohm, insulation, winding test, data (M273S)
  • Data memory / logger: Yes / Yes
  • Backlight: Yes
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Diode test / continuity test: Yes / Yes
  • Resistance measuring range: 300 Ω - 30 MΩ
  • Electrical safety: CAT III 1000 V, CAT IV 600 V
  • Number of positions: 4.75
  • Display resolution: 31000
  • Temperature measurement ( PT100 / Type K / Type J): Pt 100 / Pt 1000 / Type K
  • Frequency measuring range: 300 Hz - 30 kHz
  • Current measuring range AC/DC: 300µA - 1A / 300µA - 1A
  • Voltage measuring range AC/DC: 300 mV - 1000 V / 300 mV - 1000 V
  • Basic precision: 0,15 %
  • Interfaces: Bluetooth, WiFi Optional: USB
CHF 2,738.00
3 in stock. Ready to ship in 1 business day
M535H
Gossen Metrawatt
M535H
PROFiTEST MF XTRA VDE 0100 stationary test device
  • Interfaces: USB
  • Insulation measurement 1000V: Yes
  • Software included: Izytroniq
  • Automatic test sequence: Yes
  • Touch Display: No
  • Insulation measurement 325V: Yes
  • Selective, SRCDs, PRCDs, type G/R: Yes
  • Insulation measurement 500V: Yes
  • Check residual voltage: Yes
  • e-Mobility (prepared): Yes
  • Measured value memory: 50000
  • Insulation measurement 100V: Yes
  • Insulation measurement 250V: Yes
  • Rotating field direction: Yes
  • Insulation measurement 50V: Yes
  • All-current sensitive RCDs type B, B+: Yes
CHF 3,527.00
2 in stock. Ready to ship in 1 business day
M551T
Gossen Metrawatt
M551T
METRISO PRIME set insulation measuring device 5000V, 0.4 MOhm to 1 TOhm
CHF 2,348.00
Delivery time upon request
Z541F
Gossen Metrawatt
Z541F
KS-C test lead set for measurements in the G-ohm range
CHF 95.00
1 in stock. Ready to ship in 1 business day
METRAHIT PM PRIME BT (formerly ULTRA BT)
Gossen Metrawatt
METRAHIT PM PRIME BT (formerly ULTRA BT)
Multimeter, TRMS, 4 6/7, ± 0.02% VDC, Bluetooth
  • Data memory / logger: Yes / Yes
  • Current measuring range AC/DC: 300µA - 10A / 300µA - 10A
  • Number of positions: 5.75
  • Temperature measurement ( PT100 / Type K / Type J): Pt100 / Type K
  • Backlight: Yes
  • Voltage measuring range AC/DC: 300 mV - 600 V / 300 mV - 600 V
  • Electrical safety: CAT III 600 V, CAT IV 300 V
  • Basic precision: 0,02 %
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Frequency measuring range: 300 Hz - 1 MHz
  • Interfaces: None
  • Display resolution: 310000
  • Diode test / continuity test: Yes / Yes
  • Resistance measuring range: 300 Ω - 30 MΩ
CHF 1,249.00
Ready to ship in 5 to 10 business days
K111A
Gossen Metrawatt
K111A
Power supply unit, DC, 1 channel, linear 36V / 3A, 108W, LSP32K
  • AC input: 115 V / 230 V
  • Autorange: No
  • Number of outputs: 1
  • Interfaces: RS-232, RS-485
  • Bidirectional: No
  • max. voltage (V): 36
  • Output power (W): 108
  • max. Power (A): 3
CHF 1,159.00
Ready to ship in 5 to 10 business days

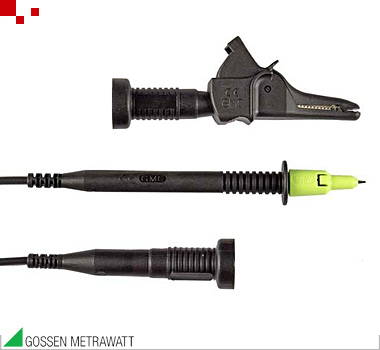

GTZ3201000R0001
Gossen Metrawatt
GTZ3201000R0001
KS 24 extension cable with test probe and 1x alligator clip, L = 4m
CHF 103.00
Ready to ship in 5 to 10 business days
M102A
Gossen Metrawatt
M102A
Metramax 2 multimeter, analog
  • Diode test / continuity test: No / No
  • Resistance measuring range: No
  • Frequency measuring range: No
  • Voltage measuring range AC/DC: 3 V - 300 V / 100 mV - 300 V
  • Data memory / logger: No / No
  • Min. / Max. Recording: No / No
  • True effective measurement TRMS: No
  • Basic precision: ACI Class 3 / DCI Class 2
  • Temperature measurement ( PT100 / Type K / Type J): No
  • Backlight: No
  • Electrical safety: CAT III 300 V
  • Display Hold / Auto-Hold: No / No
  • Current measuring range AC/DC: 100µA - 3A / 100µA - 3A
CHF 310.00
Ready to ship in 5 to 10 business days
M206A
Gossen Metrawatt
M206A
Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate
  • Backlight: Yes
  • True effective measurement TRMS: Yes
  • Special features: including DakkS calibration certificate
  • Min. / Max. Recording: Yes / Yes
  • Display Hold / Auto-Hold: Yes / Yes
  • Diode test / continuity test: Yes / Yes
  • Data memory / logger: No / No
  • Temperature measurement ( PT100 / Type K / Type J): -50°C - +800°C
  • Number of positions: 3.85
  • Interfaces: opt. Bidirectional IR/USB adapter
  • Display resolution: 6000
  • Electrical safety: CAT III 1000 V, CAT IV 600 V
  • Resistance measuring range: 600 Ω - 40 MΩ
  • Current measuring range AC/DC: 60mA-10A / 60mA-10A
  • Voltage measuring range AC/DC: 600 mV - 1000 V / 600 mV - 1000 V
  • Basic precision: 0,5 %
  • Frequency measuring range: 10 Hz - 1000 kHz
CHF 489.00
Ready to ship in 5 to 10 business days
Gossen Metrawatt
Z109N
Fuses FF0 16A / 400V, 5 x 20 mm, 10 pieces for Metrahit CAL
CHF 122.00
Ready to ship in 5 to 10 business days
M320A
Gossen Metrawatt
M320A
Metraclip 41 current clamp AC / DC, 40A / 40A
  • Measurement method: TRMS
  • Diode test / continuity test: No / No
  • Number of positions: 3.5
  • Resistance measuring range: No
  • Hold: Yes
  • Power factor: Nein
  • Direction of rotation: No
  • Min. / Max. Measurement: No / No
  • Frequency measuring range: No
  • Temperature measuring range: No
  • Power measurement (active / apparent / reactive): No / No / No
  • Current measuring range AC/DC: 1 mA - 40 A / 1 mA - 40 A
  • Resolution current measurement AC/DC: 1 mA / 1 mA
  • Enclosure (mm): 25
  • Accuracy current measurement AC/DC: ±1 % / ±1 %
CHF 742.00
Delivery time upon request
U100D
Gossen Metrawatt
U100D
ENERGYSENS-ES8003, rated current 80 A, 3 consumers
CHF 199.00
Ready to ship in 5 to 10 business days
M281A
Gossen Metrawatt
M281A
METRACABLE TDR PRO TDR for length measurement and fault location
CHF 1,130.00
1 in stock. Ready to ship in 1 business day
Z110W
Gossen Metrawatt
Z110W
KS-NTS test lead set USA alligator clips, clamp hooks
CHF 147.00
Ready to ship in 5 to 10 business days
SYSKON P800
Gossen Metrawatt
SYSKON P800
DC power supply / constant, 800 W, 60 V / 40 A (K347A)
  • AC input: 115 V / 230 V
  • Autorange: No
  • Number of outputs: 1
  • Bidirectional: No
  • max. voltage (V): 60
  • Protective devices: OVP, OCP, OTP
  • max. Power (A): 40
  • Output power (W): 800
  • Interfaces: USB, RS232 optional: IEEE488
CHF 5,238.00
Ready to ship in 5 to 10 business days
M660C
Gossen Metrawatt
M660C
METRAFUSE FD PRO fuse identifier
CHF 238.00
Ready to ship in 5 to 10 business days
m540c
Gossen Metrawatt
m540c
Metriso 1000A, analogue insulation measuring device 1000V
CHF 1,094.00
Delivery time upon request
