Gossen Metrawatt GTZ3512000R0001 | Z3512 current probe, 4 mm, 1000 A 50 Hz, I-Out

Name: GTZ3512000R0001 | Z3512 current probe, 4 mm, 1000 A 50 Hz, I-Out
Brand: Gossen Metrawatt
SKU: GTZ3512000R0001
Price: 377.0 CHF
Availability: BackOrder

Manufacturer number: GTZ3512000R0001

Ready to ship in 5 to 10 business days

CHF 377.00

plus VAT. CHF 407.54 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

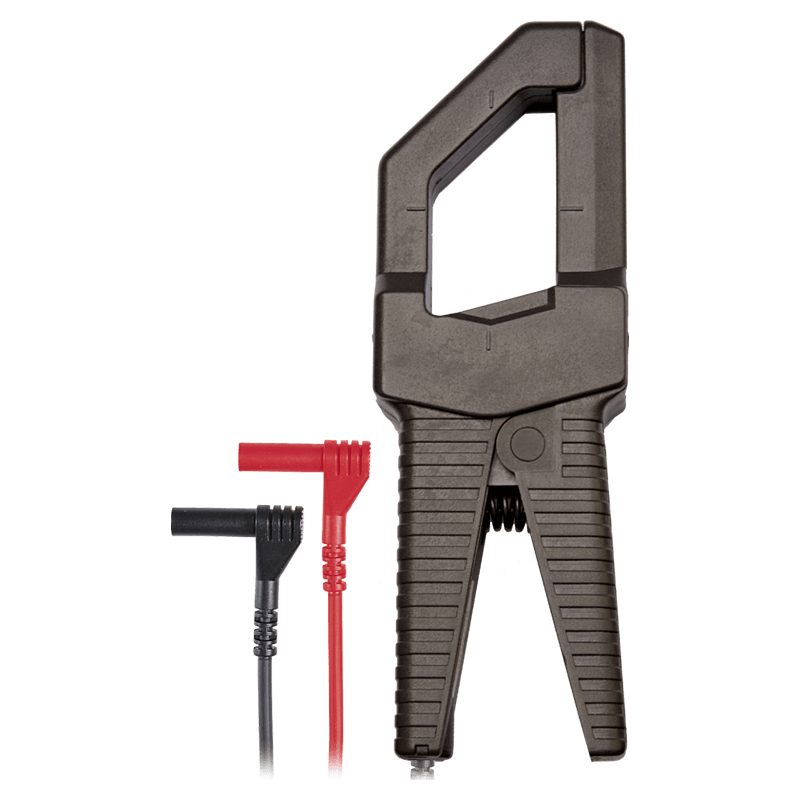

Gossen Metrawatt Z3512 | AC clamp current transformer.

No disconnection of the circuit
no galvanic connection to the conductor
No overloading of the multimeter in the event of power surges in the network
Measuring range: 0.5 ... 1000 AAC
Transfer factor: 1mA / A
Frequency range 30 ... 45 ... 65Hz ... 5kHz
Self-deviation: 0.5% ... 0.7%
Conductor Ø 52mm
CAT III 600V
Suitable for multimeters from Gossen Metrawatt

Technical Data

Weight (kg):	0.74

Description

GTZ3512000R0001 | Z3512 current probe, 4 mm, 1000 A 50 Hz, I-Out

The current flowing in a conductor is measured simply and reliably using clamp-on current sensors and multimeters.
