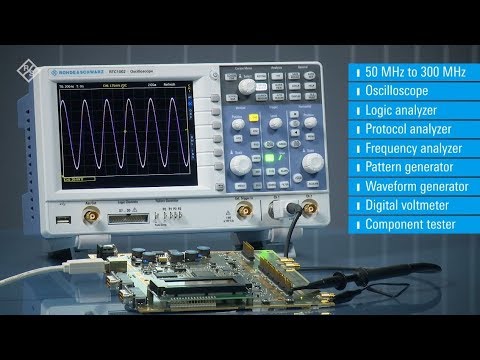

Rohde&Schwarz RTC1002 | Oscilloscope, 2 channel, USB, LAN, 50 MHz (opt. up to 300), 2 GSa/s, 1MPts (1335.7500.02)

Manufacturer number: 1335.7500.02

RTC1002
RTC1002
RTC1002
RTC1002
RTC1002
RTC1002
Series
Delivery time upon request

€1,030.00

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Rohde & Schwarz 1335.7500.02 | RTC1002 oscilloscope, 2 channel, USB, LAN, 50 MHz (opt. Up to 300), 2 GSa / s, 1MPts

Technical Data

Documents & Downloads

Datasheet
1335.7500P02
pdf | 0.92 MB
Brochure
1335.7500P02
pdf | 2.65 MB
Userguide
pdf | 5.51 MB
Start guide
pdf | 3.23 MB

Description

RTC1002 | Oscilloscope, 2 channel, USB, LAN, 50 MHz (opt. up to 300), 2 GSa/s, 1MPts (1335.7500.02)

The RTC1000 compact digital oscilloscope is available with bandwidths up to 300 MHz (upgrade) and is characterized by a high waveform update rate and vertical sensitivity. The very quiet device offers a sampling rate of 1 Gsample / s with a memory depth of 1 Msample. Hardware-supported signal triggering and decoding with the most common protocols (I²C, SPI, UART, CAN or LIN) is integrated in the RTC1000 for communication between embedded systems and the environment. This option can be activated at any time by purchasing vouchers. The integrated pattern generator, which generates protocol telegrams with speeds of up to 50 Mbit / s, is of interest to embedded users. This gives developers the opportunity to freely program individual signal patterns in addition to predefined messages for the supported serial protocols. A built-in, three-digit digital voltmeter makes work easier for service technicians in particular. With the RTC1000, voltage measurements can be carried out on both analog channels with two measured values at the same time. A function generator that generates various types of signals with frequencies up to 50 kHz is of interest for education. Pupils, trainees or students learn all measuring tasks on these basic types. In "Education Mode", the convenience functions can be switched off. Thanks to the 128 k measuring points, the RTC1000 keeps up with its analysis functions in the frequency domain with significantly larger oscilloscopes. The display of the time signal, measurement window and analysis area of the FFT as well as the result on a screen facilitates measurement of the spectra.

Lieferumfang

Power cord, printed operating instructions, one probe per channel
  • 3 year guarantee

    • Accessoires

    RTC-K2
    Rohde&Schwarz
    RTC-K2
    UART/RS-232/RS-422/RS-485 trigger/decode option, for oscilloscopes RTC1000 (1335.7246.03)
    Delivery time upon request
    €200.00
    RTC-B222
    Rohde&Schwarz
    RTC-B222
    Bandwidth upgrade to 200 MHz for oscilloscope RTC1002 / retrofit (1335.7275.03)
    Delivery time upon request
    €810.00
    RTC-K3
    Rohde&Schwarz
    RTC-K3
    CAN/LIN trigger/decode option, for oscilloscopes RTC1000 (1335.7252.03)
    Delivery time upon request
    €200.00
    RTC-B6
    Rohde&Schwarz
    RTC-B6
    Function generator option, for oscilloscopes RTC1000 (1335.7298.03)
    Delivery time upon request
    €200.00
    RTC-B220
    Rohde&Schwarz
    RTC-B220
    Bandwidth upgrade to 70 MHz for oscilloscope RTC1002 / retrofit (1335.7300.03)
    Delivery time upon request
    €120.00
    RTC-PK1 (1335.7330.03)
    Bundle
    Bundle
    Rohde&Schwarz
    RTC-PK1 (1335.7330.03)
    APP bundle with 4 trigger/analysis options at a special price, for oscilloscopes RTC1000
    Delivery time upon request
    €410.00
    RTC-K1
    Rohde&Schwarz
    RTC-K1
    I²C/SPI trigger/decode option, for oscilloscopes RTC1000 (1335.7230.03)
    Delivery time upon request
    €200.00
    RTC-B221
    Rohde&Schwarz
    RTC-B221
    Bandwidth upgrade to 100 MHz for oscilloscope RTC1002 / retrofit (1335.7317.03)
    Delivery time upon request
    €250.00
    RTC-Z3
    Rohde&Schwarz
    RTC-Z3
    Carrying case for oscilloscope RTC1002 (1333.0867.02)
    Delivery time upon request
    €230.00
    RTC-B1
    Rohde&Schwarz
    RTC-B1
    Mixed-signal extension / MSO option (upgrade), 8-channel, 300 MHz, for oscilloscopes RTC1000 (1335.7281.03)
    Delivery time upon request
    €500.00
