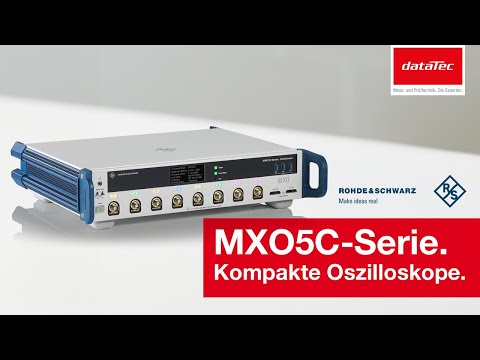

The Rohde & Schwarz MXO 5 C series compact oscilloscopes offer industry-leading technology that accelerates your understanding and testing of electronic systems. The MXO 5 C series is technically identical to the successful and proven Rohde & Schwarz MXO5 oscilloscopes. Thanks to their compact design of only 2U, the MXO5C series oscilloscopes can be easily installed in racks or stacked on top of each other. The MXO5C series includes both 4- and 8-channel models with bandwidths of up to 2 GHz, a maximum sampling rate of up to 5 GSa/s, an acquisition rate of up to 4.5 Mwfm/s and a vertical resolution of 12 bit ADC (18 bit in HD mode).
This allows you to capture all the details of a signal and rare events with exceptional precision. The oscilloscopes offer digital triggering on all channels, enabling precise isolation of even the smallest signal anomalies.
The MXO 5 C series, with its 45,000 FFTs per second, is suitable for viewing spectrum signals with unparalleled clarity in EMI and harmonic testing. With up to 99% real-time signal activity capture, the oscilloscopes significantly reduce the blind time between acquisitions and are therefore ideal for efficient debugging in various applications, from power conversion to automotive analysis.
The variant presented here is the 8-channel basic device with 100 MHz bandwidth. Expand your MXO 5C oscilloscope according to your requirements:
- Bandwidth upgrade to 200 MHz MXO5C-B802 (item no. 1802.3117.03)
- Bandwidth upgrade to 350 MHz MXO5C-B803 (item no. 1802.3100.03)
- Bandwidth upgrade to 500 MHz MXO5C-B805 (item no. 1802.3098.03)
- Bandwidth upgrade to 1 GHz MXO5C-B810 (item no. 1802.3052.03)
- Bandwidth upgrade to 2 GHz MXO5C-B820 (Article No. 1802.3075.03)
Product features:
- Leading sampling rate with up to 5 GSa/s
- Leading acquisition rate: 4.5 million acquisitions/second with 18 million waveforms/second
- Leading signal memory: 500 Mpts/channel as standard (optionally up to 1 Gpts)
- Vertical resolution of 12 bit ADC / 18 bit in HD mode
- 45,000 FFTs per second on up to four simultaneous spectra
- Intuitive operation on 15.6 inch Full HD touch screen and further optimized user interface
